- Page 1 EasyNode ARS2048B User Manual...
-
Page 2: Table Of Contents
Contents 1. Overview................03~04 1.1 Hardware................04 1.2 Software Applications..........04 2. Customer Support: ...............05 3. Technical Specs..............06 4. Front Panel................07 5. Rear Panel................08 6. Modes................08~09 6.1 DmxOut & RDM Mode..........08 6.2 DmxOut Mode...............09 6.3 DmxIn Mode..............09 7. Default Network Configuration.........09 8. Web Configuration..............10 9.Application guide............11~14 9.1 Network Configure............11 9.2 RDM Configure..............12... -
Page 3: Overview
Artnet, sACN, and RDM protocols. Bidirectional communication: Unlike most DMX controllers that only convert network signals into DMX signals, the Easynode ARS2048B can also convert 4-channel DMX signals into network signals. RDM support: Our Windows software allows you to modify RDM lighting properties with ease. -
Page 4: Hardware

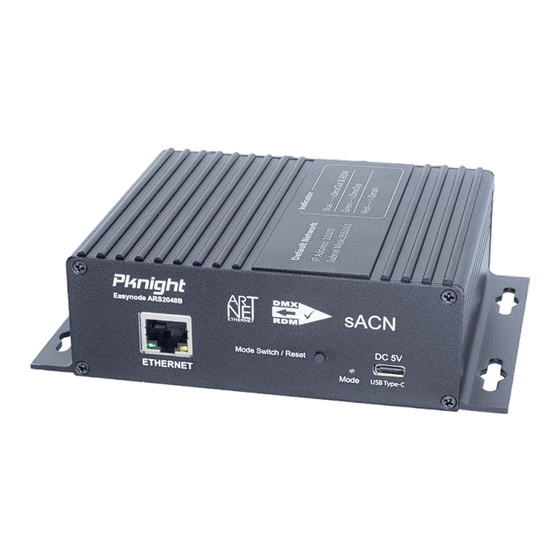

1.1 Hardware The Easynode ARS2048B is a compact and portable device that features 4 DMX interfaces with either 3-pin or 5-pin connectors, as well as a Type-C wired interface for power supply and an Ethernet port for network communication. On the front panel of the device, you can adjust the working mode and restore factory settings using a mode function button and an LED indicator light. -
Page 5: Customer Support
Our team is committed to responding within 24 hours and ensuring that you receive the help you need. Thank you for choosing Pknight Products. We are dedicated to providing exceptional service and enhancing your user experience. -
Page 6: Technical Specs
3. Technical Specs Power input: 5Vdc / 500ma supported signals or protocols: RDM / DMX512 ArtNet4 / sACN DMX channels: 4 universe / 2048 channels DMX connection: 3-pin XLR female Operating modes: DmxOut & RDM Mode DmxOut Mode DmxIn Mode Network Speed: 100M Working temperature:... -
Page 7: Front Panel
4. Front Panel RJ45 Port Mode Switch / Reset --Short press this button, and the controller will change the operating mode. --Restore factory setting:turn off the power, then press and hold the "RESET" button, turn on the power, and wait for 3 seconds the box will restore the factory setting. -
Page 8: Rear Panel
5. Rear Panel 4 * XLR Female Ports 6. Modes 6.1 DmxOut & RDM Mode Indicator light color: Blue I n D m x O u t & R D M m o d e , t h e E a s y n o d e ARS2048B not only converts network signals (Artnet or sACN) into DMX signals, but also sends RDM signals to fixtures or systems that... -
Page 9: Dmxout Mode
6.2 DmxOut Mode Indicator light color: Green In DmxOut mode, the Easynode ARS2048B only converts network signals into DMX signals and does not send RDM signals. This helps to avoid potential interference caused by fixtures or systems that do not support RDM functionality receiving RDM signals. -
Page 10: Web Configuration
8. Web Configuration The default IP address of the Easynode ARS2048B is 2.0.0.10, and the subnet mask is 255.0.0.0. To configure the network settings of the Easynode ARS2048B, you can use a web browser and enter the device's IP address in the same local area network (LAN). -
Page 11: Application Guide
9.Application guide 9.1 Network Configure... -
Page 12: Rdm Configure
9.2 RDM Configure... -
Page 13: Dmx Console
9.3 DMX Console... -
Page 14: Dmx Live Viewer And Recorder
9.4 DMX Live Viewer and recorder... -
Page 15: Tutorial For Using The Application
10. Troubleshooting • Enable DHCP ? Yes, the Easynode ARS2048B supports DHCP. However, in order to use this feature, you will need to first configure it on the web page, as the product is set to use a static IP address by default. - Page 16 • where to download the application ? We recommend scanning the QR code on page 4 of the user manual or visiting https://qrco.de/Apps-for-Easynode-ARS2048B download the app. • why I can not find the node in app If you have confirmed that your computer and Easynode ARS2048B are located on the same local area network (LAN), but still cannot find the node in the app, it may be necessary to select the appropriate network interface in the "Network"...
