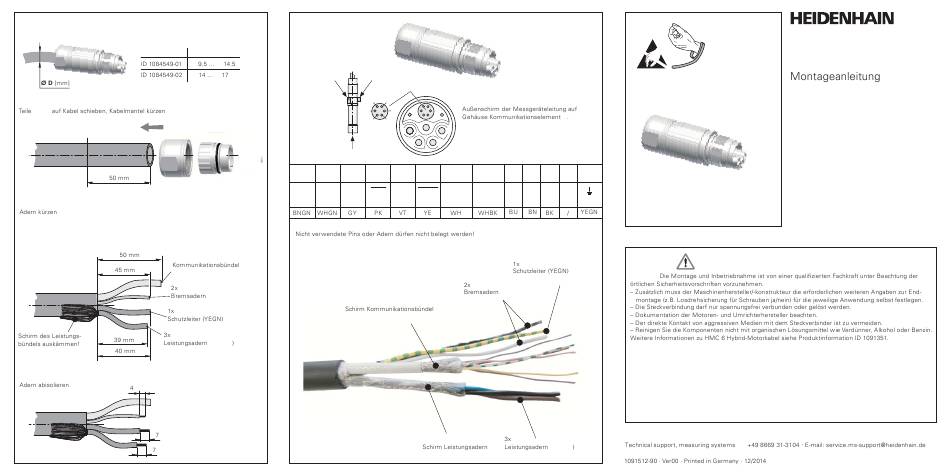

HEIDENHAIN HMC 6 Mounting Instructions

Vorbereitung des Kabels
Preparing the cable
¬
¬
1.
a), b),
Slide parts a), b), onto cable and shorten the cable sheathing
a)
2.
Shorten the wires
Communication bundle
Brake wires
Protective conductor (YEGN)
Comb out the shield of Power leads (U, V, W)
the power wire bundle!
3.
Strip the wires
Anschlussbelegung
Pin Layout
D
¬
¬
X
1
2
6
5 4
b)
X
1 2 3 4
U 0 V DATA DATA
P
Vacant pins or wires must not be used!
Shield communication element
(U, V, W
K
3
8 7
K
E
D A
External shield of encoder line on
communication element housing K.
C B
5 6 7 8 A B C D
CLOCK CLOCK BRAKE – BRAKE + U V W /
Protective conductor (YEGN)
Brake wires
(U, V, W
Shield power leads Power leads (U, V, W)
E
Warnhinweise
Warnings
Achtung:
Note: Mounting and commissioning is to be conducted by a qualified specialist under compliance with
local safety regulations.
– In addition to this, the machine manufacturer or designer himself must define the other data required for
final assembly (e.g. anti-rotation lock for screws required or not) for the respective application.
– Do not engage or disengage any connections while under power.
– Observe the motor and inverter manufacturers’ documentation.
– Avoid direct contact of aggressive media with the connector.
– Do not clean the components with organic solvents like thinners, alcohol or benzene.
For more information about the HMC 6 hybrid motor cable, refer to the Product Information ID 1091351.
DR. JOHANNES HEIDENHAIN GmbH
{
Mounting Instructions
HMC 6
Hybrid-Kupplung
Hybrid connector
ID 1084549-01
ID 1084549-02
12/2014
*I_1091512-90*
