Jefferson JEFIRSOL80W User Manual

INSTRUCTIONS.
• Plug Soldering Iron into a 230V outlet.
• Place Soldering Iron on metal stand (included).
• Allow Soldering Iron to warm to normal operating temperature (3-5 minutes).
• Hold tip of Soldering iron to the material to be soldered.
• Allow material to heat to a degree warm enough to melt solder.
• Touch solder to the material and let material absorb melted solder.
• Allow Soldering Iron to cool.
• Unplug soldering iron.
CAUTION.
• Use the soldering iron holder to avoid fires.
• Keep out of reach of children.
• Do not use if power cord appears to be damaged, as fires may occur.
• Use correct voltage only.
• Do not use near water or in humidity areas, as electric shock could occur.
• Insert plug into electrical outlet completely to ensure sufficient current.
• Tip may still be hot after use. Allow to cool sufficiently before touching
or storing, as fire could occur.
CIRCUIT DIAGRAM.
www.jeffersontools.com
USER GUIDE
v1.1 JEFIRSOL80W

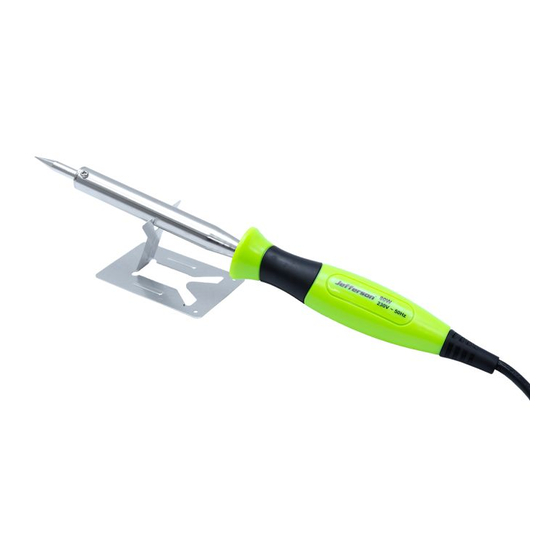

Jefferson 80W Soldering Iron
