Thank you for purchasing a JEFFERSON product. Manufactured to a high standard, this product will, if used
according to these instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE
WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. Safety
•
Ensure all workshop safety rules, regulations and conditions are complied with when using torque wrench.
•
Maintain the wrench in good condition and replace any damaged or worn parts. Use genuine parts only.
Non- authorised parts maybe dangerous and will invalidate the warranty.
•
The wrench is a precision tool, DO NOT abuse it. Maintain correct balance and footing. Ensure the floor is not
slippery and wear non-slip shoes.
•
Keep children and unauthorised persons away from the working area.
WARNING! DO NOT use the wrench if damaged or thought to be faulty. (Contact Customer Service)
•
DO NOT drop or throw the wrench.
•
DO NOT use wrench unless you have been instructed in its use by a qualified person.
•
DO NOT use any cleaner which might affect the high pressure grease with which the wrench is packed.
•
After use adjust to lowest torque setti ng (but not below), clean and store in a safe, dry, childproof location.

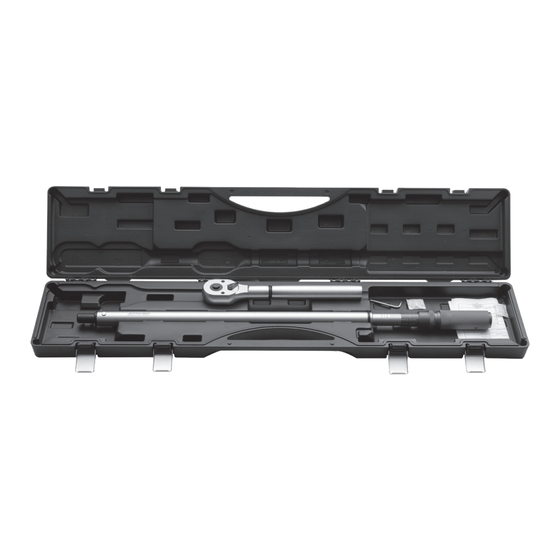

2. Introduction
Flip reverse Chrome Vanadium steel ratchet head with smooth
action mechanism.
Scales graduated in N.m, Kg.m. or lb.ft.
Calibration tolerance in accordance with BS EN ISO6789-1:2017.
Wrenches are individually tested to standards with ±4% accuracy
and each wrench is issued with an individually numbered test
certificate. Aluminium knurled handle for comfort and control.
4. Operation
4.1. Preparing To Set Torque (fig.1)
4.1.1. Release torque adjuster by sliding the collar
backwards. Set torque (see 4.2) and then lock
in place by sliding the collar forwards.
3. Specification
Item No:
Drive:
Range:(n.m)
Lenght:(mml)
fig.1
Unlock adjuster
www.jeffersontools.com

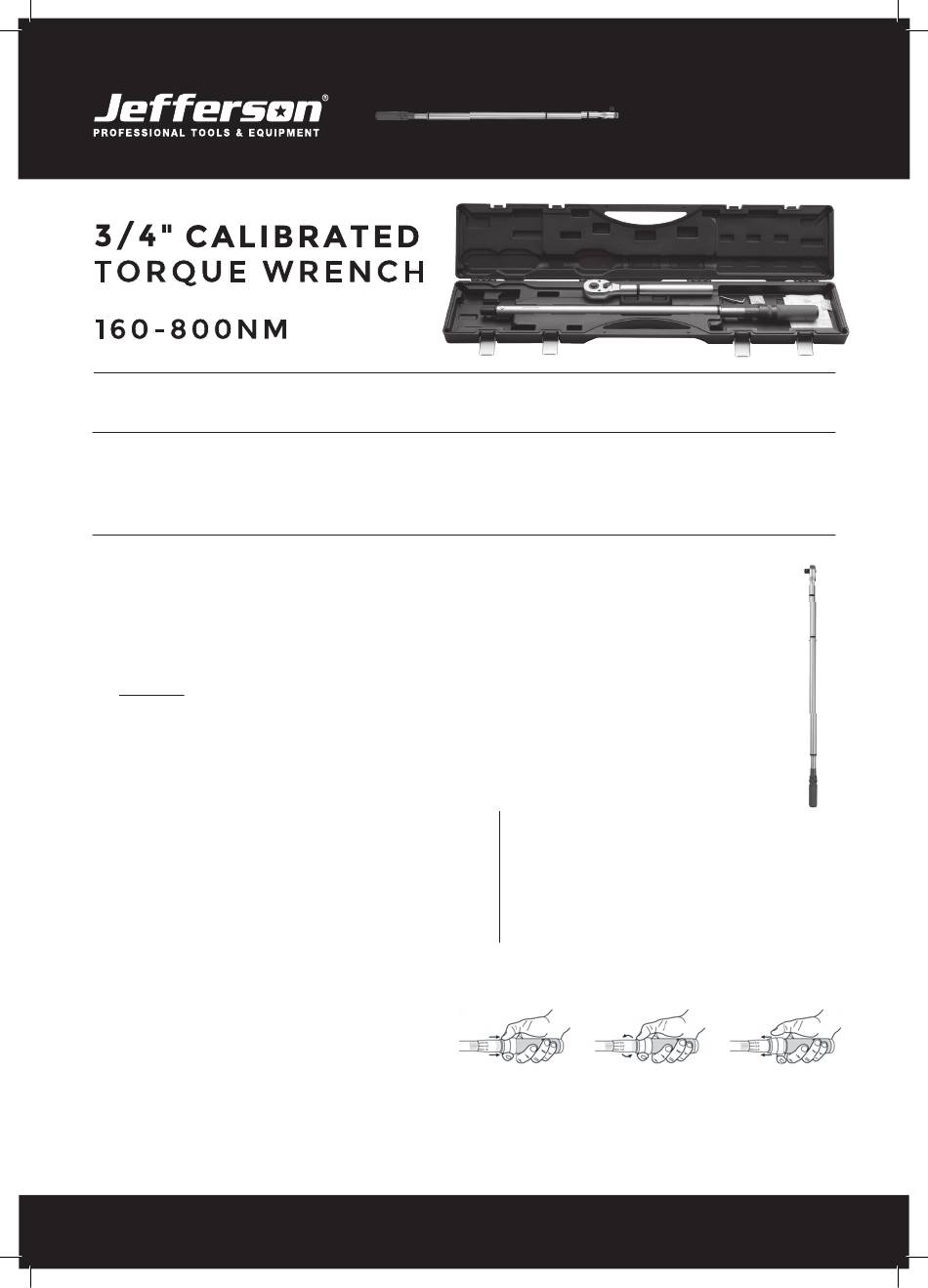

USER MANUAL
JEFTRQWRH3-4B
JEFTRQWRH3-4B
3/4"
160-800
1215
Set torque
Lock adjuster
v.1.1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jefferson JEFTRQWRH3-4B
Summary of Contents for Jefferson JEFTRQWRH3-4B
- Page 1 JEFTRQWRH3-4B Thank you for purchasing a JEFFERSON product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble free performance. IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &...
- Page 2 Important: No Liability is accepted for incorrect use of this product. Warranty: All JEFFERSON torque wrenches have been tested and their performance evaluated with industrial calibration devices after production, and then they are packed and the consumer can use this tool with confidence. Proof of which is required for any claim.
- Page 3 This Jefferson Declaration of Conformance is issued at the time of manufacture and its validity is open ended until the torque tool is used for the first time. Unless otherwise stipulated, a period of 12 months,or 5,000 cycles, whichever occurs first, may be taken as default values for the interval between calibration checks.
- Page 4 USER MANUAL v.1.1 JEFTRQWRH3-4B Jefferson Tools, 24 Lisgorgan Lane, Upperlands, BT46 5TE, Telephone: +44 (0)1244 646 048 (ROI) +353 (0)1473 0300 Email: enquiries@jeffersontools.com www.jeffersontools.com...
