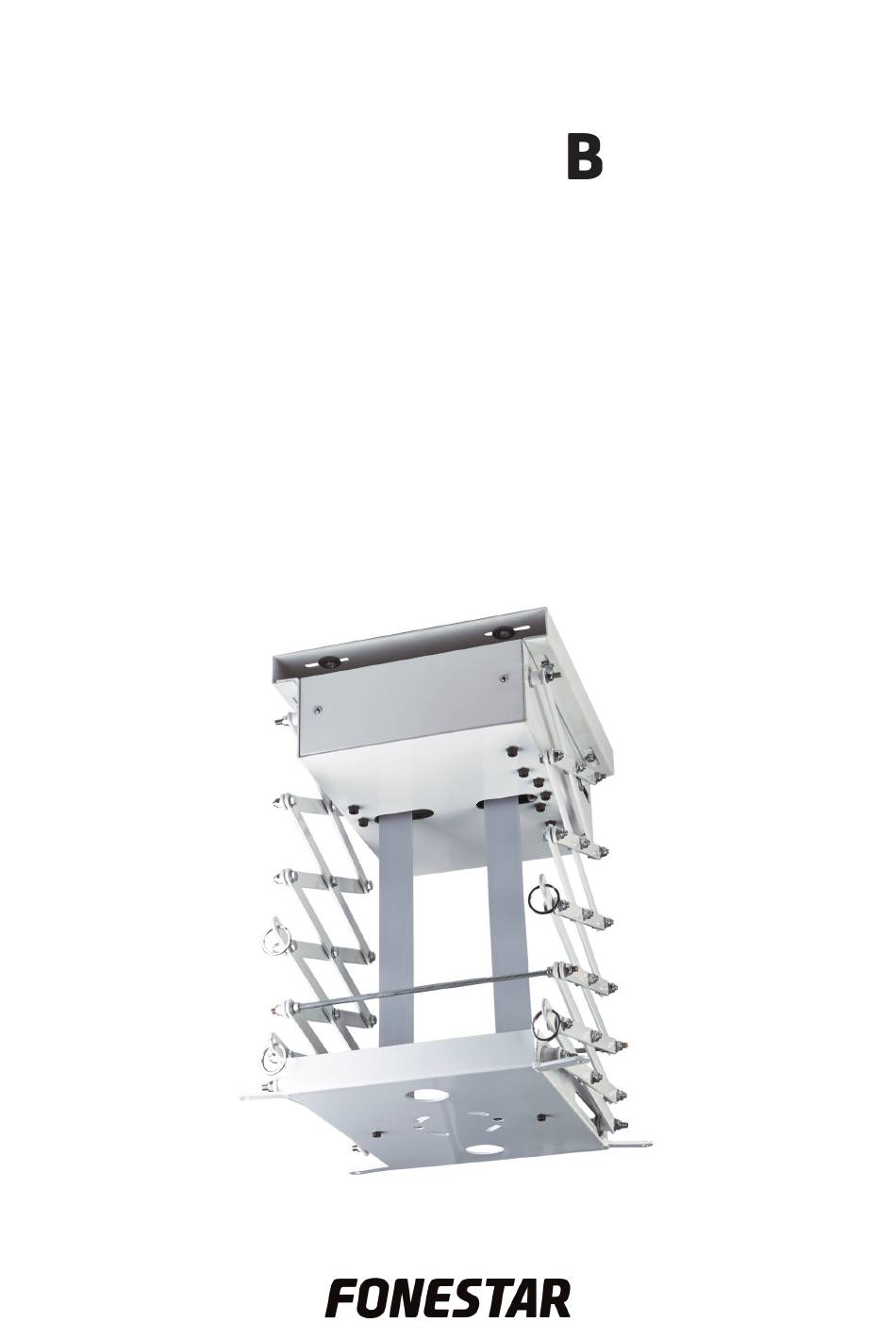

- Page 1 SPREL-1 ELECTRIC PROJECTOR LIFT CEILING MOUNT INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. - Page 4 DESCRIPTION - Electric projector lift ceiling mount. Double motor. - Wall receiver. Remote control. Ceiling closure plate. - Vertical tilt ±20º. - Side tilt ±15º. - Horizontally adjustable. - Maximum drop: 100 cm. - Colour: white. - Maximum borne weight: 20 kg. - Dimensions: Folded mount, distance to ceiling (without projector): 27 cm.
- Page 5 ASSEMBLING THE CEILING PLATE FIXING THE MOUNT TO THE CEILING PLATE 2.1.- - 5 -...
- Page 6 2.2.- 2.3.- Connect the electric mount to the power supply and unfold to make assembly easier. Use the remote control. - 6 -...
- Page 7 FIXING THE PROJECTOR TO THE MOUNT 4.- ASSEMBLING THE PROJECTOR IN THE MOUNT - 7 -...
- Page 8 OPTIONAL ASSEMBLY OF CEILING CLOSURE PLATE To install the SPREL-1B electric mount in a ceiling, use the ceiling closure plate of 50 x 50 cm provided. Bear in mind the minimum distance between the ceiling and the ceiling closure plate must be 50 cm.
- Page 9 3.- The mount must be firmly attached to the ceiling in order to support the maximum weight. FONESTAR does not hold itself responsible for the damage or breakages caused by the mount falling from the ceiling due to the ceiling being in bad conditions, the mount being badly installed or being used incorrectly.
-
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS SPREL-1B CHARACTERISTICS Electric projector lift ceiling mount. Double motor. Remote control for manoeuvring through double switch. Remote control. Ceiling closure plate. MOUNT ±20º vertical tilt ±15º side tilt Horizontally adjustable Maximum drop: 100 cm COLOUR Greyish white (RAL 9002) - Page 11 - 11 -...
