Contents:
BEFORE YOU BEGIN .................................................................................................................................................
PARTS LIST ..................................................................................................................................................................
HARDWARE LIST ........................................................................................................................................................
BASE ASSEMBLY
FIXED ..............................................................................................................................................................
CABINET ..........................................................................................................................................................
ELECTRIC ........................................................................................................................................................
tbcconsoles.com

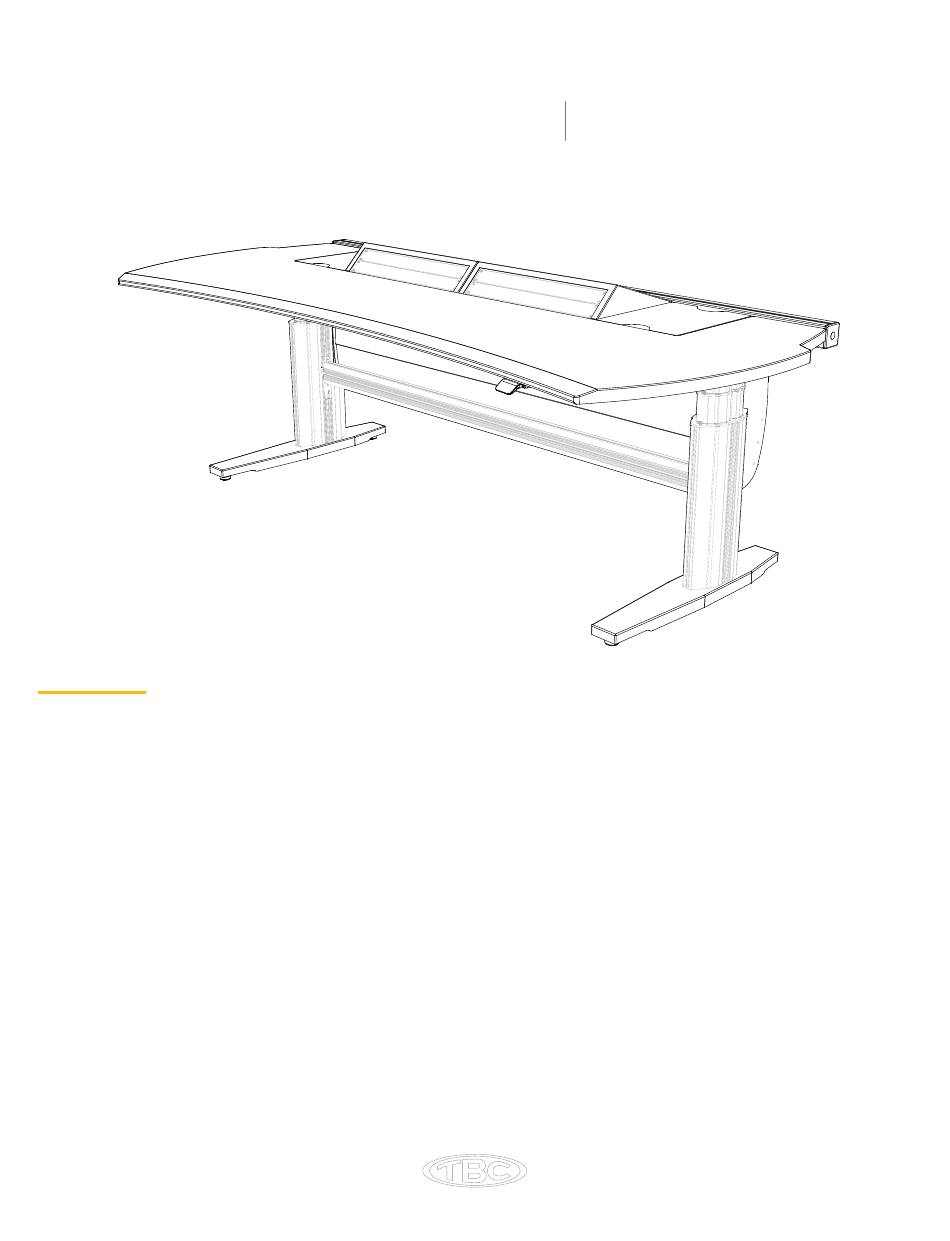

SmartTrac V3
|
170 Rodeo Drive, Edgewood, NY 11717
ASSEMBLY
INSTRUCTIONS
|
1-888-CONSOLE
PAGE 2
PAGE 3
PAGE 4
PAGE 5
PAGE 6
PAGE 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TBC SmartTrac V3
Summary of Contents for TBC SmartTrac V3
-
Page 1: Table Of Contents
SmartTrac V3 ASSEMBLY INSTRUCTIONS Contents: BEFORE YOU BEGIN ..............................PAGE 2 PARTS LIST .................................. PAGE 3 HARDWARE LIST ................................ PAGE 4 BASE ASSEMBLY FIXED ................................PAGE 5 CABINET ................................PAGE 6 ELECTRIC ................................ PAGE 7 CORE ...................................PAGE 8 REAR EXTRUSION / ST4 CORE / CPU CABINET ....................PAGE 10... -
Page 2: Before You Begin
Do not stand or sit on console. A level and sturdy foundation is required before console construction can begin. Incorrect installation could void your warranty. Have peace of mind by contacting a TBC certified technician. To locate one close to you, email support@tbcconsoles.com. -
Page 3: Parts List
Optional Rear Door Qty (1) Rear Trac - Qty (1) Countertop - Qty (1) Extension Cable - Qty (2) Power Cord - Qty (1) Control Box - Qty (1) Control Panel - Qty (1) TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 3... -
Page 4: Hardware List
Plastic Cable Tie Height Adjustable Only 2 & 3 Bay - Qty (1) 2 Bay - Qty (7) Qty (4) 3 Bay - Qty (9) 4 Bay - Qty (2) 4 Bay - Qty (11) PAGE 4 TBC Consoles support@tbcconsoles.com 1-888-CONSOLE... -
Page 5: Fixed
Attach the crossbar to the legs by sliding the crossbar onto the pre- installed hook brackets located in the legs. Loosely affix two [BB] screws on each leg but DO NOT YET TIGHTEN THESE BOLTS. 5/16-18 x 5/8” Button Head Screw (2 per side) TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 5... -
Page 6: Cabinet
Align the crossbar plate with the threaded inserts in the base cabinet side panel and affix using 2 [BB] button head screws. 5/16-18 x 5/8” Button Head Screw (2 per side) **NOTE: Base comes preassembled with casters or levelers. PAGE 6 TBC Consoles support@tbcconsoles.com 1-888-CONSOLE... -
Page 7: Electric
Attach the crossbar to the legs by sliding the crossbar onto the pre-installed hook brackets located in the legs. Loosely affix [BB] screws on each leg. DO NOT YET TIGHTEN THESE BOLTS. 5/16-18 x 5/8” Screw Button Head (2 per side) TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 7... -
Page 8: Core
Repeat this step for the other arm. Mini Core 1/4-20 x 1/4” Button Head Screw (2 per side) Attach the Core to the Countertop Support Arms using two [DD] screws per Arm (E). Repeat this step for the other arm. PAGE 8 TBC Consoles support@tbcconsoles.com 1-888-CONSOLE... - Page 9 [Q] to the core and affix using four [EE] screws. 1/4 - 20 x 3/8” Screw Button Head (2 per side) **NOTE: Attach SmartTrac Mini Core using the same steps as the Full Core. TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 9...
-
Page 10: Rear Extrusion / St4 Core / Cpu Cabinet
[CC] screw per side. CPU Cabinet 5/16-18 x 1” Screw Button Head (3 total) Attach the rear Trac [J] to the base cabinet using three [NN] screws. At this point tighten the crossbar screws. PAGE 10 TBC Consoles support@tbcconsoles.com 1-888-CONSOLE... -
Page 11: Base Cabinet
Low Profile Screw (10 Total) BASE CABINET Using 4 [AA] screws, fasten countertop [K] to the base cabinet at all four premounted top interior brackets as shown below. 1/4-20 x 3/4” Low Profile Screw (10 Total) TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 11... -
Page 12: Wiring Diagram
Route the (left) leg cable through the grommet in the side of the core and plug it into the extension cable. Next, route this cable along the rear of the countertop and plug it into Port 2 of the control box. Plug the power cord (M) into the control box. PAGE 12 TBC Consoles support@tbcconsoles.com 1-888-CONSOLE... -
Page 13: Rear Access Panel / Front Door / Turret, Infill & Drop Well
Place the front door on the front of the core by hooking the upper lip of the door on the 2 hinge posts as shown. TURRETS / MODULAR COMPONENTS ( Op ti o n al) Place the turrets, infills, or drop wells in position, as shown. TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 13... -
Page 14: Cable Chain Attachment
Qty (2) Qty (2) Step 2 Remove Step 3 countertop support arm [BB] Shroud, with bolts and attach installed cable chain, cable chain arm magnetically attaches bracket using (2) to mounting plate. [BB] bolts. PAGE 14 TBC Consoles support@tbcconsoles.com 1-888-CONSOLE... -
Page 15: Internal Device Rack / Initialization / Common Error Codes
Channel 2 Channel 2 is missing Disconnection Check Channel 2 cable missing connections The error codes listed above are the most common. A complete list of error codes is found by following the QR code: TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 15... - Page 16 All specifications and other information contained in this installation guide are based on the latest product information available at the time of printing. TBC Consoles is dedicated to product improvement and therefore reserves the right to make changes to the specifications of this and other products.
