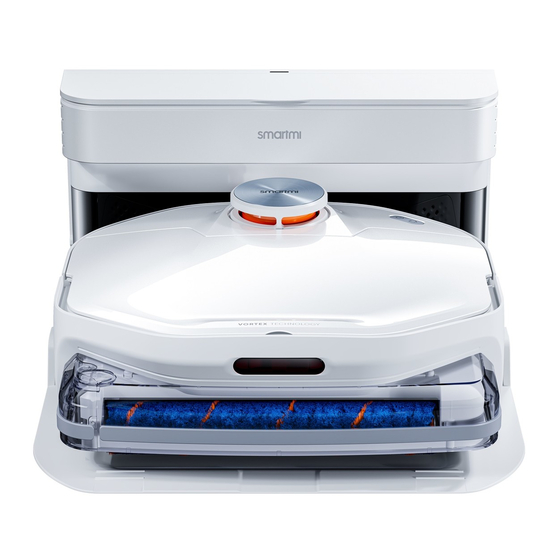

- Page 1 智米售后技术 Smartmi VortexWave Robot Vacuum Cleaner Function test guidance...
- Page 2 Establish functional testing standards for products to ensure that products meet the requirements of the company and related regulations 2. Applicable Products Smartmi VortexWave Robot Vacuum Cleaner 3. Scope of application Applicable to Smartmi Repair Center, Spare Parts Center and other Smartmi Authorized Service Centers...
- Page 3 智米售后技术 4. product description host...
- Page 4 智米售后技术 4. product description charging stand...
-
Page 5: Power On / Off Test
智米售后技术 5. Test items and standards Power On / Off Test Power-on test : In the power- off state, press and hold the 3S power button, the scrubbing robot voice broadcasts "Start-up in process: Please do not operate the robot", the power and recharge indicators are green breathing, the lidar rotates, and the scrubbing robot voice broadcasts after the boot is completed. - Page 6 智米售后技术 5. Test items and standards global clean test scrubbing robot on the charging base , press the power button shortly after turning it on, the scrubbing robot will drive out of the self-cleaning tray of the charging base, turn in a circle (one and a half) for positioning and identify whether it is in the mapped area (the first meeting Build the map first, in a counterclockwise...
- Page 7 智米售后技术 5. Test items and standards Self-cleaning / air- drying test In the charging state of the charging base , short press the robot panel key, the robot voice broadcasts "Start a self-cleaning task" to enter the self-cleaning mode, the robot sprays water to clean the roller brush, after the self-cleaning is completed, the voice broadcast "self-cleaning task has been completed, start charging and rolling brush air-drying task, please clean...
- Page 8 智米售后技术 5. Test items and standards Charging stand air-dry test roller brush is correctly placed in the charging stand roller brush recovery shell, the outside of the charging stand fan feels a breeze blowing out . After the roller brush is taken out , the outside breeze disappears...
- Page 9 智米售后技术 5. Test items and standards Recharge function test Short press the robot panel key / trigger the Mijia APP recharge button , the machine enters the recharge mode , searches for the location of the charging stand , and returns to the location of charging pile according to the map;...
- Page 10 智米售后技术 5. Test items and standards drive wheel test robot starts cleaning mode , the robot moves normally. If the robot cannot move normally, is judged to be defective.
- Page 11 智米售后技术 5. Test items and standards Earth Detection Test (Cliff Sensor) In any working mode, the machine cannot drop steps higher than 80mm . The cliff sensor on the testing machine will be triggered, and the robot will automatically avoid it. If it is inconsistent with the above phenomenon, it will be judged that the product is defective.
- Page 12 智米售后技术 5. Test items and standards front crash test robot starts the cleaning mode , use a fixed shield to block the robot's forward collision, and the robot will avoid it after collision. If the robot does not avoid it, the product is judged to be defective...
-
Page 13: Ground Test
智米售后技术 5. Test items and standards ground test robot is powered on and starts the cleaning mode , during operation, pick up the robot, the roller power indicator is brush stops rotating, the always red, the recharge indicator is off, and the voice broadcasts "The robot is off the ground, if you need to turn the robot,... - Page 14 智米售后技术 5. Test items and standards noise test Listen to the sound at the same time as the function test to ensure that the machine has no abnormal sound. If the machine has abnormal sound, it is judged that the product is defective.
- Page 15 . Click " + " in the upper right corner of the "Device" interface, click "Add Device", and select "Cleaning Appliances" - " Sweeping Robot" - " Smartmi Smart Floor Scrubber " in the device list to connect. d . After the machine prompts "connection is successful", click the "...
- Page 16 智米售后技术 5. Test items and standards Water leakage problem: Dense water droplets remain after the robot cleans the path Troubleshoot information : 1. Add clean water to the water tank and observe whether there is water leakage at the bottom of the water tank.
- Page 17 智米售后技术 5. Test items and standards Fan abnormal: The robot starts the cleaning task and announces the abnormality of the fan air duct fan inlet Troubleshoot information : 1. Is the firmware up to date ? 2. Restart the robot 3.
- Page 18 智米售后技术 5. Test items and standards Path exception: Abnormal mapping, abnormal cleaning path normal abnormal Troubleshoot information : 1. Product SN 2 , along the wall cleaning route / bow or Y- shaped cleaning route, as shown in the picture 3.
- Page 19 智米售后技术 thanks...
