TR979M8CS
USER
MANUAL
EN
User Manual
Tumble Dryer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR979M8CS and is the answer not in the manual?

Questions and answers

Related Manuals for AEG TR979M8CS

Summary of Contents for AEG TR979M8CS

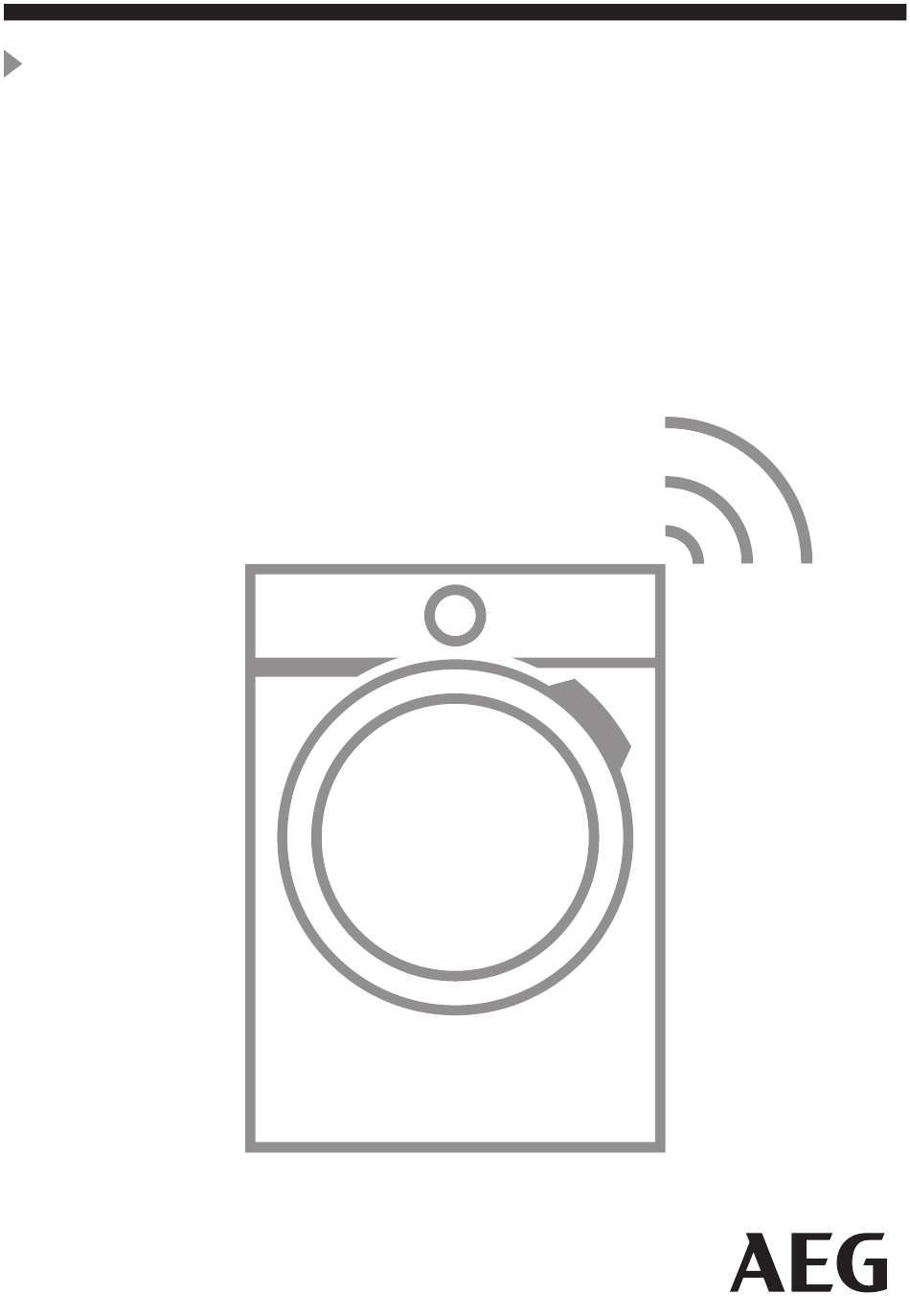

  • Page 1 TR979M8CS User Manual Tumble Dryer USER MANUAL...

  • Page 2: Table Of Contents

    FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
  • Page 3 My AEG Care app ENGLISH...

  • Page 4: Safety Information

    SAFETY INFORMATION Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

  • Page 5: General Safety

    • Keep children and pets away from the appliance when the door is open. • If the appliance has a child safety device, it should be activated. • Children shall not carry out cleaning and user maintenance of the appliance without supervision. 1.2 General Safety •...
  • Page 6 • Connect the mains plug to the mains socket only at the end of the installation process. Make sure that the mains plug is accessible after installation. • Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of unwanted gases into the room from appliances burning gas or other fuels, including open fires.

  • Page 7: Safety Instructions

    washed in hot water with an extra amount of detergent before being dried in the tumble dryer. • Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

  • Page 8: Internal Lighting

    • Do not pull the mains cable to disconnect burns! Take care when removing the the appliance. Always pull the mains plug. laundry. • Do not touch the mains cable or the mains • Be careful when interrupting the steam plug with wet hands.
  • Page 9 2.7 Service These lamps are intended to withstand extreme physical conditions in household • To repair the appliance contact the appliances, such as temperature, Authorised Service Centre. Use original vibration, humidity, or are intended to spare parts only. signal information about the operational •...

  • Page 10: Product Description

    3. PRODUCT DESCRIPTION Water container Condenser cover Control panel Adjustable feet Internal lighting Water re-circulation filter Appliance door Filter For ease of loading laundry or ease of Rating plate and QR Code installation the door is reversible (see the Airflow slots separate leaflet).

  • Page 11: Technical Data

    Get usage advice, troubleshooting, service and repair information (also available at aeg.com/ support ) • Buy accessories, Consumable and Original Spare parts for you appliance (also available at aeg.com/ shop ) 3.1 Electrical connection The power supply cable must be easily accessible after installing the appliance.

  • Page 12: Control Panel

    Acoustic airborne noise emission for the drying cycle of 63 dB(A) Eco programme at maximum load Total power 1600 W Type of use Household Allowed ambient temperature + 5°C to + 35°C Level of protection against ingress of solid particles and IPX4 moisture ensured by the protective cover, except where the low voltage equipment has no protection against...
  • Page 13 Symbol on the display Symbol description cycle time indication maximum load finish in selection (up to 24h) wireless connection remote control Check APP notification + Anti-kreuk option on child lock on laundry dryness: iron dry, cupboard dry, extra dry Droogtijd option on drain the water container indicator: clean the filter...

  • Page 14: Wi-Fi - Connectivity Setup

    Symbol on the display Symbol description cooling phase indicator: crease guard phase indicator: steam action phase indicator: Klaar over option on ProSense indicator indicator: maximum load exceeded WI-FI - CONNECTIVITY SETUP 6.1 QR code on rating plate This chapter describes how to connect the smart appliance to the Wi-Fi network and to link it to a mobile device.

  • Page 15: Wireless Connection Configuration

    1. Go to the App Store on your smart device see chapter "QR code or scan QR code ( on rating plate" ). Appliance stores last connection 2. Download and install our app. configuration. To use wireless features of 3. Make sure you started a Wi-fi connection the appliance the wireless connection in the dryer.

  • Page 16: Over-The-Air Update

    During the update, the appliance shows in the display. If you set a programme via App and it The appliance will be usable again at the end does not match with the knob position, of the update, without any notification about text appears alternating with successful update.
  • Page 17 Sportswear Curtains Denim Training Gear Pillow Silk Down Jackets Towels Baby Soccer/Rugby Pet Hair Linen Skiing Gear Easy Iron Drying Rack Running Shoes Anti-Allergy 7.2 Programma's Load 1) Properties / Fabric mark 2) Programma's Designed for routine drying of what you wash MixDry 5,0 kg without sorting.
  • Page 18 Load 1) Properties / Fabric mark 2) Programma's Dries up to three bed linen sets at once. Mini‐ mises twists and tangles of large items to en‐ Beddengoed XL 4,5 kg sure every bed linen reaches a uniform dry‐ ness without wet spots. Maintains the functionality of outdoor fabrics made of technical textile and restores water 2,0 kg...

  • Page 19: Options

    Options Droogte‐ + Anti- Stoom Programma's 1) Droogtijd Stil graad kreuk Fijne was 3kg Snel Beddengoed XL Outdoor Hygiëne Dekbed Opfrissen Aside from the programme, you can set one or more options at the same time. Touch Stoom option to select steam level 1,2,3 Set by default See chapter OPTIONS: Droogtijd on Wol programme 8.

  • Page 20: Favourite Programmes

    3. Touch and hold down the Droogtijd and + Anti-kreuk buttons at the same time. TIME DRYING RECOMMENDATION One of the symbols appears on the display: 10 - 40 additional drying to improve dryness af‐ - Maximum dryness ter previous drying cycle. - Extra dryness full drying of the small laundry loads up >...

  • Page 21: Settings

    Wi-Fi to available on Cloud. the AEG Cloud, as well as to your tumble dryer. In order to use the SyncDry function, the AEG tumble dryer and washing machine must be connected to the same home network and paired with our app.

  • Page 22: Factory Defaults

    by 76. This value is displayed with a The water container indicator: is off and sequence of two digits at a time: the first the symbol appears - the water two digits indicate thousands and container indicator is permanently hundreds, the second two digits indicate deactivated tens and units.
  • Page 23 10.1 How to fill water container for steam system CAUTION! Use only distilled or demineralized water. Always when the container is empty the indicator is on and you cannot start the steam programmes. Water container for steam system is automatically refilled if you dry with standard and steam programmes.

  • Page 24: Before First Use

    Load 1) Programma's Properties Helps to remove the creases from the synthetics pieces of clothing. Programme duration is automatically adjusted to dry the load up to 2,0 kg the optimal humidity level for steam action. Frequently it is not nec‐ Synthetica essary to iron the clothes after steam programme.
  • Page 25 Before you use the appliance to dry items: Rotating drum. • Clean the tumble dryer drum with a moist cloth. • Start a 1 hour programme with moist laundry. • Fill up the steam water container before using a steam programme for the first time Steam function - How to (see chapter on "...

  • Page 26: Daily Use

    12. DAILY USE 12.1 Preparing the laundry • Do not exceed the maximum load stated in the programmes chapter or shown on the display. • Dry only the laundry that is suitable for Loading the drum up to the maximum tumble drying.
  • Page 27 12.2 Loading the laundry When the appliance goes in low power CAUTION! mode, the display and icons turn off. You Ensure the laundry is not trapped can reactivate it by pressing Aan/Uit between the appliance door and the button. rubber seal. If Wi-Fi is on and remote control is enabled, the remote start icon...

  • Page 28: Starting A Program

    12.8 Starting a program To activate or deactivate an option touch the relevant button. To start the program: its symbol appears on the display or the led above the corresponding button lights up. Touch the Start/Pauze button. The appliance starts and the LED above the 12.7 Child lock option button stops flashing and stays on.

  • Page 29: Program Change

    hours.) In case of drum overload, the maximum declared load indicator comes on again with the indicator blinking. In this case, during these 30 seconds, it is possible to open the door and remove the exceeding garments. Once removed, touch the Start/Pauze button to start the programme again.

  • Page 30: Hints And Tips

    Possible causes of unsatisfactory drying Touch and hold down Stoom button by results: around 3 seconds. The light inside the drum is on. • Inadequate default dryness level settings. Adjustment of the target final See chapter 12.14 Possible causes of moisture unsatisfactory drying results: •...

  • Page 31: Cleaning The Filter

    Cleaning the condenser When the indicator flashes Clean the steam system filter When the indicator flashes Cleaning the drum Every two months Cleaning the control panel and housing Every two months Cleaning the airflow slots Every two months The following paragraphs explain how you should clean each part. 14.2 Removing the foreign items Make sure that the pockets are empty and all loose elements are tied up before...

  • Page 32: Cleaning The Condenser

    2. Pull the plastic connection out and drain the water into a basin or equivalent receptacle. 3. Push the plastic connection back in and place the water container back into position. Throw the lint in the dustbin. 4. To continue the programme press the 4.
  • Page 33 2. Open the condenser cover. 6. Close the condenser lid. 7. Turn the lever until it clicks into position. 8. Put the filter back. 14.6 Cleaning the steam system filter CAUTION! Do not use the steam programmes without the steam system filter or with 3.

  • Page 34: Cleaning The Drum

    4. Use a moist hand to clean the filter. 4. Take the pipe placed on the left wall of the compartment. Open the cap to drain the water. 5. Put the filter inside the filter socket. 6. Put the water container. 14.7 How to drain the water from the steam system container The quality of the water in the container...

  • Page 35: Troubleshooting

    14.9 Cleaning the control panel and 14.10 Cleaning the airflow slots housing Use a vacuum cleaner to remove fluff from the airflow slots. Use a standard neutral soap detergent to clean the control panel and housing. Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth.
  • Page 36 15.2 Troubleshooting Problem Possible solution You cannot activate the appliance. Make sure that the mains plug is connected to the mains socket. Check fuse in fuse box (domestic installation). The programme does not start. Press Start/Pauze. Make sure that the appliance door is closed. Steam programme does not start.
  • Page 37 Problem Possible solution Ensure that the room temperature is higher than +5°C and lower than +35°C. Optimal room temperature is 18°C to 25°C. Set the Droogtijd or the extra droog programme. The App cannot connect to the dryer. Check if your smart device is connected to the wireless network.

  • Page 38: Consumption Values

    16. CONSUMPTION VALUES 16.1 Introduction The user manual reports two different references for EU energy label and ecodesign regulations. • Reg. (EU) 932/2012 and Reg. (EU) 392/2012 valid up to 30 June 2025 is relate to the Energy efficiency classes from A+++ to D. •...
  • Page 39 Initial Energy con‐ Target final Load Spun at mois‐ Drying time Programme sumption Moisture (kg) (rpm) ture (h:mm) (kWh) 1) 2) 1000 3:19 1,68 1) 2) 1000 1:50 0,86 This is the reference programme used to assess the compliance with EU ecodesign and Energy label regula‐ tions, Reg.

  • Page 40: Environmental Concerns

    Initial Energy con‐ Target final Load Spun at mois‐ Drying time Programme sumption Moisture (kg) (rpm) ture (h:mm) (kWh) Synthetica 1200 0:51 0,36 12,0 strijkdroog 1200 2:12 1,49 17. ENVIRONMENTAL CONCERNS appliances marked with the symbol with Recycle materials with the symbol .
  • Page 44 My AEG Care app The software in this product contains components that are based on free and open source software. AEG gratefully acknowledges the contributions of the open software and robotics communities to the development project. To access the source code of these free and open source software components whose license conditions require publishing, and to see their full copyright information and applicable license terms, please visit: http://aeg.opensoftwarerepository.com (folder NIUS)
