AirScape BBCB-A-1-1 Installation Manual

This document is applicable to BBCB-A-1-1 Make-Up Air Controllers.
This document will take you through the upgrade to include the Heated Coil Box in
your MUA unit. The Heated Coil Box is designed to warm outside air before
introducing it into the home when outdoor temperatures are low.
Installation of the Heated Coil Box

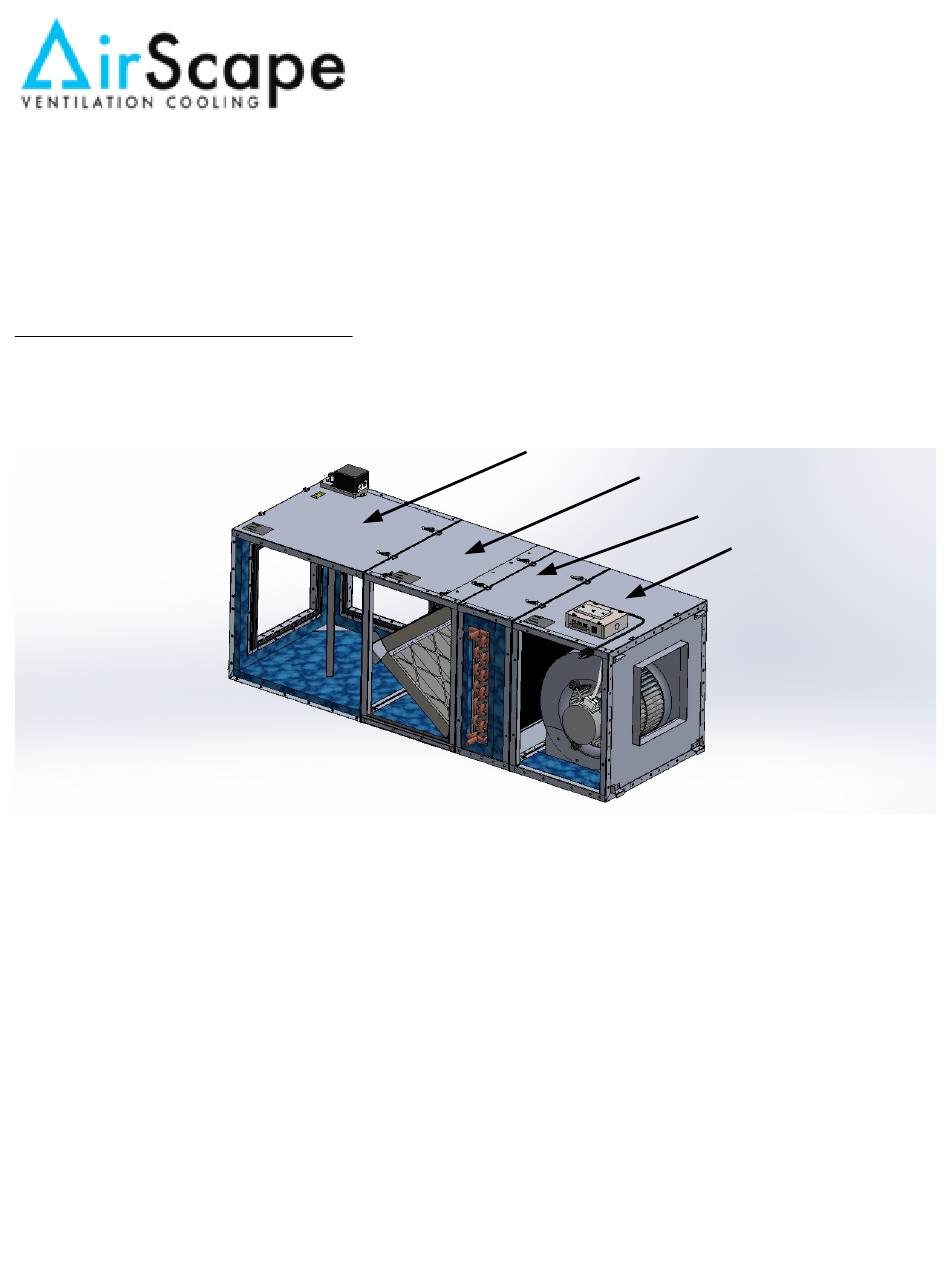

The Heated Coil Box must be installed between the Cabinet Fan and the Filter Box
of the MUA unit, as shown below.
MUA unit shown with doors open.
Your MUA unit configuration may differ.
If you are adding the Coil Box to an already installed MUA unit, be advised that
the unit will need to be disassembled and reassembled in order to properly fit the
Coil Box into place.
If you are installing the unit in a very cold environment, we suggest you use a
mixture of glycol and water to keep the Coil Box from freezing when not in use.
General Warning:
Setting up a hot water heating coil system may involve plumbing and controls
that are beyond the average skill set. If in doubt of any installation procedures or
if there are any safety or control concerns, contact Airscape at 866-448-4187 or
consult a professional. In particular, it is critical to avoid contaminating domestic
hot water systems.
Air Inlet Selector (AIS)
1
Heated Coil Box
CB Installation Guide
Filter Box (FB)
Coil Box (CB)
Cabinet Fan (CF)
