MESTAR ARES 1 Installation Manual

ARES 1 - IN-GROUND LUMINAIRE

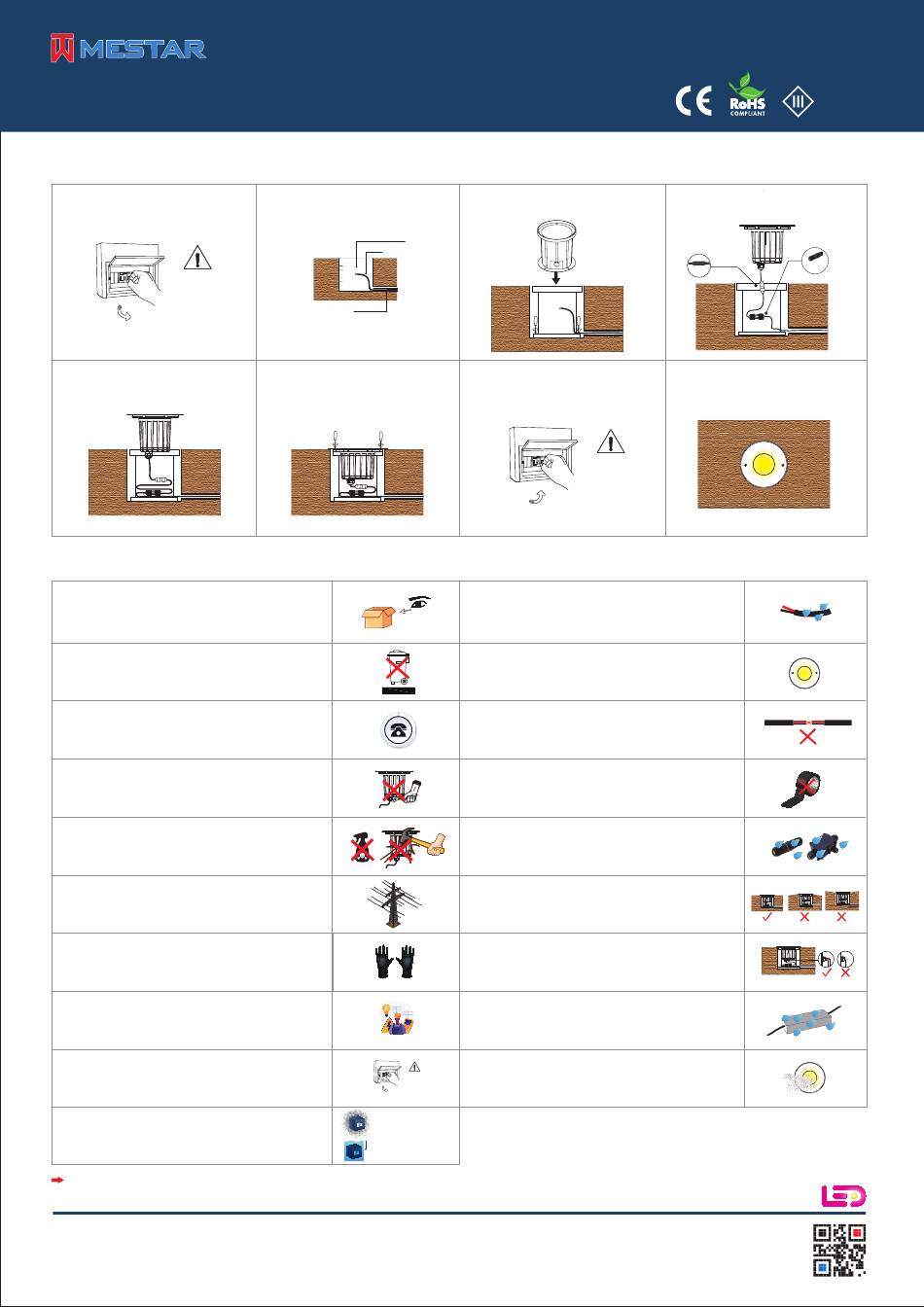

A. INSTALLATION
1. Turn off the power.
POWER
On
Off
5. Swaged cable in mounting sleeve.
*WARNING
1. Carefully unpack the carton. Check the contents to
ensure that all parts are present and have been
received in good condition.
2. If don't use, should be put in the right place to
avoid fire and explosion or causing environmental
pollution.
3. Contact the manufacturer if need help. Don't
install it if don't know the pieces of information.
4. Don't disassemble or change luminaires, LED driver.
5. Don't physical impact or use of chemicals that
deform the luminaires and affect the surface paint.
6. Install in accordance with national standards and
local electrical codes.
7. Use insulated gloves during product installation.
8. This products must be installed and maintained by
a qualified electrician.
9. Disconnect the power supply during installation.
10. The product must be installed in environment ≤IP67.
Users must follow the safety instructions, specifications and warning notes written in this manual. If don't follow it, we will not be responsible for the warranty.
We reserve the right to make technical and design changes.
THIEN MINH MECHANICAL - ELECTRIC JSC
Head office: MESTAR Building, No. 98/11 Ung Van Khiem Street, Ward 25, Binh Thanh District, Ho Chi Minh City, Vietnam
Tel: (84) 28.3899 4790 - Email: mestar@mestar.vn - Web: www.mestar.vn
2. Make a hole for mounting sleeve and
leave cable.
Hole for mounting sleeve
Cable
DC24V-
DC24V+
GND
DMX-
DMX+
Electrical conduit
DC voltage
(LED driver in cabinet)
6. Fix luminaires with mounting sleeve
by screws.
。
POWER
On
Off
Dust tight. No ingress
of dust
Temporary immersion
1m
in water
3. Put cable into mounting sleeve and
fix mounting sleeve with hole.
7. Turn on the power.
POWER
On
Off
11. All wires must be wrapped insulated rubber to ensure
safety and waterproof.
12. Check luminaire is fixed and secure after installation.
13. Do not let the poles of the wire touch each other.
14. Not use glue wrap electrical to wrap the cable.
15. Must use connector or junction box IP68 to connect
cable.
16. Make sure the installation surface is flat.
17. Minimum bend radius = Cable outside diameter x
Cable multiplier.
18. Make sure LED driver ≥IP67 or if LED driver ≤IP67
must put into placed in waterproof electrical cabinet.
19. Projects near sea should use optional luminaires
with high anti-corrosion and sea salt resistant paint.
INSTALLATION MANUAL
IP67
4. Connect cable of luminaires with
available cable in mounting sleeve by
connector.
water
IP68
IP67
stopper
8. Completed install.
