Unit Connection Technology FT0310 User Manual

Wi-fi weather station with 7-in-1 professional sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual-EN
Wi-Fi weather station
with 7-In-1 professional sensor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT0310 and is the answer not in the manual?

Questions and answers

Related Manuals for Unit Connection Technology FT0310

Summary of Contents for Unit Connection Technology FT0310

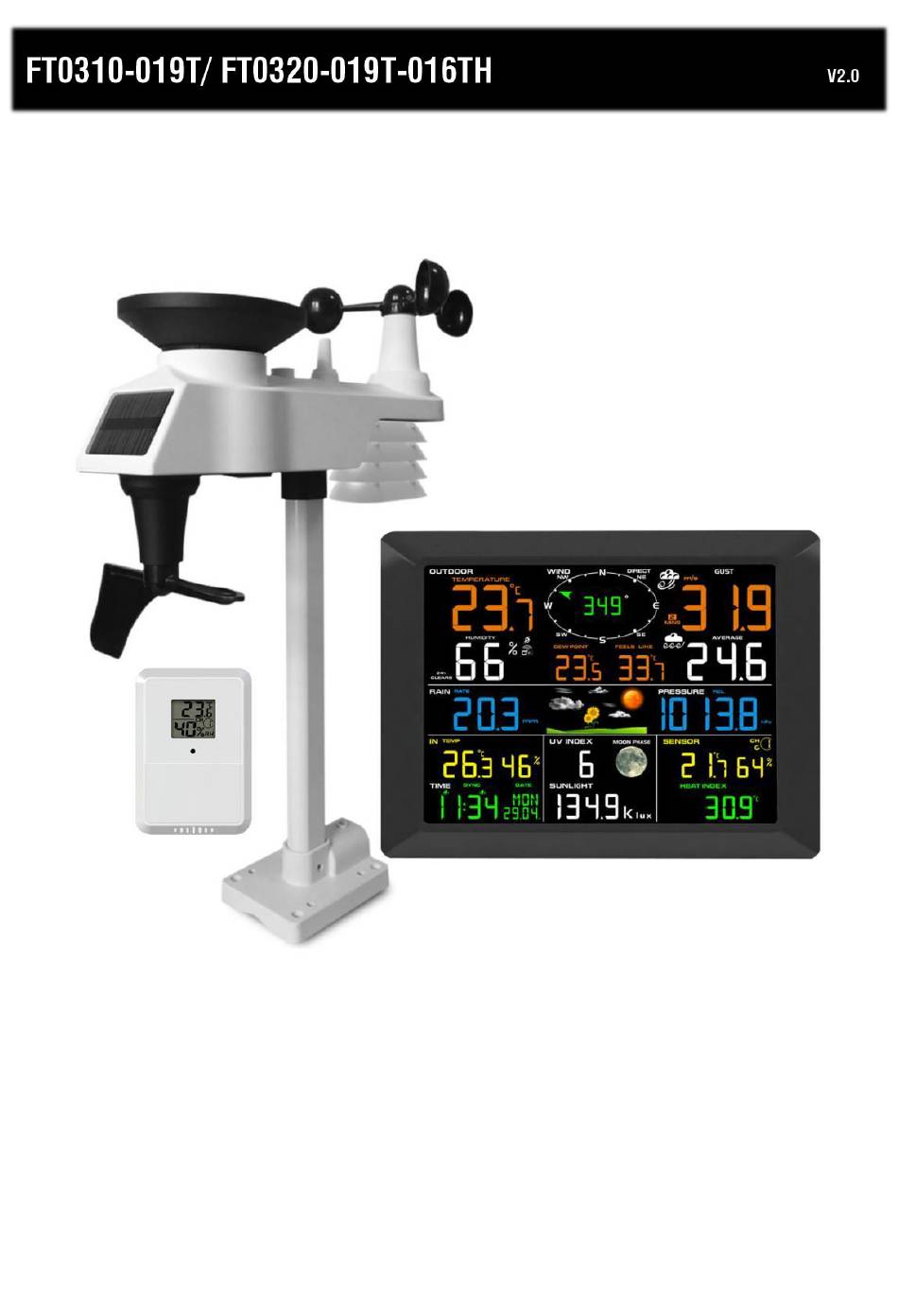

  • Page 1 User Manual-EN Wi-Fi weather station with 7-In-1 professional sensor...

  • Page 2: Table Of Contents

    FT0310-019T and FT0320-019T-016TH User Manual TABLE OF CONTENTS Precautions......................- 2 - Introduction......................- 3 - Display Console..................... - 4 - Wireless 7-In-1 Sensor..................- 6 - In Stallation And Setup ..................- 6 - Battery And Installation..................- 10 - Setting &...

  • Page 3: Precautions

    FT0310-019T and FT0320-019T-016TH User Manual PRECAUTIONS It is strongly recommended to keep and read the "User's Manual". The manufacturer and ● supplier accept no responsibility for any incorrect readings, lost exit data, or consequences resulting from inaccurate readings. This product should not be used for medical purposes or for publicity purposes.

  • Page 4: Introduction

    FT0310-019T and FT0320-019T-016TH User Manual INTRODUCTION Thank you for choosing the WI-FI Weather Station. The system collects and automatically uploads accurate, detailed weather data to the Weather Underground and Weathercloud websites, where you can freely access and upload weather data. The product offers great performance for professional weather observers or serious weather enthusiasts, as well as a wide range of options and sensors.

  • Page 5: Display Console

    FT0310-019T and FT0320-019T-016TH User Manual DISPLAY CONSOLE The display console layout is FT0310 shown in Figure 1 Figure 1 1. Outdoor temperature display 17. Indoor Dew point ICON 2. WIFI network 18. Indoor temperature and humidity display 3. Outdoor humidity display 19.
  • Page 6 FT0310-019T and FT0320-019T-016TH User Manual The display console layout is FT0320 shown in Figure 2 Figure 2 1. Outdoor temperature display 18. Sensor Heat index(heat index; dew point) 2. WIFI Network 19. Outdoor temperature and humidity display 3. Outdoor humidity display 20.

  • Page 7: Wireless 7-In-1 Sensor

    FT0310-019T and FT0320-019T-016TH User Manual WIRELESS 7-IN-1 SENSOR The following illustration shows the full segment for Thermo-Hygrometer,WIND,RAIN and UV INDEX sensor, as shown in Figure 2 and Figure 3. Figure 2 Figure 3 INSTALLATION AND SETUP INTEGRATED OUTDOOR SENSOR INSTALLATION Professional Wireless Weather Station can be used in both the Northern and Southern Hemispheres.

  • Page 8: Best Practices For Wireless Communication

    FT0310-019T and FT0320-019T-016TH User Manual Verify proper operating of the wind speed. Rotate the wind cups manually or with a constant ● speed fan. Verify the wind speed is not reading 0.0. Verify proper operation of in/outdoor temperature. Verify the indoor and outdoor temperature ●...
  • Page 9 FT0310-019T and FT0320-019T-016TH User Manual interference, barriers or walls) but typically you will get 100ft maximum under most real-world installations, which include passing through barriers or walls. Metal Barriers. Radio frequency will not pass through metal barriers such as aluminum siding. If you have metal siding, align the remote and console through a window to get a clear line of sight.
  • Page 10 FT0310-019T and FT0320-019T-016TH User Manual Note: Wind direction sensor has to be adjusted so that the directions on the sensor are matching with your real location. Permanent wind direction error（read approximately 180º）will be introduced when the wind direction sensor is not positioned correctly during installation.

  • Page 11: Battery And Installation

    FT0310-019T and FT0320-019T-016TH User Manual The sensor is water resistant, it is best to mount in a well protected area, such as under an eve. Use a screw or nail (not included) to affix the remote sensor to the wall, the sensor can also lay flat or on the Figure 6 table,as shown in Figure 6.
  • Page 12 FT0310-019T and FT0320-019T-016TH User Manual INSERT BATTERIES INTO THE TRANSMITTER. Locate the battery door on the Figure 8 transmitter, push and open the battery compartment, as show in Figure 8. Remove the battery door on the back of the sensor by removing the set screw, as shown in Figure 9.

  • Page 13: Dip Switch

    FT0310-019T and FT0320-019T-016TH User Manual Verify the correct channel number (CH) and temperature units of measure (°F vs. °C) are on the display, as shown in Figure 1) Temperature 2) Temperature units (°F vs. °C) 3) Channel number Figure 12...

  • Page 14: Setting & Functions Of Console

    FT0310-019T and FT0320-019T-016TH User Manual SETTING & FUNCTIONS OF CONSOLE Note: The console has five keys for easy operation: MIN/MAX/-key, ALARM key, SET/MODE key, CHANNEL/+ and SNOOZE key. QUICK DISPLAY MODE Note: To exit the Quick Display Mode at any time, press the SNOOZE key of the display console.W...
  • Page 15 FT0310-019T and FT0320-019T-016TH User Manual Change Minute.Press the SET(MODE) key again to set the minute. Press the [+] key or [-] key ● to adjust the minute up or down. Date Format (default: MM-DD): Press the SET(MODE) key again to enter the day/month ●...

  • Page 16: Max/Min Viewing And Reset Mode

    FT0310-019T and FT0320-019T-016TH User Manual SENSORS SEARCH If a sensor loses communication, dashes (--.-) will be displayed. If a specific channel is lost, press the CHANNEL/+ button to display that channel prior to entering the search mode. To reacquire the lost signal, press and hold the CHANNEL/+ button for 3 seconds to enter the sensor search mode.

  • Page 17: Snooze Mode

    FT0310-019T and FT0320-019T-016TH User Manual Press the MAX/MIN/- key for three seconds to clear all Min values.(pressure, temperature and humidity minimum values). Press the SNOOZE key to exit the min/max checking and reset mode, return to normal display mode. Note: The Minimum values will display the current values after reset.

  • Page 18: Setting The Alarms

    FT0310-019T and FT0320-019T-016TH User Manual ALARM TRIGGERED When an alarm condition is exceed, the alarm icon (visual) will flash and the alarm beeper will sound (audible). To silence the beeper, press any key. VIEW HIGH/LOW ALARMS VALUE To view the current alarm settings, press the ALARM key to enter the alarm mode. HI AL 1 will be displayed in the date area.

  • Page 19: Optional Calibration Mode

    FT0310-019T and FT0320-019T-016TH User Manual Note: To prevent repetitive temperature alarming, there is a 0.9 °F(0.5°C) tolerance band. For example, if you set the high alarm to 80.0°F(26.7°C) and silence the alarm, the alarm icon will continue to flash until the temperature falls below 79.1°F (26.2°C), at which point, the alarm will reset and must increase above 80.0°F(26.7°C) to activate again.

  • Page 20: Calibration Of Sensors

    FT0310-019T and FT0320-019T-016TH User Manual CALIBRATION OF HUMIDITY In normal mode, press and hold the SET/MODE and MAX/MIN/- keys at the same time for five seconds to enter into the humidity calibration mode. The indoor humidity will begin flashing. Press the CHANNEL/+ key or MAX/MIN/- key to increase or decrease the humidity reading (in increments of 1%).

  • Page 21: Wind Speed Calibration

    FT0310-019T and FT0320-019T-016TH User Manual To compare pressure conditions from one location to another, meteorologists correct the pressure to sea-level conditions. Because the air pressure decreases as you rise in altitude, the sea-level corrected pressure (the pressure your location would be at if located at sea-level) is generally higher than your measured pressure.

  • Page 22: Other Features Of Display Console

    FT0310-019T and FT0320-019T-016TH User Manual Note: that debris and insects can collect inside the tipping mechanism (they make a good spiders nest). Carefully remove the funnel and inspect the tipping mechanism for debris prior to calibration. SUNLIGHT CALIBRATION In the calibration mode, press the SET/MODE button four times and the sunlight value will flash (the default is 1.00).

  • Page 23: Moon Phase

    FT0310-019T and FT0320-019T-016TH User Manual MOON PHASE The following moon phases are displayed based on the calendar date. Please refer to POINTING THE WIRELESS 7-IN-1 SENSOR TO SOUTH section about how to setup for the Southem Hemispheres. FEELS LIKE AND AT TEMPERATURE FEELS LIKE TEMPERATURE Feels like temperature is a combination of Heat Index and Wind Chill.

  • Page 24: Wireless 7-In-1 Sensor Maintenance

    FT0310-019T and FT0320-019T-016TH User Manual When the temperature is between 4.4°C (40°F) and 26.7°C (80°F), the OUT temperature is displayed (Feels Like temperature is the same as OUT temperature). APPARENT TEMPERATURE (AT) AT is a linear regression that is not restricted, and is more appropriate to outside conditions because it includes wind, and was intended as an assessment of what exposed body surfaces feel like in cold, windy conditions.

  • Page 25: Specifications

    FT0310-019T and FT0320-019T-016TH User Manual B: INSTALL THE COLLECTOR FUNNEL SPECIFICATIONS Measurement Specifications Measurement Range.Accuracy.Resolution Indoor Temperature 0 to 60 °C/(32 to 140°F); ±1 °C/(±2°F); 0.1 °C(°F) Outdoor Temperature -40 to 60 °C/ (-40 to 140°F); ±1 °C/(±2°F); 0.1 °C(°F) Indoor Humidity 10 to 99 %;...

  • Page 26: Setting Up A Wi-Fi Connection

    FT0310-019T and FT0320-019T-016TH User Manual Minimum 12 months for sensors (use lithium batteries in cold weather Battery life climates less than -20°C(-4°F). Wifi Specifications WIFI Standard 802.11 b/g/n WiFi Console RF Frequency 2.4 GHz Build-in WiFi with WAP Mode, Smart Device (laptops, computers, smart Device Compatibility phones and smart pads).
  • Page 27 FT0310-019T and FT0320-019T-016TH User Manual Registering with and using wunderground.com Perform the following steps to get the Station ID and Password on wunderground.com: Step 1. Visit Wunderground.com and select the Join link at the top of the page and sign up.
  • Page 28 FT0310-019T and FT0320-019T-016TH User Manual Step 4. Find Personal Weather Station. Select ‘other’ and click ‘Next’. Step 5. Select ‘Address’ or ‘Manual’ option, and find your local position. Press‘Next’. - 27 -...
  • Page 29 FT0310-019T and FT0320-019T-016TH User Manual Step 6. This time you will be asked details about your weather station. Go ahead and fill out the form. Step 7. After completing the weather station, you will see station ID and key/password. Step 8. Refresh the page, you may have to wait about a few minutes until the status becomes ‘Online’. Then you can click device name to view data.
  • Page 30 FT0310-019T and FT0320-019T-016TH User Manual Registering with and using weathercloud.net Step 1. Register on https://weathercloud.net, select your login information under "Join Us Now" and follow the instructions to create your account. NOTE: To register your account, please enter a valid e-mail address on which you will receive an authorization e-mail when you register.
  • Page 31 FT0310-019T and FT0320-019T-016TH User Manual Input any name Input local address Select any mode or “other” Select any link type Click the “Create” button at the bottom to save and Click “Get Coordinates ” to identify your location. complete. Step 5.To get a unique ID key, move the mouse cursor over the "Settings" button to open the drop-down menu.
  • Page 32 FT0310-019T and FT0320-019T-016TH User Manual Note: Weatherhome-*****.(This network does not require any password, you can connect directly. If you are unable to connect, check if your firewall stops unfamiliar network connections.) Note: When powered up the console, If the WiFi displayed without flashing. Press the Min/Max key 3 seconds until the WiFi icon is flashing.

  • Page 33: Trouble Shooting Guide

    FT0310-019T and FT0320-019T-016TH User Manual TROUBLE SHOOTING GUIDE Look through the following table and locate an issue or problem you are experiencing in the left column and read possible solutions in the right column. Problem Solution Wireless remote Move the sensor assembly closer to the display console.

  • Page 34: Packing List

    FT0310-019T and FT0320-019T-016TH User Manual PACKING LIST The FT0310 weather station consists of a display console, Integrated Outdoor Sensors and mounting hardware.The FT0320 adds one remote thermo-hygrometer sensor (No.:016TH) Unpacking: Open your weather station box and inspect that the contents are intact (nothing broken) and complete (nothing missing).
