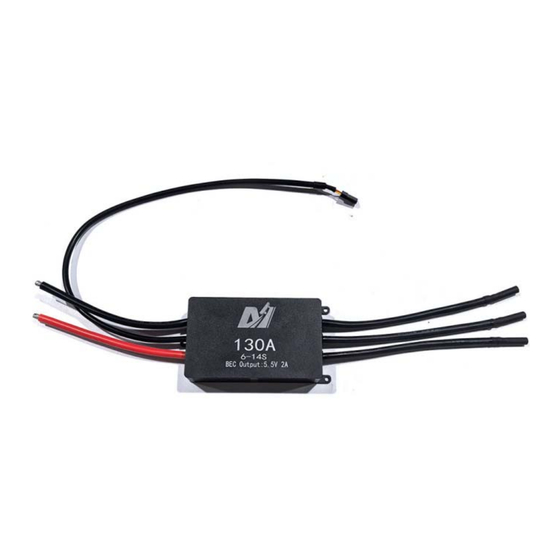

MTSPF130A‐WP32 Maytech 130A 32bit Waterproof ESC Manual Ver.20240711
Specs.
1. IP68 fully waterproof, can directly work in water.
2. Continuous current: 130A
3. Burst Current(at 10S): 150A
4. Working Voltage: 6‐14S Lipo cells (Max 60V);
If use with MTO6374‐80‐WPC 80KV motor, max 10S 42V.
5. Net Weight: 340g

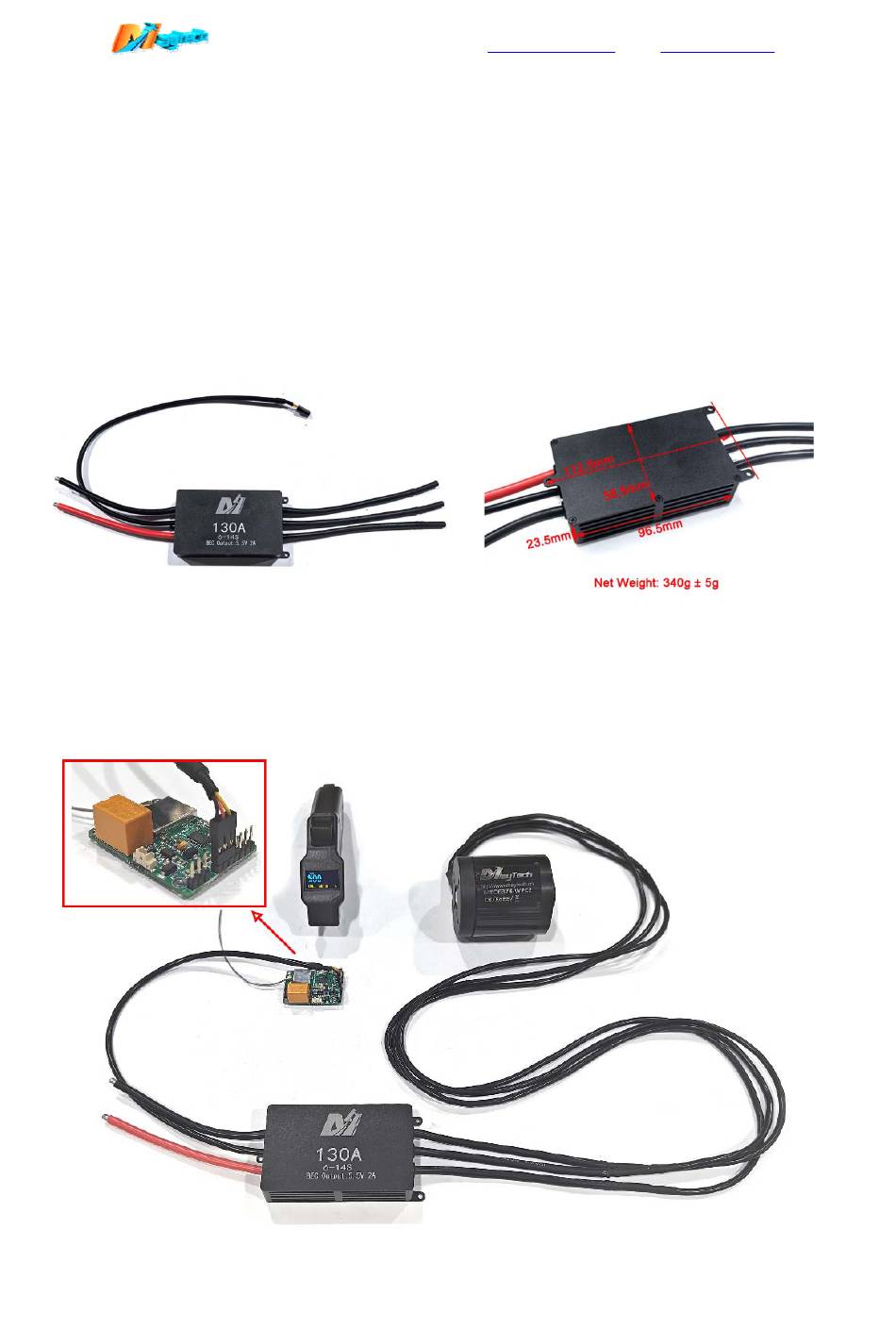

6. Programmable cable and Signal cable(3‐corel, Black‐GND, Red‐5V, Yellow‐ Prgramming signal or
throttle PWM signal): to connect programming USB/Card and Receiver, eg. Maytech
MTSKR1905WF receiver.
Wiring Instruction
To connect MTSKR1905WF receiver:
MAYTECH INNOVATIONS CO., LTD.
agnes@maytech.cn
1
Web.,
www.maytech.cn
Advertisement
Related Manuals for MayTech MTSPF130A-WP32
Summary of Contents for MayTech MTSPF130A-WP32
- Page 1 If use with MTO6374‐80‐WPC 80KV motor, max 10S 42V. 5. Net Weight: 340g 6. Programmable cable and Signal cable(3‐corel, Black‐GND, Red‐5V, Yellow‐ Prgramming signal or throttle PWM signal): to connect programming USB/Card and Receiver, eg. Maytech MTSKR1905WF receiver. Wiring Instruction...
- Page 2 MAYTECH INNOVATIONS CO., LTD. Whatsapp/Mob: +8613575977294 email: agnes@maytech.cn Web., www.maytech.cn If you want to read main battery voltage/motor RPM and display in remote screen, please refer this wiring and adjust remote settings according to remote manual: To connect Programming card (ProgCard-FP32):...
- Page 3 MAYTECH INNOVATIONS CO., LTD. Whatsapp/Mob: +8613575977294 email: agnes@maytech.cn Web., www.maytech.cn How to Program ESC: 1. Connect ESC with program card through throttle cables . “Program" port is for programming, "FLASH" port is for updating firmware. 2. Power on ESC, program card will read data from ESC, horizontal and vertical! LED lights lit on and run back and forth, means connection is successful.
- Page 4 ESC Settings: Notice before adjusting settings!!!! Settings in Red frames are for other applications. lf use with Maytech 6374 80KV motor, please keep same as this picture and don't adjust these settings, it may damaged your motor or ESC. You can set low voltage protection according to your battery: ◆CutOff Mode (low voltage protection mode):...
-
Page 5: Battery Type
MAYTECH INNOVATIONS CO., LTD. Whatsapp/Mob: +8613575977294 email: agnes@maytech.cn Web., www.maytech.cn OFF(No protect)/SLOW‐DOWN(Half power)/CUT‐OFF（Shutdown） For electric watersports, recommend to set Slow Down or OFF (this can support you to move from water to land when battery power runs out). ◆Battery Type Please select the right battery type if your battery is not LIPO as default, so that the battery cells can be detected correctly.It supports:LIHV/LIPO/NIMH/LIFE.
