MAYTECH INNOVATIONS CO., LTD.

Phone: 0086‐21‐56165310 email:

agnes@maytech.cn

Web.,

www.maytech.cn

MTSPF160A‐WP32 Maytech 160A 32bit Waterproof ESC Ver.20231211



Specs.

1. IP68 fully waterproof, can directly work in water.

2. Continuous current: 160A

3. Burst Current(at 10S): 180A

4. Working Voltage: 6‐14S Lipo cells (Max 58.8V)

5. Net Weight: 180g

7. Programmable cable(2‐core)：Green‐RX， Yellow‐ TX

8. Signal cable(3‐core)：to connect receiver, eg. Maytech MTSKR1905WF receiver



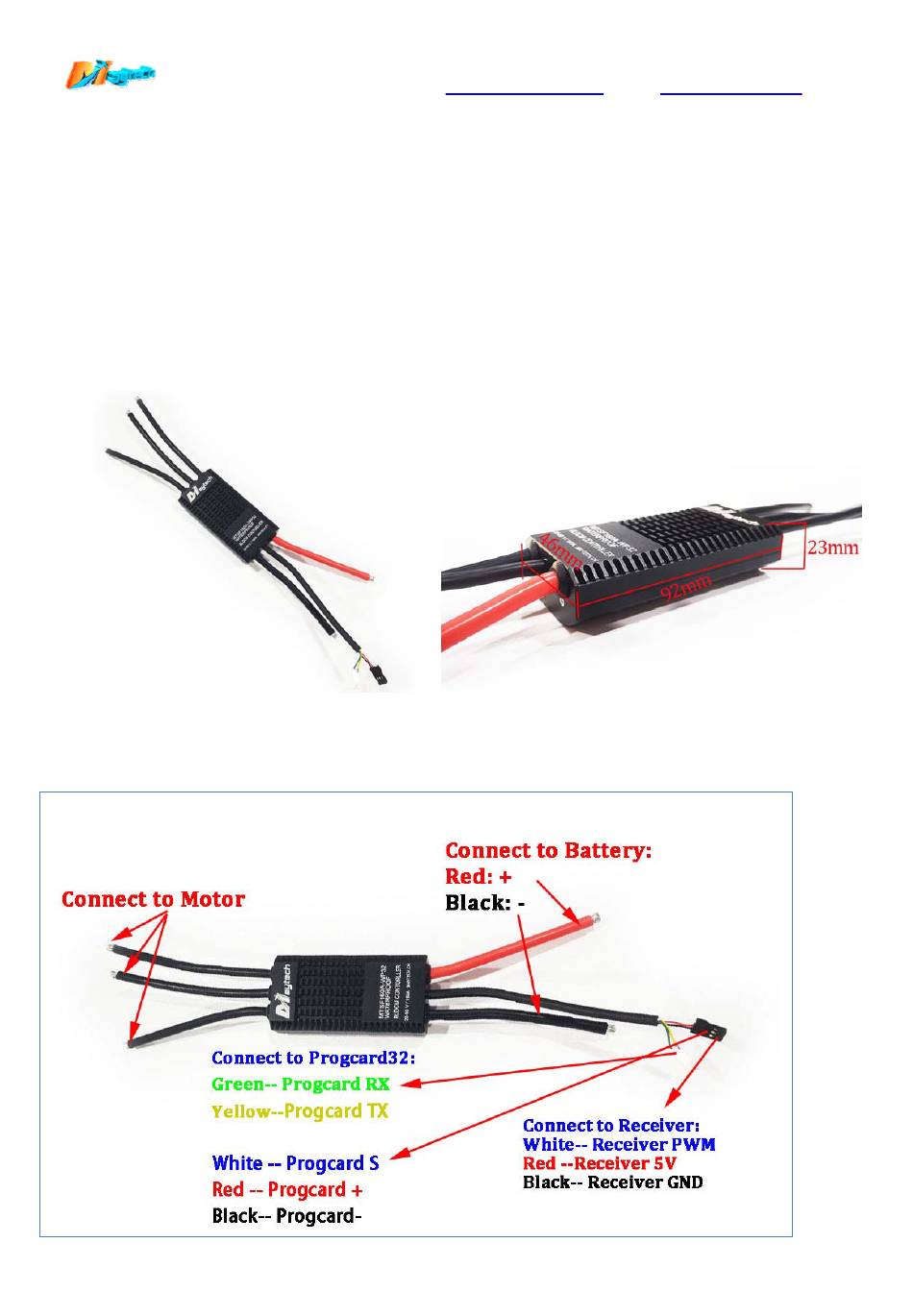

Wiring Instruction, signal and programmable cable

Need help?

Do you have a question about the MTSPF160A-WP32 and is the answer not in the manual?

Page 1 2. Continuous current: 160A 3. Burst Current(at 10S): 180A 4. Working Voltage: 6‐14S Lipo cells (Max 58.8V) 5. Net Weight: 180g 7. Programmable cable(2‐core)：Green‐RX， Yellow‐ TX 8. Signal cable(3‐core)：to connect receiver, eg. Maytech MTSKR1905WF receiver  Wiring Instruction, signal and programmable cable...
Page 2 MAYTECH INNOVATIONS CO., LTD. Phone: 0086‐21‐56165310 email: agnes@maytech.cn Web., www.maytech.cn To connect MTSKR1905WF receiver：  How to do ESC throttle calibration with Remote: Pleas Refer to Youtube Video: https://youtu.be/zYmn57Is144  Program settings via progcard32 1. Connect progcard: It needs to connect ESC to battery to power on progcard. (Battery votage needs to be 6S Lipo and...
Page 3 9. BEC Voltage: 6.0V/7.4/8.4V This setting is no‐use for electric watersports. Please keep it at “6.0V”. 10. Acceleratation: Soft/Normal For Maytech Motors, please select “Soft”. 11. Startup Power: Low/Mid/High For Maytech Motors, please select “Mid”. 12. Restore Default To set all setttings to defaults.
Page 4 3.5 After programming, you need to turn off ESC and disconnect progcard, reconnect ESC power, then adjusted parameters can be effective. The users manual will be updated along with further product improvements. Pls contact us if any question when you use our products. You can reach us by phone: 0086‐21‐56165310, or email to agnes@maytech.cn.
