Summary of Contents for Luxman DA-07X

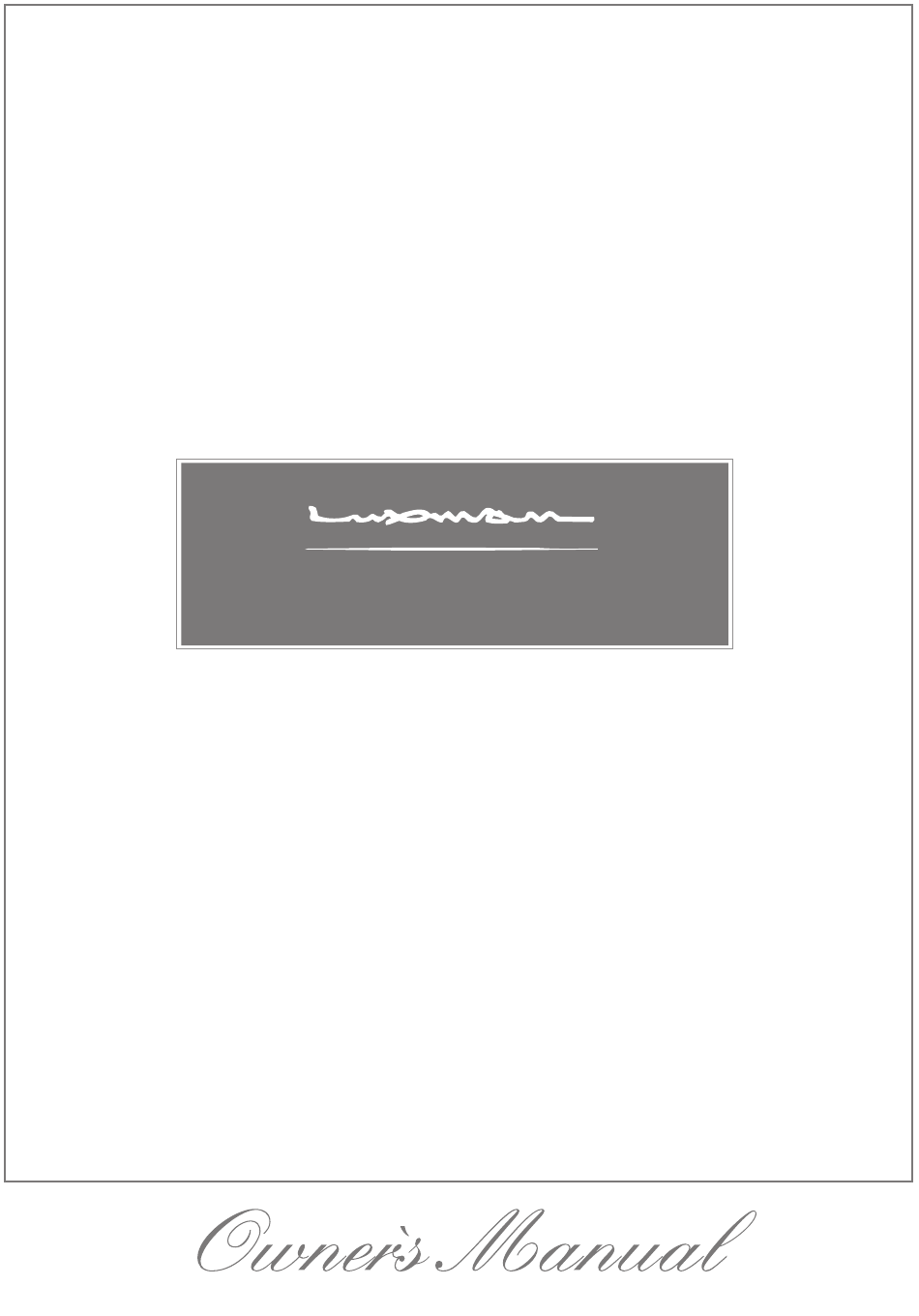

- Page 1 USB D/A CONVERTER DA-07X...
-
Page 2: Table Of Contents
Contents Precautions ············································································································· 1 Features Of This Unit ······························································································· 2 Names and Functions ······························································································ 4 Connections ·········································································································· 10 Operations ············································································································· 13 Block Diagram ······································································································· 14 Specifications ········································································································ 15 Before Asking for Repair ························································································ 16... -
Page 3: Precautions
Precautions USB D/A CONVERTER DA-07X Installation place Notice when handling optical digital cables Install this unit in a location where good ventilation and heat • Do not fold the cables. For storage, wind each cable into a radiation are assured. -
Page 4: Features Of This Unit
Features Of This Unit Analog circuitry Asynchronous communication supported This unit has an independent monaural operational D/A con- The USB input’s low jitter characteristics have been achieved verter on the right and left sides. Then, the high-quality discrete by a dedicated DSP chip using asynchronous communication buffer circuit with fully balanced configuration reduces the and PLL. -
Page 5: Dimmer Function
USB D/A CONVERTER DA-07X Dimmer function Digital output OFF The brightness of the organic EL display can be adjusted with The digital audio output can be deactivated to improve the 4 brightness levels. quality of the analog audio output. Analog output terminals... -
Page 6: Names And Functions
Names and Functions Front panel 1. Operation button (OPERATION) 5. Analog output phase selection button (PHASE INVERT) Toggles the power on and off. When wiring or connection is performed, be sure to turn off Use this button to invert the phase of the analog outputs on this button. - Page 7 USB D/A CONVERTER DA-07X 6. Digital filter selection button 7. Enter button (ENTER) (DIGITAL FILTER) This button is used to confirm the setting data of the digital filter selection (DIGITAL FILTER). This button is used to switch between the digital FIR filter for PCM playback and the filter for DSD playback.
- Page 8 Names and Functions Display window INPUT: USB PCM 352.8kHz MQA STUDIO 1. Digital output indicator (DIGITAL OUT) 4. Display of playback format mode Lights up when the digital audio output is ON. Displays operating status such as format (PCM/DSD) and When a DSD file is reproduced, a digital audio output sampling frequency during playback.
- Page 9 (PHASE INVERT) on the front panel. LUXMAN website and installed. The following table shows the unit’s XLR output terminals Refer to "Driver Installation Manual" on the LUXMAN website pin configuration: for detailed information. [Phase Normal] 1.
- Page 10 Names and Functions Rear panel 8 9 10 4. Coaxial digital input terminals/ 6. Balanced digital input terminal/ DIGITAL IN (COAX-1, COAX-2) DIGITAL IN (AES/EBU) Connect digital signals from a CD player or the like that has Connect digital signals from a CD player or the like that has a digital output terminal to this unit using a coaxial digital a digital output terminal to this unit using a balanced digital cable.
- Page 11 9. Control input terminal (CONTROL IN) Connects a LUXMAN’s device with a control output terminal using a commercially available 3.5 mm monaural mini-jack cable. 10. Control output terminal...
-
Page 12: Connections
Connections NETWORK TRANSPORT PC／Mac CD/SACD PLAYER * When using Windows OS for PC, the dedicated ( B ) ( A ) driver software must be installed before use. ( A ) ( C ) ( G ) CD PLAYER (Equipped with digital input terminals) ( E ) ( F ) ( D ) -
Page 13: Before Connecting
USB D/A CONVERTER DA-07X Before Connecting Before connecting other devices, connect the jack side of the accessory power cable to the AC inlet of this unit. When connecting, turn off the power supply for this unit and the power supplies of all auxiliary devices to prevent unex- pected accidents that may be caused by noise. - Page 14 2. Balanced connection with a device LUXMAN website and installed. such as a pre-amplifier Refer to "Driver Installation Manual" on the LUXMAN web- site for detailed information. (Refer to connection diagram (F).) Connect between the balanced analog output terminals With Mac OS, this unit is automatically recognized.
-
Page 15: Operations
Operations USB D/A CONVERTER DA-07X This unit is a D/A converter. All music playback operations are performed by input devices such as a PC/Mac/Network transport or CD player connected to the input terminals. Before operation 1. Ensure that all connections have been correctly performed. -
Page 16: Block Diagram
Block Diagram... -
Page 17: Specifications
Specifications USB D/A CONVERTER DA-07X Format 2 channel USB equipped D/A converter +5 ˚C to +35 ˚C Ambient operating temperature Output voltage / output UNBALANCE terminal (RCA terminal) 2.4 Vrms/300 Ω BALANCE terminal (XLR terminal) 2.4 Vrms/600 Ω impedance: 2.3 Vrms for DSD 5 Hz to 20 kHz (+0, –0.4 dB) -
Page 18: Before Asking For Repair
· Connect digital cables correctly. 10 - 12 volume is too low. (Digital input) · If the USB is selected as an input source, select this unit (DA-07X) as Refer to the in- the output destination by configuring the sound setting of a PC/Mac. - Page 20 LUXMAN CORPORATION AG00238G21A 1-3-1 Shinyokohama, Kouhoku-ku, Yokohama-shi, Kanagawa 222-0033, Japan Printed in Japan...
