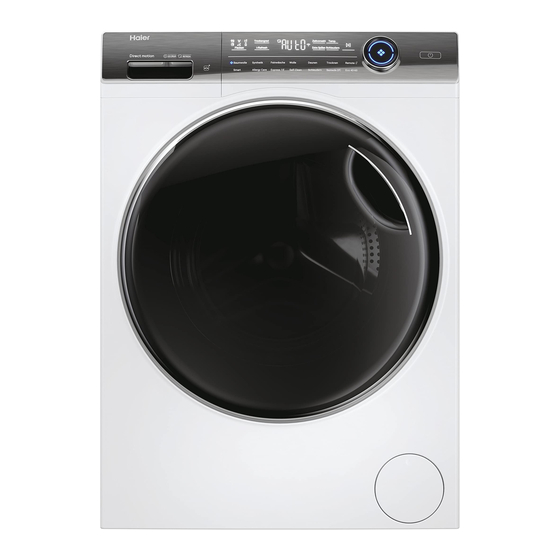

Washer-dryer
HWD100-BD14979U1
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HWD100-BD14979U1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Haier HWD100-BD14979U1

Summary of Contents for Haier HWD100-BD14979U1

  • Page 1 User manual Washer-dryer HWD100-BD14979U1...
  • Page 2 Thank you Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions con- tain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

  • Page 3: Table Of Contents

    Content 1-Safety information ......................... 4 2-Product description ........................8 3-Control panel ..........................9 4-Programmes ..........................13 5-Consumption ..........................14 6-Daily use ............................15 7-hOn..............................20 8-Eco friendly use..........................23 9-Care and cleaning ........................24 10-Troubleshooting .........................27 11-Installation ...........................31 12-Technical data..........................35 13-Customer service ........................36...

  • Page 4: 1-Safety Information

    1-Safety information Before switching on the appliance for the fi rst time read the follow- ing safety hints!: WARNING! Before fi rst use Make sure there is no transport damage. Make sure all transport bolts are removed. Remove all packaging and keep out of children´s reach. Handle the appliance always with at least two persons because it is heavy.
  • Page 5 1-Safety information WARNING! Daily use Do not hot wash foam rubber or sponge-like materials. Do not wash any laundry which is polluted with fl our. Do not open detergent drawer during any wash cycle. Do not touch the door during the washing process, it gets hot. Do not open the door if the water level is visibly over the porthole.
  • Page 6 1-Safety information WARNING Daily use Do not dry following items in the appliance: Items which are unwashed. Items which have been contaminated with infl ammable sub- stances such as cooking oil, acetone, alcohol, benzine, petrol, kerosene, spot removers, turpentine, waxes, wax removers or other chemicals.
  • Page 7 1-Safety information WARNING Installation Ensure a location which allows opening the door fully. Do not in- stall the appliance behind a lockable door, a sliding door or a door with hinges on the opposite side of the appliance door as this limits the full opening of the appliance door.

  • Page 8: 2-Product Description

    4 Power cord 5 Washer door 5 Drain hose 6 Service fl ap 6 Water inlet valve 7 Adjustable feet 2.2 Accessories Check the accessories and literature in accordance with this list (Fig. 2-3): Haier HW110-B14979U1 11,0 3:58 CDEFG User Energy Warranty...

  • Page 9: 3-Control Panel

    3-Control panel Delay Te mp. Dry level Stain removal Auto Dose i-Refresh Speed Cotton Sy nthetic s Delicate Wool Duvet Remote Smart Allergy C are Self Clean Quick 15 ’ Rinse+spin Cotton 20°C Eco 40-60 1 “Power” button 3 Display 5 Function buttons 2 Programme selector 4 Detergent/Softenener...
  • Page 10 Note: Factory settings To get best results in each programme Haier has well defi ned specifi c default settings. If there is no special requirement default settings are recommended.
  • Page 11 3-Control panel 3.5.3 Function button“Temp.“ Temp. Temp. Press this button (Fig. 3-9) to change the washing tem- perature of the programme. If no value is illuminated (the display”-- “) the water will not heated. 3.5.4 Function button“Speed“ 3-10 Speed Speed Press this button (Fig.
  • Page 12 3-Control panel 3.5.7-Function button“Stain removal“ 3-13 Stain removal Stain removal Touch this button (Fig. 3-13) to choose special features for stains. The symbols are explained in the following table. Stains Meaning Stains Meaning Soil Grass Blood Juice Blood Wine Milk 3.6 “Start/Pause“...

  • Page 13: 4-Programmes

    4-Programmes Detergent compartment for: Softener Detergent Laundry Powder • Yes, Optional, º Max. load Tempera- Preset Function in kg ture spin speed in °C drying shing in kg in rpm in kg select- able Program range 1 2 3 Fabrics type HWD100 º...

  • Page 14: 5-Consumption

    5-Consumption Scan QR code on energy label for energy consumption information. The actual energy consumption may diff er from the declared one according to local conditions. Note: Auto Weight The appliance is equipped with a loading recognition. At low loading, energy, water and washing time will be reduced automatically in some programmes.

  • Page 15: 6-Daily Use

    6-Daily use 6.1 Power supply Connect the washing machine to a power supply (220V to 240V~/50Hz; Fig. 6-1). Please refer also to section INSTALLATION (see P31). 6.2 Water connection Before connecting check the cleanliness and clar- ity of the water inlet. Tun on the tap (Fig.6-2).
  • Page 16 6-Daily use 6.4 Care chart Washing Washable up to 95°C Washable up to 60°C Washable up to 60°C normal process normal process mild process Washable up to 40°C Washable up to 40°C Washable up to 40°C normal process mild process very mild process Washable up to 30°C Washable up to 30°C...
  • Page 17 6-Daily use 6.6 Selecting detergent Washing effi ciency and performance is determined by used detergent quality. Use only machine wash approved detergent. If needed use specifi c detergents, e.g. for synthetic and woolen fabric. Mind always detergent manufacturer recommendations. Do not use dry cleaning agents such as trichloroethylene and similar products. Kind of detergent Universal Colour...
  • Page 18 6-Daily use 6.7 Adding detergent 1. Slide out the detergent drawer. 2. Put the required chemicals into corresponding compartments (Fig. 6-4) 3. Push back the drawer gently. Note: Remove detergent residues before next wash cycle from the detergent drawer. Do not overuse detergent or softener. Please follow the instruction on the detergent package.
  • Page 19 6-Daily use 3-14 6.11 Start wash programme Touch “Start/Pause“ button (Fig. 6-8) to start. The LED of the “Start/Pause“ button stops fl ashing and lights up continuously Appliance operates according to present settings. Changes are only possible by cancelling the programme. 6.12 Interrupt / cancel wash programme To interrupt a running programme press gently “Start/Pause“.

  • Page 20: 7-Hon

    7.3 Download and installation of hOn APP: Download the hOn App on your device by framing the following QR code: Download the hOn App on your device go.haier-europe.com/download-app or by the link: go.haier-europe.com/download-app Frequency rate (OFR) 2400 MHz - 2483,5 MHz Max. power (ERP)
  • Page 21 7-hOn 7.4 Registration and App Pairing Connect the smartphone to the home Wi-Fi network you want to connect the product to. 2. Open the App. 3. Create the user profi le (or log-in if it is already created previously). 4. Close the door. 5.
  • Page 22 7-hOn Note: Network credentials cancellation/reset Follow this procedure only if you are going to sell your washer. 7.8 Network credentials cancellation 1. Select the “Remote” programme; 2. “”/”” displayed; 3. Long press “Delay” button for 5 seconds till “” displayed. 4.

  • Page 23: 8-Eco Friendly Use

    8-Eco-friendly use Environmentally responsible use Washing To achieve best use of energy, water, detergent and time you should use the recom- mended maximum load size. Do not overload (hand width clearance above laundry). For slightly soiled laundry select the Quick 15’ programme. Apply exact dosages of each washing agent.

  • Page 24: 9-Care And Cleaning

    9-Care and cleaning 9.1 Cleaning the detergent drawer Take always care there are no detergent residues. Clean the drawer regularly (Fig. 9-1): 1. Pull out the drawer until it stops. 2. Press the release button and remove the drawer. 3. Wipe the inside of the sink clean with a towel 4.
  • Page 25 9-Care and cleaning 9.5 Long periods of disuse If the appliance is left idle for a longer period: 1. Pull out the electrical plug (Fig. 9-6). 2. Turn off water supply (Fig. 9-7). 3. Open the door to prevent formation of moisture and odours.
  • Page 26 9-Care and cleaning 9. Clean carefully pump fi lter, e.g. using running water 9-14 9-15 (Fig. 9-14). 10. After cleaning, reinstall the handle and tighten it until it does not move. At this time, the handle is in vertical state (Fig. 9-15). 11.

  • Page 27: 10-Troubleshooting

    10-Troubleshooting Many occuring problems could be solved by yourself without specifi c expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE. WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
  • Page 28 10-Troubleshooting Problem Cause Solution  • Temperature sensor error. • Contact the After sales service.  • Heating error. • Contact the After sales service.  • Motor error • Contact the After sales service  • Dry temperature sensor error. •...
  • Page 29 10-Troubleshooting Problem Cause Solution Strong vibration while • Not all transportation bolts have • Remove all transportation bolts. spinning. been removed. • Appliance has no solid position. • Ensure solid ground and a levelled position. • Machine load is not correct. •...
  • Page 30 10-Troubleshooting 10.4 In case of power failure 10-1 The current programme and its setting will be saved. When power supply is restored operation will be re- sumed. If a power failure cuts an operating wash programme door opening is mechanically blocked. To get out any laundry water level should not be seen in the glassy porthole of the door - Danger of burns! Water level has to be lowered as described in “Pump fi...

  • Page 31: 11-Installation

    11-Installation 11.1 Preparation Take the appliance out of the packaging. Remove all packaging material including polystyrene base, keep them out of childrens reach. While opening the package, water drops may be seen on plastic bag and port- hole. This normal phenomenon results from water tests in the factory. Note: Packaging disposal Keep all packaging materials out of children´s reach and dispose them in an environ- mentally friendly manner.
  • Page 32 11-Installation 2. Fill the 5 left holes with blanking plugs (Fig. 11-4) 11-4 Note: Keep in safe place Keep the transportation bolts in a safe place for later use. Whenever the appliance is to be moved at fi rst reinstall the bolts. 11.4 Moving the appliance If the machine is to be moved to a distant location, replace the transportation bolts re- moved before installation to prevent damage:...
  • Page 33 11-Installation 11.6 Drain Water Connection Fix the water drain hose properly to the piping. The hose has to reach at one point a height between 80 and 100 cm above the appliance bottom line! If possible keep always drain hose fi xed to the clip at the appliance back. WARNING! Use only the supplied hose set for the connection.
  • Page 34 11-Installation 11.7 Fresh Water Connection 11-10 11-9 Make sure that the gaskets are inserted. 1. Connect the water inlet hose with the angled end to the appliance (Fig. 11-9. Tighten the screw joint by hand. 2. The other end connect to a water tap with a 3/4“...

  • Page 35: 12-Technical Data

    12-Technical data 12.1 Additional technical data HWD100 Voltage in V 220-240 V~/50Hz Current in A Max. power in W 2000 Water pressure in MPa 0,03-≤P≤1 Netto weight in kg 12.2 Product dimensions PRODUCT DIMENSIONS HWD 100 Overall height of product mm Overall width of product mm Overall depth of product (To main control board size) mm...

  • Page 36: 13-Customer Service

    If you cannot fi nd a solution there, please contact your local dealer or the Service & Support area at www.haier.com where you can fi nd telephone numbers and FAQs and where you can activate the service claim. To contact our Service, ensure that you have the following data available.
  • Page 37 12-Customer service Model information is available in the product database at https://eprel.ec.europa.eu/ by searching for the model identifi er reported in the fi eld Model of the product label affi xed on the product; the link to the model in the product database can be found here below for each model identifi...
