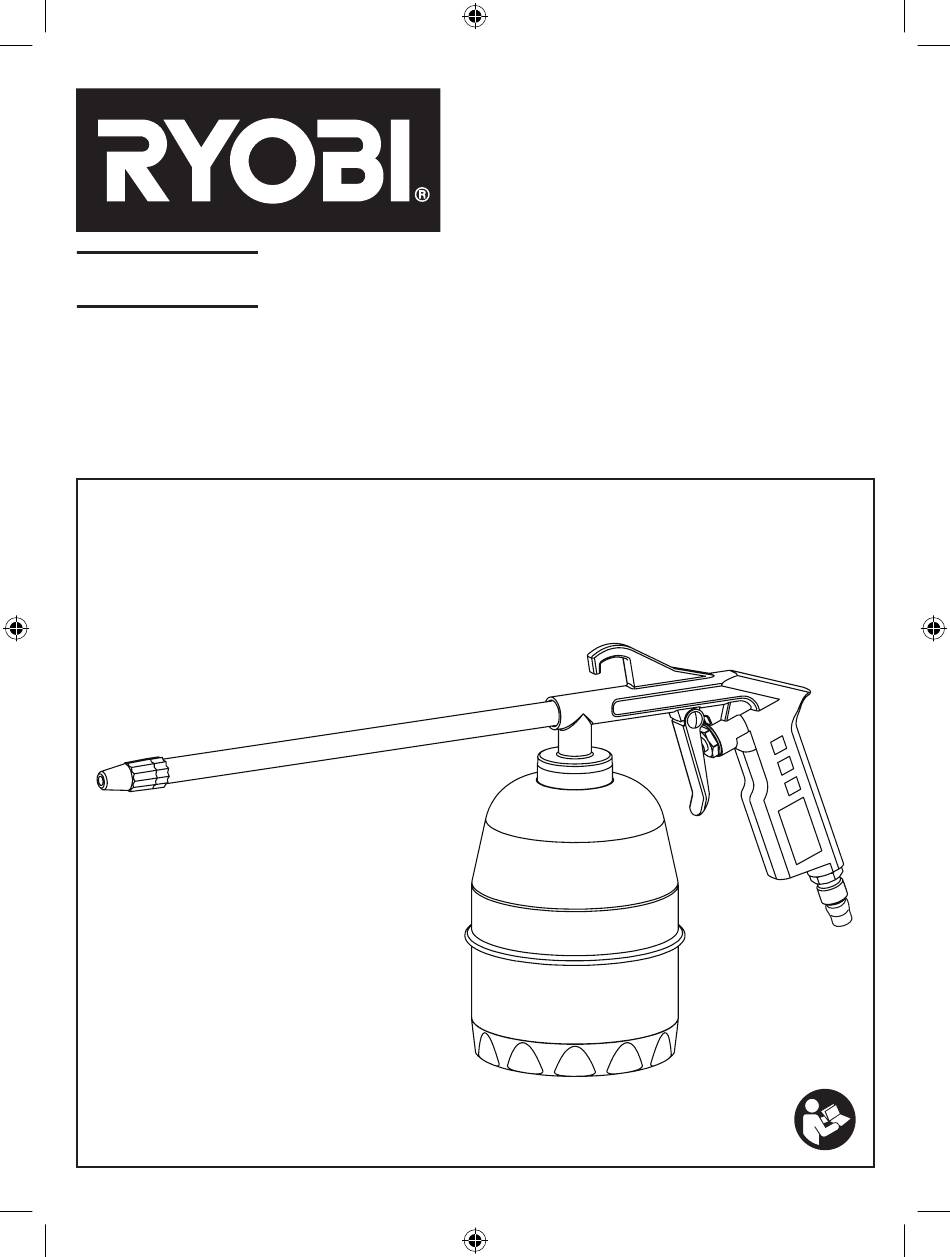

  • Page 1 RAECG1 AIR ENGINE CLEANING GUN OPERATOR'S MANUAL ORIGINAL INSTRUCTIONS...
  • Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modifications.
  • Page 3 DESCRIPTION 1. Nozzle 4. Container 2. Trigger 5. Quick coupler (not included) 3. NITTO style plug 6. Air hose (not included) Fig.1 Fig.2 Fig.3 Fig.4 Fig.5...
  • Page 4: General Safety Warnings

    ■ Avoid unsuitable postures as it is likely for these GENERAL SAFETY WARNINGS positions not to allow counteracting of normal or unexpected movement of the tool. ■ For multiple hazards, read and understand the safety instructions before installing, operating, repairing, ■...
  • Page 5: Additional Safety Instructions For Pneumatic Power Tools

    ■ Use appropriate respiratory protection when using the equipment and only work in well ventilated rooms or use product. supplementary ventilating equipment. It is advisable to wear working clothing, safety glasses, ear protection and ■ Exposure to high noise levels can cause permanent, gloves.
  • Page 6: Specifications

    WARNING! Do not attempt to modify this tool or Air engine cleaning gun create accessories not recommended for use with this Model RAECG1 tool. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible Average air consumption ≤230 L/min @...
  • Page 7: Operation

    ■ Check for leaks in the air connections. Repair as ■ When finished cleaning, release the trigger. Turn off needed. the air compressor and squeeze the trigger once to release residual pressure in the tool. Disconnect the ■ If the product will not be used, turn off and disconnect tool from the air supply.
  • Page 8 SYMBOLS Safety alert CE conformity Please read the instructions carefully before starting the product. Wear eye protection. Wear ear protection. Wear a safety mask.
  • Page 9: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE SOLUTION The product will not start. 1. Compressor is not turned on. 1. Turn compressor on. 2. Air line is not connected properly. 2. Check that air line is connected properly. Fluttering or spitting of fluid. 1. Material level is too low. 1.
  • Page 10: Parts List

    PARTS LIST Description Description Description Description NITTO style plug O-ring 2.5x2.1 Trigger pin Straw O-ring 7x1.5 O-ring 11.2x1.6 Blow pipe Container Gun body Rectangle washer Water pipe Switch spring Switch seat Screw Switch pipe Trigger Air cap...
