Summary of Contents for Ryobi RAH-G

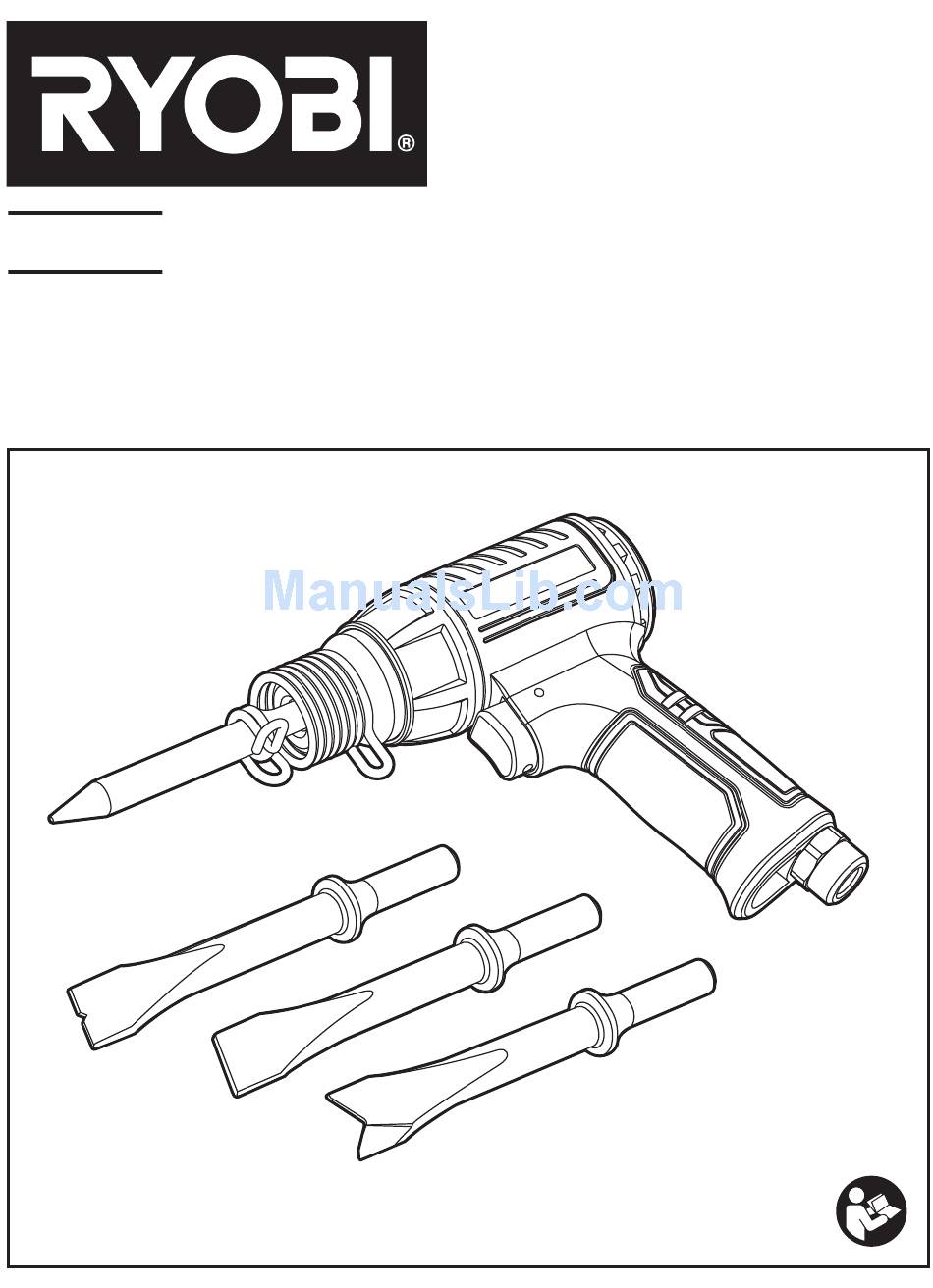

- Page 1 RAH-G AIR HAMMER OPERATOR'S MANUAL ORIGINAL INSTRUCTIONS...
- Page 2 Important! It is essential that you read the instructions in this manual before operating this machine. Subject to technical modifications.
- Page 3 DESCRIPTION 1. Cylinder 4. Nitto style coupler 7. Chisel 3 10. Chisel 2. Trigger 5. Chisel 1 8. Chisel 4 3. Air inlet 6. Chisel 2 9. Hammer spring Fig.1 Fig.2 Fig.3 Fig.4 Fig.5 Quick Quick connector connector Lubricator Filter Tool compressor Cut-off...
-
Page 4: General Safety Rules
■ Release the start-and-stop device in the case of an GENERAL SAFETY RULES interruption of the energy supply. ■ For multiple hazards, read and understand the safety ■ Use only lubricants recommended by the manufacturer. instructions before installing, operating, repairing, ■... -
Page 5: Workplace Hazards
WORKPLACE HAZARDS and safety regulations. ■ Slips, trips and falls are major causes of workplace ■ Operate and maintain the non-rotary percussive power injury. Be aware of slippery surfaces caused by use of tool as recommended in the instructions handbook, to the tool and also of trip hazards caused by the air line prevent an unnecessary increase in noise levels. -
Page 6: Specifications
■ Always shut off air supply, drain hose of air pressure Maximum working pressure 6.3 bar (90 psi) and disconnect tool from air supply when not in use, before changing accessories or when making repairs; Air inlet size 6.35 mm (1/4”) ■... -
Page 7: Loading And Operation
■ Press the trigger to operate the product. IMPORTANT! ■ Do not allow the product to free run for an extended See Figure 6. period of time as this will shorten its life. If a filter/regulator/lubricator is not installed on the air ■... -
Page 8: Troubleshooting
■ Drain the air tank daily. Water in the air line will ■ Operate the product in short bursts quickly reversing damage the product. rotation back and forth where applicable. ■ If the product cannot be used anymore, make sure to ■... -
Page 9: Parts List
PARTS LIST Description Description Description Description Chisel Valve disc Compression Spring Pin 3 x 22 Spring Air inlet valve seat Anti-dust cap Pin 3 x 28 Exhaust cover Handle O-ring 14 x 2 O-ring 11.8 x 2.3 Cylinder Cushion O-ring 4 x 1.1 Air inlet Piston Bolt M4 x 8... - Page 10 Techtronic Industries (Australia) Pty. Ltd. Level 1, 660 Doncaster Road Doncaster, VIC 3108, Australia Techtronic Industries New Zealand Ltd. 18-26 Amelia Earhart Avenue Mangere, Auckland 2022, New Zealand...
