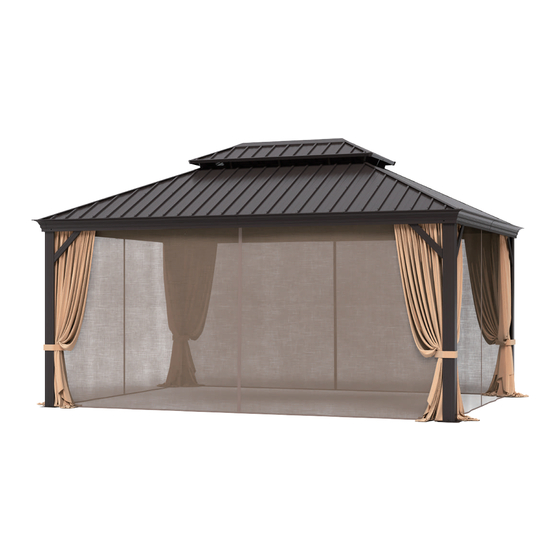

PHI VILLA GA-111 Use And Care Manual

Hide thumbs

Advertisement

Table of Contents

Life Gets Better With
USE AND CARE GUIDE
GA-111
Questions, problems, missing parts? Before returning to the store,
please contact our Customer Service
service@alphamarts.com
THANK YOU
We appreciate the trust and con dence you have placed in PHI VILLA through the purchase of our product. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing PHI VILLA!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-111 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PHI VILLA GA-111

Summary of Contents for PHI VILLA GA-111

  • Page 1 THANK YOU We appreciate the trust and con dence you have placed in PHI VILLA through the purchase of our product. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Before Starting Assembly

    Before starting assembly: • Read all instructions th roughly. • Open and check boxes for parts list. • If any parts are broken or missing call or email customer service. • Keep all packaging until you are satis ed with your product. •...

  • Page 3: Prepare The Work Area

    Pre Assembly Note 1.Three more people are required for 5.Wearing protective glovse is assembly. recommended 2.You will need one or more stepladders. 6.Use the hex keys in the box. 3.For ease of construction, you may 7.Please use a Phillips screwdriver. need touse a drill.

  • Page 4: Pre-Assembly

    Pre-assembly PACKAGE CONTENTS NOTE: Hardware not shown to actual size. Pole Beam Beam Beam Beam Joint Bar Joint Bar Joint Bar Joint Bar Sidewall Track Sidewall Track Sidewall Track Sidewall Track Sidewall Track Sidewall Track...
  • Page 5 Pre-assembly Corner Roof Bar Roof Bar Roof Bar Solidifying Bar Solidifying Bar Solidifying Bar Finishing Bar Finishing Bar Net Frame Net Frame Corner Cover Base Corner Corner Solidifyng Solidifyng...
  • Page 6 Pre-assembly Finishing End Joint Cover Inside Roof Outside Roof Connector Connector Roof Panel Roof Roof Panel Union Bar Panel Roof Roof Panel Roof Panel Roof Panel Panel Roof Roof Roof Panel Roof Panel Panel Panel Side Curtain Roof Roof Roof Panel Panel Panel...
  • Page 7 Pre-assembly Solidifying Bar Spacer Metal Bracket Metal Bracket Screws Screws Screws Screws Lamp Screws Screws Screws hook Screws...
  • Page 8 Assembly Set up poles (Part A) with stand plates (Part J) using screws 1# as shown in diagram.
  • Page 9 Assembly Connect Part B1 and Part B into one beam using union bar (Part P) with screws 1#. Connect parts (C1&C, D1&D) to the nished beam (part B1& part B) using screws 1# as shown in diagram.
  • Page 10 Assembly Connect Part B3 and Part B2 into one beam using union bar(Part P) with screws 1# as shown in diagram. Connect parts (C3&C2,D3&D2,D4&D5) to the fnished beam (part B3& part B2) using screws 1# as shown in diagram.
  • Page 11 Assembly Use screws (1# & 8#) to connect poles and beams together as own in diagram.
  • Page 12 Assembly Af x the frame with corner solidifying bars (Parts H & H1) using screws 1# as shown in diagram.
  • Page 13 Assembly Finish connecting beams using 4 corner covers (Part K) and screws 4# as shown In diagram. Put 7 hooks（Part U） to each slot of joint bar (Part C1& Part C) Af x middle beams using Put 9 hooks (Part U) joint cover(Part K1) and to each slot of joint bar screws 4# as shown in...
  • Page 14 Assembly Connect the inside roof connect (Part L) with the corner roof bar (Part E) using screws 1#. Attach corner roof bar(Part E) to main frame using screw 1#...
  • Page 15 Assembly Attach roof bar(Part E1,E2) to inside roof connector(Part L) and main frame using screws1#...
  • Page 16 Assembly Connect outside roof connector ( Part M) to inside roof ( Part L ) using screw 1# as shown in diagram. Insert lamp hook ( Part 5 ) into outside roof connector (Part M)
  • Page 17 Assembly Attach net frames( Part G3 & G4) with nishing end（Part N) using screw 1#，you may need to bent the frame ends a little to make it match the joint.
  • Page 18 Assembly Cover metal bracket(Part Z&Z1) to roof panels as shown in diagram...
  • Page 19 Assembly...
  • Page 20 Assembly Mind Roof Panel Falling! Do NOT stand under the roof except the installer with safety hat! Push the roof panels ( Part S,S1,S2,S3) to upper roof as shown in diagram.
  • Page 21 Assembly Mind Roof Panel Falling! Do NOT stand under the roof except the installer with safety hat! Attach fnishing bar ( Part G2 ) to roof bar (Part E1) using screws 1#. Attach nishing bar ( Part G1 & G2 ) with nish end (Part N) using screws 1# to corner roof bar (Part E) as shown in diagram.
  • Page 22 Assembly Mind Roof Panel Falling! Do NOT stand under the roof except the installer with safety hat! Af x solidifying bars ( Part F1 & F2 ) together to roof bar ( Part E1 ) using Af x solidifying bars ( Part F1 & F2 ) iron angle (Part W1) and screws 1# to roof corner bar ( Part E ) using as shown in diagram.
  • Page 23 Assembly Overal roof view: Mind Roof Panel Falling! Do NOT stand under the roof except the installer with safety hat! Connect roof as below please put the panels on the frame anti-clockwisely...
  • Page 24 Assembly Short side view Mind Roof Panel Falling! Do NOT stand under the roof except the installer with safety hat! Attention: Put on one roof panel and fasten it accordingly before attaching second roof panel. Af x roof panels using screws and spacers (Part Y) as shown in diagram.
  • Page 25 Assembly Long side view Mind Roof Panel Falling! Do NOT stand under the roof except the installer with safety hat! Af x roof panels using screws and spacers (Part Y) as shown in diagram.
  • Page 26 Assembly Mind Roof Panel Falling! Do NOT stand under the roof except the installer with safety hat!
  • Page 27 Assembly Total 16 hook holes on each side curtain, holes distribution as above...
  • Page 28 Assembly Hang up mosquito sidewalls and solid sidewalls as shown in diagram.
  • Page 29 Assembly Hang the hook attached to the curtain on Pole (Part A) In the end,Check all screws are xed tightly before using.
  • Page 30 Assembly...

  • Page 31: Cleaning And Maintenance

    Cleaning and Maintenance • Clean the furniture with damp cloth, rinse thoroughly. Dry frame parts completely. Do not use bleach, acid or other solvents on the textile or metal parts. • We recommend the use of furniture covers to protect the product when not in use. •...
