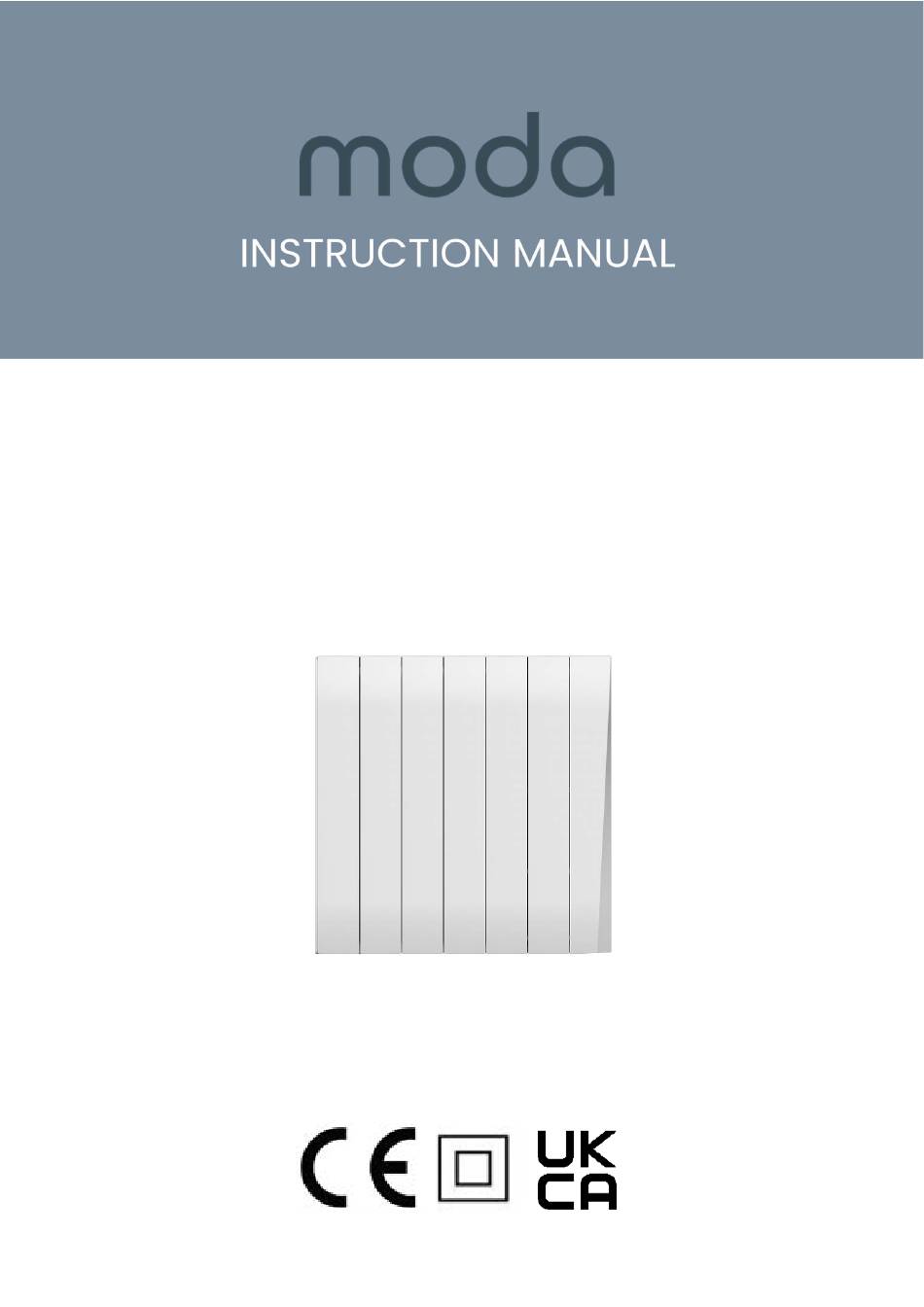

- Page 1 SmartStone Ceramic Electric Radiator PLEASE READ AND SAVE THESE INSTRUCTIONS...
- Page 2 Blank...
-
Page 3: Table Of Contents
3. Technical Information................6 4. Installation ...................... 7 4.1. Fixings..................... 7 4.2. Wall mounting instructions ........... 8 4.3. Using your Moda SmartStone..........12 5. Control Panel....................13 5.1. Display ....................13 5.2. First Switch On Behaviour............13 5.3. Standby mode................13 5.4. -
Page 4: Radiator Symbols
1. Radiator Symbols This symbol indicates a hazard with an average risk level which, if not avoided, could result in serious injury or death. This symbol indicates danger to the life and health of persons due to electrical voltage. This symbol located on the device indicates that it is prohibited to place objects (such as towels, clothes etc.) above or directly in front of the device. -
Page 5: Warnings & Precautions
2. Warnings & Precautions Read this manual carefully before using or installing the radiator. Always store the manual in the immediate vicinity of the radiator or its site of use. READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. The radiator should only be installed and used according to the instructions in this manual. - Page 6 This radiator can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the radiator in a safe way and understand the hazards involved.
- Page 7 Do not use this device in the immediate surroundings of a bath, shower, swimming pool or any other water container. Risk of electric shock. This product is not suitable for bathroom use. The device must be placed where the switches and controllers ...
-
Page 8: Technical Information
Allow the device to cool down before touching or transporting the device, or attempting maintenance work. It is not uncommon to hear banging or creaking noises from the radiator during the heating cycle. This is caused by the expansion of the metal components as heat is introduced. -
Page 9: Installation
4. Installation 4.1. Fixings Before beginning installation, check that all fixings are supplied. The radiator should only be mounted with the manufacturer’s fixing Component Long Screw Short Screw Quantity Component Wall Plug Upper Bracket Quantity Component Lower Bracket Curved Plate Quantity Moda_SmartStone_V1-01_18072024... -
Page 10: Wall Mounting Instructions
4.2. Wall mounting instructions Note – The fixings supplied are designed for installation onto solid walls. Alternative fixings may be required if installing onto plasterboard or other non-standard wall types. It is the responsibility of the installer to evaluate the fitting location and determine if alternative fixings are required. WARNING Mounting closer than recommended can cause overheating of the ... - Page 11 2. Mark the locations of the 4 drill holes required for your product size. Fit the wall plugs into the holes and use the wall mounting screws to fix the brackets in place (Figure 2, Table 2). Figure 2: Bracket positions on the wall Table 2: Drill hole distances by product size Model Distance...
- Page 12 6. Secure the curved plate into the bracket slot with the short screws (Figure 4). Figure 4: Securing curved plate with short screws 7. Lift the unit and slide the upper brackets into the 2 holes between the end panels (Figure 5). Figure 5: Fitting brackets onto the radiator 8.
- Page 13 Figure 8: Securing the radiator onto wall brackets 11. Insert the plug into a standard 230V socket. ATTENTION: The Moda SmartStone may be hard-wired, provided it is wired by a qualified electrician according to all national wiring regulations. Blue: Neutral (N or black terminal) ...
-
Page 14: Using Your Moda Smartstone
4.3. Using your Moda SmartStone Do NOT! DO NOT use in a bathroom or in the immediate surroundings of a swimming pool or other water container. Risk of electric shock, injury or death. DO NOT use in rooms where potentially flammable or ... -
Page 15: Control Panel
5. Control Panel 5.1. Display The radiator features an LED display with buttons. Weekday Daily Program Standby Increase Confirm Decrease Figure 9: Control Screen Layout and symbols Comfort Anti-frost Standby WiFi Device heating Connection Keypad Locked Program Open Window Detection 5.2. -
Page 16: Program
5.4.1. Comfort In comfort mode, the display shows the comfort icon. In this mode, the radiator heats to a constant set room temperature indefinitely. The icon displays when the radiator is actively heating. The set temperature can be adjusted between 5 °C and 29 °C using the + and - buttons. - Page 17 The 24/7 program allows you to set temperature schedules for each day of the week. You can choose from 7 pre-set 24-hour programs (P1-P7). These programs are fully customisable, allowing you to adjust comfort and economy settings for any time slot (Table 3). The default program schedule assigns different programs to weekdays and weekends: Monday - Friday (Days 1-5): P1 program is active.
- Page 18 3. Press OK to confirm and enter the program setting screen. 4. Use the + and - buttons to choose Monday’s program (P1-P7). 5. Press OK to confirm. 6. Repeat from step 4 to set the program for Tuesday through Sunday (Day 2 - 7).
-
Page 19: Open Window Detection
6. The program bars at the bottom of the display represent the 24 hours of the day. To adjust the settings for the specific hour: Use + to choose comfort mode Use – to choose eco mode Press OK to save the setting for the hour, and move to the next hour. ... -
Page 20: Temperature Compensation
3. Press the OK button to activate the keyboard lock function. The radiator will return to the home screen and will appear. 4. To unlock, press and hold OK for 3 seconds. Note: Child lock does not lock the standby button. 5.9. -
Page 21: Connecting To Wifi
6. Connecting to WiFi 6.1. Downloading the app The Moda SmartStone is designed to work with the Smart Life app. Scan the code below to go to the app. Press install and follow the app's instructions to create an account. - Page 22 4. Alternatively, you can add your radiator on manually. In the Smart Life app, select Add Manually and then choose radiator as the device type. Enter your WiFi password and tap Next. Tap Next again to start connecting your radiator to the WiFi network. ...
- Page 23 Troubleshooting If the radiator does not connect on the first attempt: Repeat the steps above but try the alternate pairing method. Hold down to switch to pairing mode. Reset the radiator by turning it off at the wall socket, waiting a few ...
-
Page 24: Using The App
7. Using the App NOTE - The Smart Life app is a constantly evolving third party system. The guide below was correct at time of printing but may differ slightly from future versions. 7.1. Home overview The Smart Life app can be used to control multiple devices. -
Page 25: Choose Mode
7.3. Choose mode Tap the Mode icon to choose the heating mode. The three options correspond to the three modes on the control panel: comfort, eco and anti-frost. 7.4. Program schedule Choose Program mode on the app then tap Program Data icon A program consists of 24 hourly intervals for each day, which you can set to comfort or eco temperature. -
Page 26: Troubleshooting
8. Troubleshooting Table 4: Troubleshooting Issue Solution Radiator not heating First, ensure the radiator is correctly plugged in and the main power switch is on. Then, increase the desired temperature setting on the radiator’s control panel. Make sure there are no items blocking the temperature sensor. -
Page 27: Cleaning
10. Warranty The Moda SmartStone Ceramic Electric Radiator carries a 2-year guarantee on the body, paintwork electrical components. Within the stated period, starting from the date the customer receives their unit, the supplier guarantees to repair or replace the unit where a fault is due to defects in materials or manufacturing. -
Page 28: Erp Ecodesign Information
Claims must be made with the establishment where the device was purchased. This warranty does not affect the customer’s consumer rights. 11. ERP Ecodesign Information Table 5: Outputs of the Moda SmartStone Heat Output 1000W 1500W... - Page 29 Table 6: Information requirements for electrical local space heaters Item Unit Type of heat input, for electric storage local space heaters only (select one) Manual heat charge control, with integrated thermostat [no] Manual heat charge control with room and/or outdoor [no] temperature feedback Electronic heat charge control with room and/or outdoor...
-
Page 30: Disposal
12. Disposal In accordance with WEEE Directive 2012/19/EU, the icon with the crossed-out waste bin on electrical or electronic equipment stipulates that this equipment must not be disposed of with household waste at the end of its life. You will find collection points for free return of waste electrical and electronic equipment in your vicinity. -
Page 31: Manufacturer Information
13. Manufacturer Information The Moda SmartStone Ceramic Electric Radiator is an electric heating product produced for Moda Heating and sold through various retailers and distributors. For technical advice or help concerning the Moda SmartStone Ceramic Electric Radiator, contact the retail establishment or distributor from which the product was purchased. - Page 32 Blank Moda_SmartStone_V1-01_18072024...
