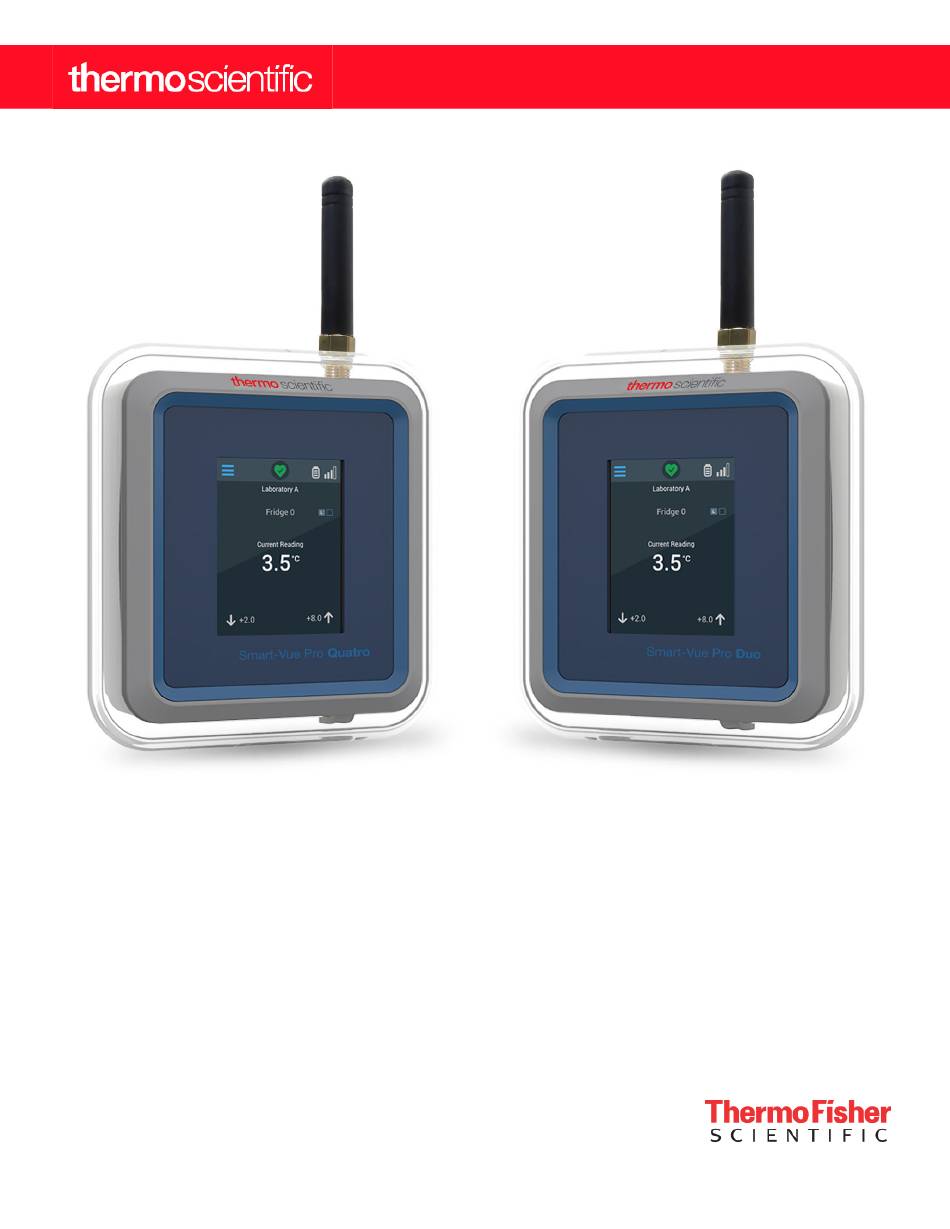

- Page 1 Smart-Vue Pro Duo/Quatro User Guide 331676H05 • Revision C • 1/17/2022...
- Page 2 IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in damage to the unit, injury to operating personnel, and poor equipment performance. CAUTION All internal adjustments and maintenance must be performed by qualified service personnel. Material in this manual is for informational purposes only.
-
Page 3: Table Of Contents
Power Options ............16 Getting Started ............17 Prerequisites for Getting Started ......17 Attach Antenna ............17 Activating the Smart-Vue Pro Duo/Quatro Data Logger for LoRaWAN ........17 Installing the Smart-Vue Pro Duo/Quatro Data Logger ..............20 Optimizing Wireless Performance ......20... - Page 4 Temperature/Humidity Smart-Sensors™ ....26 Dry Contact Input Sensor ........26 4-20 mA and 0-5 V Loop Sensors ......30 Smart-Vue Pro Duo / Quatro User Interface ....31 Using the Touchscreen ........... 31 Entering your PIN Code ........... 31 Sensor Display and Control ........32 Screen Backlight .............
- Page 5 Appendix 1 – Smart-Vue Pro Duo/Quatro Battery Life ..............51 Estimated Battery Life ..........51 Appendix 2 - Troubleshooting ........52 WEEE Compliance ............53 Contact Information ............ 54...
-
Page 6: Models
Models Models in the below table shows the modules covered in this manual. Note: Smart-Vue Pro Duo/Quatro below part numbers transition shall be effective from 20 December 2021. Table 1. Transition Part Number Details Initial Part Number New Part Number Description... -
Page 7: Safety Notices
Contact a doctor or emergency service immediately. Battery liquid is corrosive and can damage vision or cause blindness or chemical burns. Safety Notices Smart-Vue Pro Duo / Quatro User Guide... -
Page 8: Device Maintenance
CAUTION: Using accessories, such as antennas, that Thermofisher has not authorized or that are not compliant with Thermofisher accessory specifications may invalidate the warranty. Smart-Vue Pro Duo / Quatro User Guide Safety Notices |... -
Page 9: Regulatory Information
1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. Regulatory Information Smart-Vue Pro Duo / Quatro User Guide... - Page 10 Electrical Equipment) and the amendment of (EU) 2015/863. Do not dispose of this product with household trash. Thermo Scientific recycles this product under certain conditions. Contact us for more information. Smart-Vue Pro Duo / Quatro User Guide Regulatory Information |...
-
Page 11: Introduction
Introduction Smart-Vue Pro Duo/Quatro is the new generation of wireless Data logger: Refers to Smart-Vue Pro Duo/Quatro device. data logger by Thermo Scientific. Equipment: Refers to the equipment or space (such as a This user guide presents an overview of Smart-Vue Pro... -
Page 12: Intended Use
(Smart-Vue Pro), additionally, Smart Connect permits the user Wireless Topologies to push the data to the cloud. The Smart-Vue Pro Duo/Quatro data logger and the Smart-Vue Pro Web application enables the user to manage the entire Smart-Vue Pro solutions. The... -
Page 13: Information Flow
• Unlimited data storage with Smart-Vue Pro web architecture. • Internal data logger memory for upto 4,000 readings per channel (8,000 total on Smart-Vue Pro Duo; 16,000 total on Smart-Vue Pro Quatro). • Alarm transmission upon detection. • ISO 17025 (COFRAC) calibration, in-house certified laboratory calibration or NIST traceable calibration. - Page 14 Table 2. Smart-Vue Pro LoRaWAN Operation Step Process Comments For best wireless performance, follow Place your Smart-Vue Pro Duo/Quatro data logger recommendations when physically placing your device, appropriately to monitor your equipment. (Installing the Smart-Vue Pro Duo/Quatro Data Logger). Plug in wired sensors (which are recognized automatically) and/or pair Bluetooth sensors (for future).
-
Page 15: Hardware Overview
See Installing the Smart-Vue Pro Duo/Quatro Data Logger to check procedure of mounting the device. The front of the Smart-Vue Pro Duo/Quatro data logger is comprised of two user interface elements, the touch screen LCD and the clear plastic LED status ring around the casing. -
Page 16: Bottom View
Bottom View Compatible Sensor Types The Smart-Vue Pro Duo/Quatro data loggers supports a Smart-Vue Pro Duo/Quatro data loggers supports a range of combination of wired sensors. Thermo Fisher external digital temperature sensors and smart-sensors. • Up to 4 parameters on Smart-Vue Pro Quatro. -
Page 17: Package Contents
Package Contents • One Smart-Vue Pro Duo/Quatro wireless data logger with antenna. • Two 3.6 V LS17500 batteries (with additional screw for battery cover). • One data logger mounting kit with magnetic holder and screws. • 2 x 1.5 m (about 5 feet) flat sensor extension cables, sensor ties and hooks. -
Page 18: Technical Specifications
Technical Specifications Monitoring Characteristics • Read interval with Bluetooth operation: 5 seconds minimum on Smart-Vue Pro Duo or 15 seconds minimum General on Smart-Vue Pro Quatro, up to 12 hours maximum. • Read interval with LoRaWAN operation: 1 minute to •... -
Page 19: Casing & Dimensions
Magnet (for use on metallic, non-painted surfaces). • Screw mount (optional locking with padlock). In this case, use two appropriate screws in compliance with regulatory requirements and safety practices. 14 | Technical Specifications Smart-Vue Pro Duo / Quatro User Guide... -
Page 20: Mounting Kit
Dimensions Data Logger (in mm) Figure 9. Smart-Vue Pro Duo/Quatro data logger dimensions Mounting Kit Figure 10. Smart-Vue Pro Duo/Quatro mounting kit details Smart-Vue Pro Duo / Quatro User Guide Technical Specifications |... -
Page 21: Power Options
Power Options The Smart-Vue Pro Duo/Quatro data logger can be powered by two replaceable internal batteries (3.6 V) located behind your device or by AC power using the provided 5 V DC adapter. Battery Characteristics • 2 x SAFT LS17500 batteries: Lithium thionyl chloride A-size bobbin cell. -
Page 22: Getting Started
LoRaWAN network. of the Smart-Vue Pro Duo/Quatro data logger you are trying The antenna is provided in the package with your data logger. to connect or that you have access to a carrier-operated Smart-Vue Pro LoRaWAN network. - Page 23 “-” signs indicated Pro Duo/Quatro data logger you are trying to connect. for batteries After you turn on the power of the Smart-Vue Pro Duo/Quatro data logger, specify your geographical region to determine the Smart-Vue Pro LoRaWAN frequency used for wireless communication.
- Page 24 Note: If you are using your data logger with bluetooth connectivity, you must use the Smart Connect mobile application to configure and start data logging and interact with your Smart-Vue Pro Duo/Quatro data logger. Smart-Vue Pro Duo / Quatro User Guide Getting Started |...
-
Page 25: Installing The Smart-Vue Pro Duo/Quatro Data Logger
Make sure the data logger is not placed on an electrical conduit or cable tray (such as those used for computer The Smart-Vue Pro Duo/Quatro data logger can be mounted network cables). easily on various surfaces. The data logger holder can be •... - Page 26 CAUTION: It is not necessary to use the security padlock when wall-mounting the data logger. 4. To remove the data logger from the holder, proceed in the reverse order. Smart-Vue Pro Duo / Quatro User Guide Installing the Smart-Vue Pro Duo/Quatro Data Logger |...
-
Page 27: Using External Sensors
Pt100 Smart-Sensors the Smart-Sensor where all sensor readings are adjusted for maximum accuracy. The following image shows a Smart-Vue Pro Duo/Quatro data • It is a simple plug and play functionality with no special logger with an external Pt100 sensor connected via the configuration or manual update required. - Page 28 Place the cable under the tank gasket utilizing the notch at the 12 o’clock position. It is recommend to install Pergamum sealant where the cable passes through the notch. Smart-Vue Pro Duo / Quatro User Guide Using External Sensors |...
-
Page 29: Digital Temperature Sensors
Then, connect the other end of the flat cable into the end of the Smart-Vue Pro Duo/Quatro wireless data loggers. Figure 23. Smart-Vue Pro Duo/Quatro data logger with external digital sensor 24 | Using External Sensors... -
Page 30: Placing The Sensor
Figure 24. Smart-Vue Pro Duo/Quatro data logger with external digital sensor Placing the Sensor 1. If you have a Smart-Vue Pro Duo/Quatro data logger with one or more external sensors, the best solution is to use your equipment’s access port or specific opening to Figure 26. -
Page 31: Temperature/Humidity Smart-Sensors
Figure 27. Dual temperature-humidity sensor Placing the Sensor Mount the Smart-Vue Pro Duo/Quatro data logger in the desired location using the holder provided. Choose the attachment method that works best for your situation and Figure 28. - Page 32 Plugging the Connector Cable into your Data Logger Start by connecting the dry contact connector cable into the input jack on your Smart-Vue Pro Duo/Quatro data logger. 1. Insert the jack into the hole on the bottom left-hand side of the data logger.
- Page 33 Figure 34. Dry contact loop showing Normal status 3. If the loop is not currently in its normal state, the sensor information screen shows “Triggered”. 28 | Using External Sensors Smart-Vue Pro Duo / Quatro User Guide...
- Page 34 Normally open detected as “open” Figure 37. Electrical representation of open loop CAUTION: The Smart-Vue Pro Duo / Quatro data logger maintains a low charge on the current loop to detect when the loop is open or closed. For a device that is “normally open”, a status change is detected if the loop closes.
-
Page 35: Ma And 0-5 V Loop Sensors
Read values are converted into useful information by the Smart-Vue Pro web application, then displayed both in the web application and on the Smart-Vue Pro Duo / Quatro data logger display. Figure 38. 4-20 mA / 0-5 V Smart-Sensor Sensor wiring:... -
Page 36: Smart-Vue Pro Duo / Quatro User Interface
Smart-Vue Pro Duo / Quatro User Interface The Smart-Vue Pro Duo/Quatro data logger offers a highly visible color LCD screen and a simple menu system.You can easily navigate through data logging pages and menu settings using the data logger’s touch screen even while wearing protective gloves. -
Page 37: Sensor Display And Control
Status bar Simultaneous display of data logging sessions Figure 40. Smart-Vue Pro Duo/Quatro with two data logging sessions in progress 32 | Smart-Vue Pro Duo / Quatro User Interface Smart-Vue Pro Duo / Quatro User Guide... -
Page 38: Status Bar
Indicates that there are no alarms in any of the data logging sessions currently running on the data logger. If any alarms are detected, the icon turns red. Battery level indicator displays the power level of the Smart-Vue Pro Duo/Quatro. Smart-Vue Pro LoRaWAN network status: Indicates wireless network status with signal strength bars (4 bars for best signal, 1 bar if signal is weak). -
Page 39: Data Logging
Figure 42. One active data logging session sensor(s) and transfers data wirelessly to the Smart-Vue Pro web platform at The Smart-Vue Pro Duo/Quatro display always shows the key regular intervals, configured via the information about the sensor: Smart-Vue Pro web application. Data transmission to the web platform occurs 1. -
Page 40: Screen Backlight
Instant Reading Screen Backlight Data on the Smart-Vue Pro screen is refreshed periodically. When the Smart-Vue Pro Duo/Quatro is on battery power, the As a result, the temperature in the monitored environment backlight is managed to preserve battery life. The backlight... -
Page 41: Configuration Menus
Configuration Menus The Smart-Vue Pro Duo/Quatro data logger includes configuration menus to interact with the data logger and setting specific parameters. Tap the menu bars to open configuration menus. Figure 47. Accessing Smart-Vue Pro Duo/Quatro configuration menus 36 | Configuration Menus... - Page 42 LoRaWAN or bluetooth wireless communication. Features are described in the following sections: Menu structure of data logger using Smart-Vue Pro LoRaWAN Figure 48. Menu structure for Smart-Vue Pro LoRaWAN wireless operation Smart-Vue Pro Duo / Quatro User Guide Configuration Menus |...
- Page 43 The structure is the same as for Smart-Vue Pro LoRaWAN operation, but some options that are not available in bluetooth mode are grayed out. Figure 49. Menu structure for Bluetooth wireless operation 38 | Configuration Menus Smart-Vue Pro Duo / Quatro User Guide...
-
Page 44: Settings
3. Tap Save to confirm the selected unit and return to the previous menu. 4. Tap the menu icon ( ) to return to the home screen. Figure 51. Choosing display language Smart-Vue Pro Duo / Quatro User Guide Configuration Menus |... -
Page 45: Decimal Places
3. Tap Save to confirm the selected unit and return to the previous menu. 4. Tap the menu icon ( ) to return to the home screen. 40 | Configuration Menus Smart-Vue Pro Duo / Quatro User Guide... -
Page 46: Sensors
Swapping Sensors 6. Counter shows total number of sensors and current sensor. With your Smart-Vue Pro Duo/Quatro data logger, you may The screen returns to the Sensors menu once the display directly swap wired sensors that are physically connected to has cycled through all sensors. -
Page 47: Advanced Menu
Figure 58. Features in the Advanced menu To limit access to the Smart-Vue Pro parameters and prevent It is imperative to replace Smart-Vue Pro Duo/Quatro data unwanted changes, the Advanced menu is protected by a logger batteries when the battery indicator is down to one personal access code and recommended for qualified bar, before data logging becomes unreliable. - Page 48 You may use the range test feature in the Advanced menu to secure web services. Data loggers communicate with the ensure that your Smart-Vue Pro Duo/Quatro data loggers are receiver to exchange data with the Smart-Vue Pro web within wireless range of the configured Smart-Vue Pro application and services.
-
Page 49: Lorawan Radio Performance
You may use the Test command to make sure that your radio is performing. Based on results, you may choose to Smart-Vue Pro Duo/Quatro is able to communicate with the adjust placement or positioning of the data logger. server without entering the Advanced menu (as described above). -
Page 50: Data Synchronization
Using the Data Logger in Bluetooth-only Mode The Smart-Vue Pro Duo/Quatro data logger may be used in Figure 65. Server connection test results “Bluetooth-only” mode, that is, without any LoRaWAN functionality. The data logger can be accessed using the... -
Page 51: Alarm Management
When the sensor value returns to its normal range or when detected by your system. the user has manually acknowledged the alarm, the Smart-Vue Pro Duo/Quatro is displayed with its default When your system detects an alarm, whether a limit alarm or background theme. -
Page 52: Alarm Actions
Acknowledging an Alarm Snoozing an Alarm When an alarm is in progress the Smart-Vue Pro Duo/Quatro data logger remains in an alarm state as long as the alarm conditions are present. If an alarm condition is encountered and the buzzer is... - Page 53 In that case, if a reading on your Smart-Vue Pro Duo/Quatro data logger goes over a programmed limit value, a stopwatch (1) is displayed in the upper left-hand corner to indicate that the data logger is in a “pre-alarm”...
-
Page 54: Maintaining Your Data Loggers
Maintaining your Data Loggers Replacing Batteries The Smart-Vue Pro Duo/Quatro data logger runs on batteries and/or AC power (via an adapter plugged into the USB port). Batteries are not installed prior to delivery. CAUTION: Data in data logger memory is lost if you remove both batteries. -
Page 55: Cleaning Instructions
2. Do not use any aggressive cleaning agents or scratching cleansers that might damage your data logger. 3. Do not submerse the data logger in any liquid, as the casing is not waterproof. 50 | Maintaining your Data Loggers Smart-Vue Pro Duo / Quatro User Guide... -
Page 56: Appendix 1 - Smart-Vue Pro Duo/Quatro Battery Life
3. Screen backlight: The backlight is activated each time you press the Smart-Vue Pro Duo/Quatro screen but also when the data logger enters into an alarm condition. Extended use of the screen backlight reduces battery life considerably when the data logger is running on battery power. -
Page 57: Appendix 2 - Troubleshooting
If you modify data logging settings in Smart-Vue Pro, the values on the Smart-Vue Pro Duo/Quatro screen will be updated when the next reading interval occurs. Wait for the next transfer interval to get your data updated. - Page 58 This page is intentionally left blank.
-
Page 59: Weee Compliance
WEEE Compliance WEEE Compliance. This product is required to comply with the European Union’s Waste Electrical & Great Britain Electronic Equipment (WEEE) Directive 2012/19/EU. It is marked with the following symbol. Thermo Fisher Scientific has contracted with one or more recycling/disposal companies in each EU Member State, and this product should be disposed of or recycled through them. -
Page 60: Contact Information
Contact Information Thermo Fisher Scientific products are backed by a global technical support team ready to support your applications. We offer cold storage accessories, including remote alarms, temperature recorders, and validation services. Visit www.thermofisher.com or call: Countries Sales Services North America +1 866 984 3766 (800) 438-4851 India...
