- Page 1 Selected Device : Story & Clark Grand Piano Sessions Live Sync-Along Series Sync-Along Series PNOmation Control QRSTV on ROKU PNOscan Optical Recording On Desk As MIDI Mobile and Watch XLR Input and AI Controller Trumpet Add On QRS Part #: 94000 man94000.01...
- Page 2 User Friendly Experience There are several ways to interact with your PNO4: buttons and touch screens in its built-in App on the PNO4 controller or from your mobile or tablet. Your PC or Mac with the PNO4’s assigned IP address through the QRSTV ROKU Channel, Google Home or Alexa, or the QRSConnect Music maker platform.
-
Page 3: Reference Notes
QRS PNO 4 User Guide mation Access Via Local Mobile App Access Via QRSTV Roku PNO4 Controller Slid Back Misc Notes Serial Number: Dealer Name: Dealer Number: Technician Name: Technician Number: Tuner Name: Tuner Number: QRS Technician Contact Info: QRS Sales Rep Contact Info: Misc Notes qrsmusic.com... -
Page 4: Table Of Contents
MIDI Controller PNO4’s Accessories and Parts XLR SingAlong PNO4 Controller I/O Piano & Trumpet future 26-27 PNO4 Start Up LEDs Understanding Warranty Contact Initial Setups - Using Your Mobile Setup Using PNO4’s Controller Updating Your Software OS and Music Using The PNO4’s Local Screen... -
Page 5: Pno4'S Major Components
4 User Guide mation PNOmation 4’s Major Components QRS Part Number Description Quantity Image 94000 PNO4 Controller PNO4 Slide Bracket & Auto 94101 Engage Smart Board MIDI 94108 Interface (SBI) Solenoid Rail Assembly for 1 rail holds 80 solenoids 70050A... -
Page 6: Pno4'S Accessories And Parts
QRS PNO4 Power Adapter 940003 PNO4 Stub Antennas 94109 (2)? SBI - RJ45 to 5 Pin MIDI I/O 80421 SBI to Legacy Driver Board Interface - PNO4 DB37 94110 USB C to 5 Pin MIDI In & Out (Optional) 76142 QRS PNOscan 70555... - Page 7 35. MicroSD - Sounds and Storage 22. Wi-Fi BT Antenna 10. Enter/Select what is highlighted on 36. USB-C 23. MINI Display Port the screen 37. USB-A Host 24. PCM Audio In 11. Power On/Off and Reboot 25. SPIDF qrsmusic.com 800.247.6557 QRS Music Technologies, Inc.
-
Page 8: Pno4 Start Up Leds Understanding
Right to Left On Off Right to Left On Right to Left On Right to Left On Boot Up On Off In On Off In In Sequence Off In Sequence Off In Sequence Off In Sequence Sequence Sequence qrsmusic.com 800.247.6557 QRS Music Technologies, Inc. -
Page 9: Start Here
Other Initial Set Ups Using the App Start Here These Steps will help you get started with the most popular features that QRS’s PNO4 offers. We welcome your feedback, on any features, music or ideas to improve the PNO4 Just drop us an email at qrssupport@qrsinc.com. -
Page 10: Setup Using Pno4'S Controller
Select “Add Profile” Fill out the form - This may be easier to do with your mobile device by going to QRSConnect.com or logging into the PNO4 system with your device (tablet or phone) If you have a registration select Log In. -
Page 11: Updating Your Software Os And Music
If you have your own music the best approach is drag and drop or use a USB. • It is important to maintain an updated software OS. Many new features are added on a regular basis. qrsmusic.com 800.247.6557 QRS Music Technologies, Inc. -
Page 12: Using The Pno4'S Local Screen
Using the PNO4’s Local Screen NOTE: PNO4’s local UI is an answer for customers who have smart phone fatigue and do not want to mess with connection issues where wireless is not a necessity. The interface is controlled entirely with the hard buttons or if you like, a mix of touch and buttons. -
Page 13: Understanding The Top Navigation Bar
Understanding the Top Nav Bar Bluetooth 1(PNO4 BT1) The home icon: will bring you back to the home Scan screen. The hard button on the PNO4 controller will do the same thing if you hold it for 2s. A-In A-Out... -
Page 14: Play Piano Using Mobile
Filter button will allow you to change the order of presentation by type (Solo, SyncAlong..)The Sort button will allow you to to jump to another way of sorting, by artist, genre, playlist... coming soon more My Music Recordings Radio Purchased Complimentary Sessions qrsmusic.com 800.247.6557 QRS Music Technologies, Inc. -
Page 15: Practice - Record - Perform (Release 2)
When recording you select where you are recording Select All That Apply Track Structure Instrument List from. Default is the QRS PNOscan but it could also Piano Speaker Aux Out 2 Mix In be a MIDI input as well as an Audio input. Simply select all that apply. -
Page 16: Setups
• QRS has three types of pedals, basic with controlled release, position feedback and VC Control. The last being the most accurate in terms of timing and position, it is therefore more foregiving. Setups for the VC and Position Feedback models are coming soon. -
Page 17: Setups Volume Curves & Dynamics
Do this for all file types and volume levels • For file type dynamics play one of your favorite pieces and try different drop down selections - if its a QRS file use QRS MIDI File dropdown. If its a MIDI file not QRS use that drop down. -
Page 18: Pnoscan - Midi Playback
QRS SOLO FILE SETUP QRS AUDIO FILE SETUP PRACTICE SETUP EXTERNAL AMI SETUP VOICE PROMPT MIDI out adjustments are primarily for upgrades to systems that take a MIDI input and would like to enjoy QRS’s Content Library. qrsmusic.com 800.247.6557 QRS Music Technologies, Inc. -
Page 19: Test Files
You may have a small piano and large speakers or large piano and small speaker, or pipe through your home. File type Dynamics will also accomidate off the shelf content that is not standardized by the QRS music curators, in order for them to sound best. -
Page 20: Log Files - Clocks - Schedules
The only place you will need access will be the clock to schedule playback times and content, as well as when your system will reach out to QRS to download updates. It can set the voice prompt notifications to be muted outside of updates. -
Page 21: Use Cases

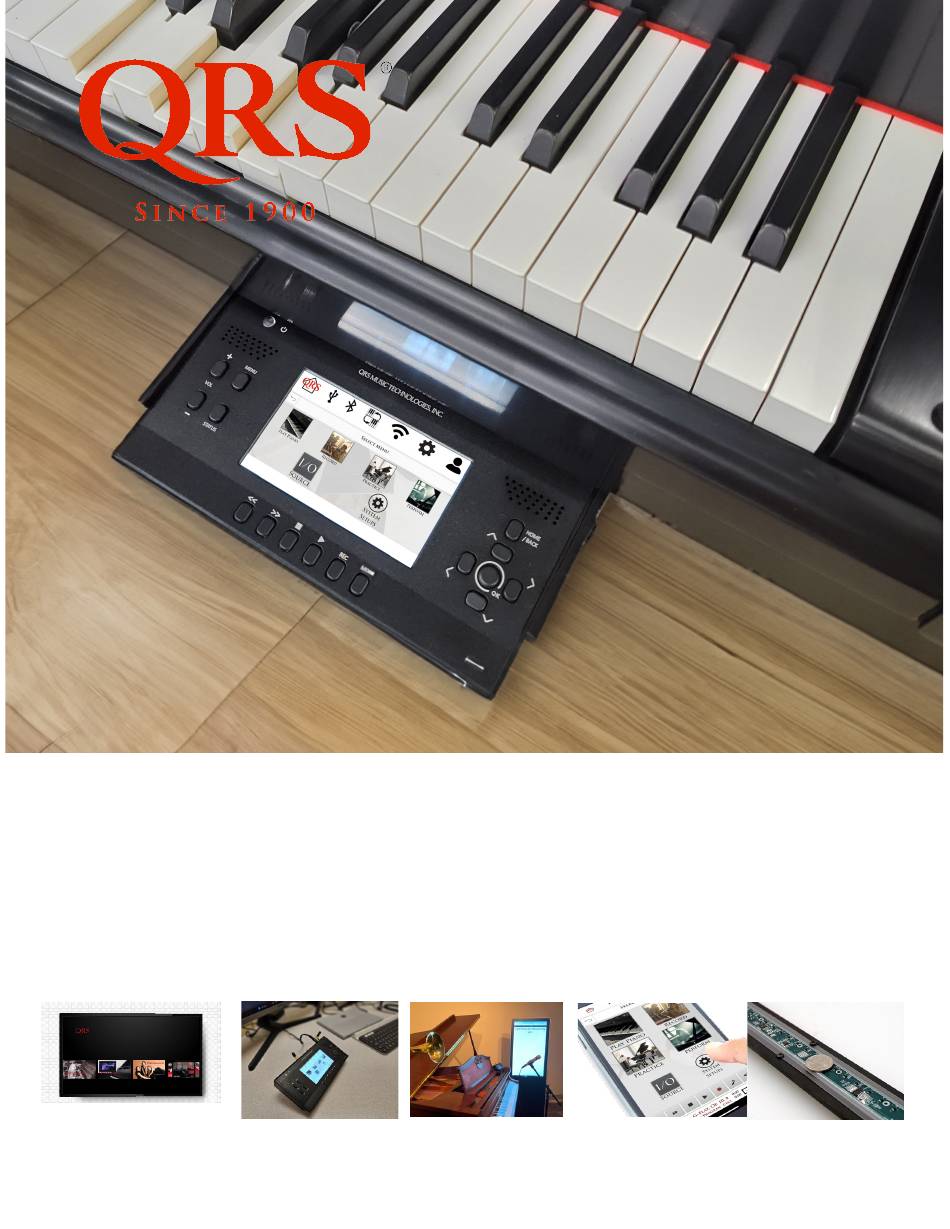

PNO4 Controller Slid Back PNO4 Controller Slid out PNO4 has two slide options - one for the front of the piano the other for the flat side of the grand piano (deeper slide). Both have an auto slide out option. -
Page 22: Pnoscan Studio
QRS PNO 4 User Guide mation PNOscan Studio PNOscan Studio uses the PNOscan Key Sensor Strip in Conjunction with PNO4’s controller to deliver unprecidented recording, practicing, performing, and learning capabilities. qrsmusic.com 800.247.6557 QRS Music Technologies, Inc. -
Page 23: Midi Controller
If you are looking for a Digital Audio MIDI Controller with expandable memory for just about any MIDI focused task this can be adapted. Insert your own sounds or use included Standard MIDI. USB C to 5 Pin Q36 Powered Power Brick Antennas QRS USB C Com Headphones Audio XLR In MIDI Speaker Optional... -
Page 24: Xlr Singalong
If you would like to record your voice with or without piano - this is also available to you. The accessories below may or may not be required. USB C to 5 Pin Q36 Powered Power Brick Antennas QRS USB C Com Headphones Audio XLR In MIDI Speaker Optional... -
Page 25: Piano & Trumpet Future
Mounted on a Mic Stand with a stylish mount that protects your trumpet and looks great. USB C to 5 Pin Q36 Powered Power Brick Antennas QRS USB C Com Headphones Audio XLR In MIDI Speaker Mounting Bracket... -
Page 26: Warranty
(the “Shorter Warranty Period”) which is one year from the date that your dealer purchased the Product from QRS. If you cannot provide a proof of purchase date, you may contact us in the manner described below and we will assist you in determining the date that your dealer purchased the Product from us and determining the Shorter Warranty Period. - Page 27 Product which adversely affects the reliability of the product or component. 8. If the system was not installed by a Certified QRS installer the warranty will be the “Shorter Warranty Period”. Owner’s Responsibility In order to have rights under this warranty, you have the following responsibilities: 1.
-
Page 28: Contact
QRS Music Technologies, Inc. 269 Quaker Dr Seneca, PA 16346 800-247-6557 www.qrsmusic.com www.qrsconnect.com Q & A https://calendly.com/qrs-technical- support-team/pno4-q-a...
