Contacta RF-TX1-865 User Manual

Frequency Table
C410(823-832+863-865)
1 823.500 11 863.500 21 823.250 31 828.250 41 864.250
2 864.500 12 824.000 22 823.750 32 828.750 42 864.750
3 831.500 13 825.000 23 824.250 33 829.250
4 824.500 14 826.000 24 824.750 34 829.750
5 825.500 15 827.000 25 825.250 35 830.250
6 826.500 16 828.000 26 825.750 36 830.750
7 827.500 17 829.000 27 826.250 37 831.250
8 828.500 18 830.000 28 826.750 38 831.750
9 829.500 19 831.000 29 827.250 39 863.250
10 830.500 20 864.000 30 827.750 40 863.750
RF-TX1 Box Contents:
RF-TX1 865MHz/915MHz, USB-M100, RF-TX1-LM, Lanyard, Belt Clip, 2100mAh NiMH
rechargeable batteries.
Manufacturer's Declaration
This product meets the following standards:
Federal Communications Commission Interference Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
IMPORTANT NOTE:
To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted.
Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user's
authority to operate the device.
WEEE Statement
Electrical and electronic equipment must be disposed of at the end of their
lifespan separately from household waste.
Please dispose of this equipment at your local waste collection or recycling
centre. Please help to protect our environment.
Safety and Electromagnetic Emissions Certificates
Standard Compliance
RoHs compliant
Certificates (country dependent)
CE NCC
C-TICK TELEC
FCC
Contacta Systems Ltd
Office 13, Dana Estate
Transfesa Road
Paddock Wood
TN12 6UT
(Tel) +44 (0) 1732 223900 (UK)
sales@contacta.co.uk
4
D105(915-928)
1 915.500 11 924.500 21 923.000
2 927.500 12 925.500 22 924.000
3 921.500 13 926.500 23 925.000
4 916.500 14 916.000 24 926.000
5 917.500 15 917.000 25 927.000
6 918.500 16 918.000
7 919.500 17 919.000
8 920.500 18 920.000
9 922.500 19 921.000
10 923.500 20 922.000
Version: 9180-017-B4-1124
Made in Taiwan
Contacta Inc USA
4025 Tampa Rd,
Suite 1107A,
Oldsmar, Fl 34677
(Tel) +1 616 392 3400 (USA & Canada)
info@contactainc.com
Digital UHF Bodypack Transmitter RF-TX1-865/915 - User Manual

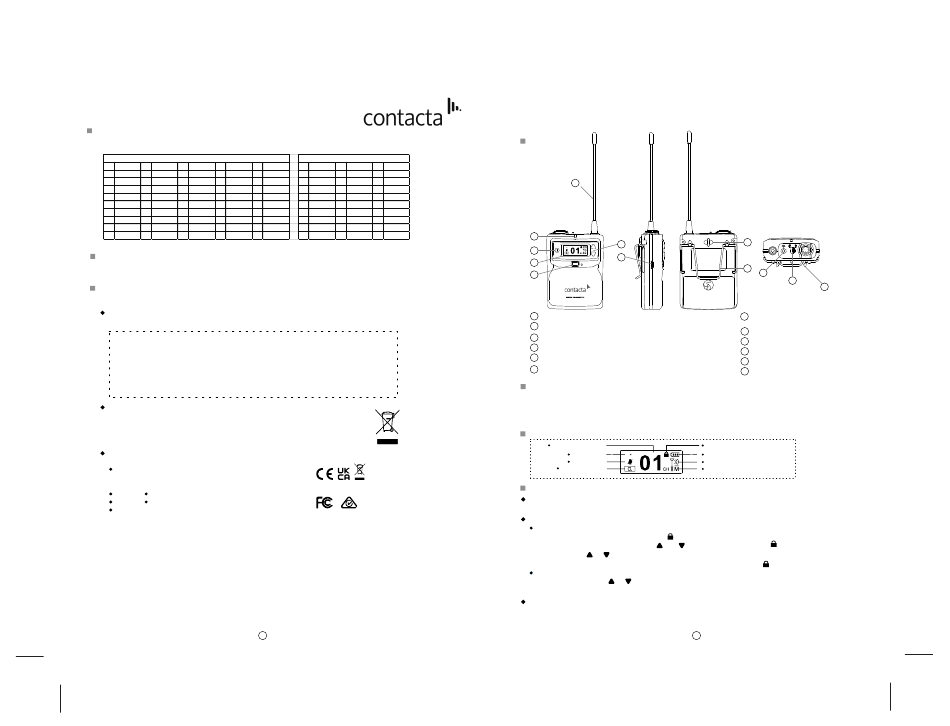

Illustration
1
2
6
3 C404
7
SET
4
5
RF-TX1-865/915
Flexible Antenna (Fixed. Do not attempt to remove)
1
Power / Talk LED indicator
2
3 Set button
4 Backlit screen
5 Power button
Up / Down button
6
RF-TX1 LED colour indication status:
Steady blue = A full battery during a charging cycle. This also indicates when Talk Mode is activated.
Flashing blue = This indicates when Mute function is on while the battery is fully charged.
Steady red = Indicates that Talk Mode is activated during low battery status - Charge soon.
Flashing red = Indicates that Mute Function is on during low battery status – Charge soon
Screen
Channel number
Custom ID
C404
Talk/Mute
Sound quality
General operation
Power on
Press and hold the power button for 1 second to turn the transmitter on.
Adjust channel manually
Channel lock is activated
The screen will automatically be locked ( ) when the transmitter is on and idle for 5 seconds.
To unlock the transmitter, press both and buttons for 1 second until
Now, press the or button to select another preferred channel. Once the newly selected channel is
determined, press the set button again to confirm the selection and then
Channel lock is de-activated
Simply short press the or button to select another preferred channel. The newly selected channel
will automatically be determined after the transmitter is idle for 1 second.
Check channel frequency
Short press the set button to check the frequency of selected channel. The transmitter will return
back to the Home Screen after being idle for 2 seconds.
1
8
9
10
11
12
7 Charging port
(when NiMH battery is in use)
8 Lanyard hole
Belt clip
9
3.5 mm audio-in jack
10
Talk / Mute switch
11
3-pole mini XLR microphone jack (for
12
use with RF-TX1-EM and RF-TX1-LM)
Channel lock
Battery status
RF power
Mic. gain
symbol disappears.
symbol will display again.
