Summary of Contents for Contacta RF-TXRM-D 865

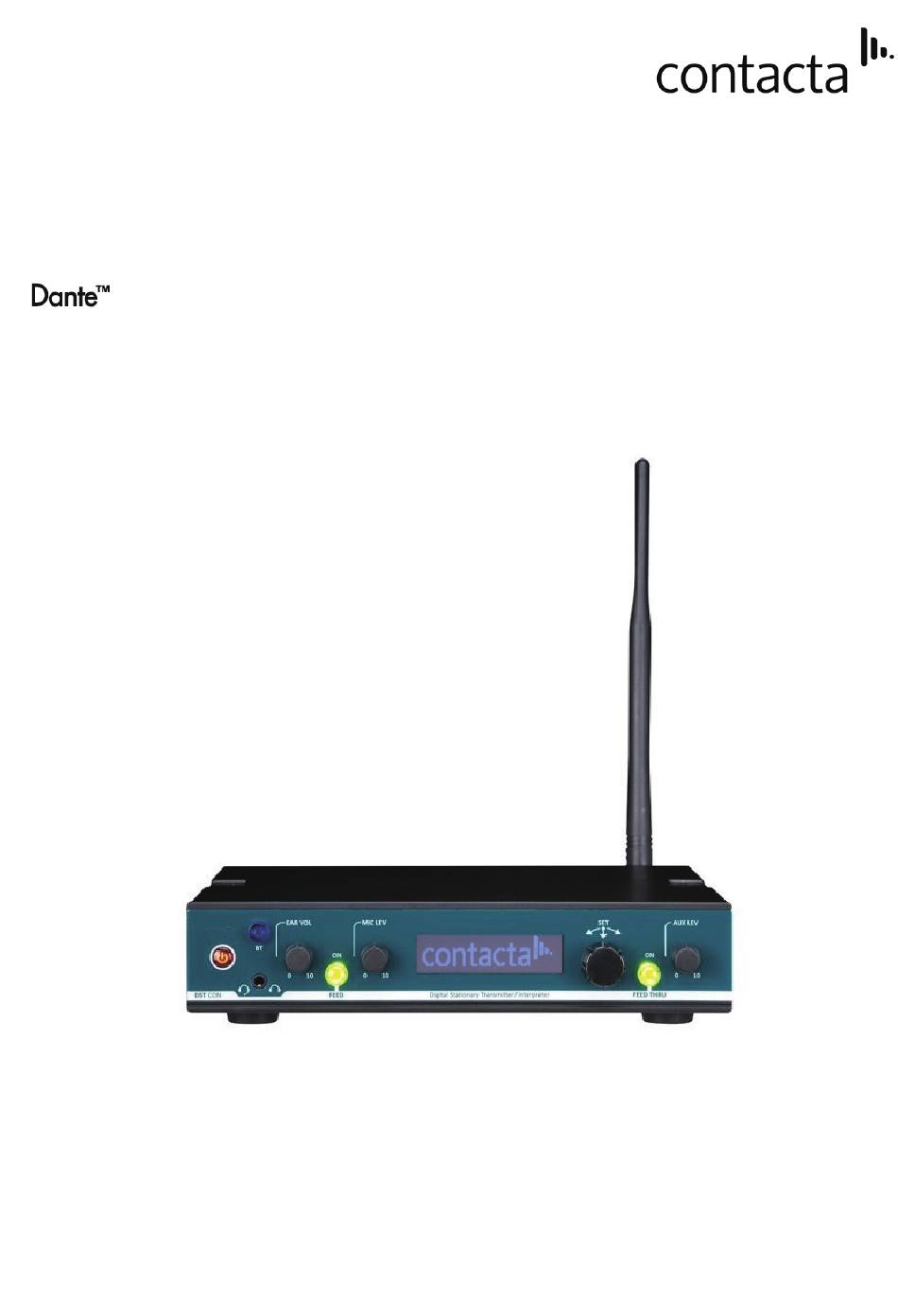

- Page 1 DIGITAL STATIONARY TRANSMITTER Model: RF-TXRM-D 865/915 User Manual...
- Page 2 -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the supplier or Contacta for assistance. This device complies with part 15 of the FCC Rules.
- Page 3 Table of Contents Product overview......................1 Front panel Rear panel Display overview......................2 Standby screen Setting screen Connecting instruction......................3 Dante Connection Instruction....................4 Operating instruction......................5 Turn the transmitter on Unlock the channel Check channel frequency Monitor audio via headphone Activate mic / aux func�on Turn the transmitter off Compatible receiver RF-RX1....................5 Interface...
- Page 4 Digital Stationary Transmitter Product overview Front panel CH 0 1 Power button 3.5 mm headphone / headset-mic socket Backlit Bluetooth bu�on Headphone volume control Backlit Mic (Transmi�er) / Feed (Interpreter O/I) bu�on Mic level control OLED Display Menu / Set jog dial Backlit Aux (Transmi�er) / Feed Thru (Interpreter O/I) bu�on Aux-in level (volume) control Rear panel...
- Page 5 Digital Stationary Transmitter Display overview Standby screen CH 0 1 Mode Transmitter (default) Interpreter O To work with 10-way Language Router LR-10 - *Mode not ac�vated with RF-TXRM 865/915 Interpreter I RF power Low (default) Audio level This fluctuates upon audio signals. Aux-in level Lo (default): this setting is recommended if the transmitter will be connected with audio source, such as mp3, whose level is lower.
- Page 6 Digital Stationary Transmitter Connection instruction Connecting the transmitter with supplied TNC rod antenna Connecting the transmitter with mixer or recording device Connecting appropriate RCA cable with the transmitter and other audio source (ex. mixer or amplifier) Connecting suitable microphone with the transmitter and switching mic type correctly Connecting the transmitter with network (Dante Controller)
- Page 7 Digital Stationary Transmitter network setup network (switch) shielded CAT5e or CAT6 cable shielded CAT5e or CAT6 cable Dante Controller on desktop computer or laptop shielded CAT5e or CAT6 cable Download Dante Controller on Audinate website (see the link below) before installa�on. h�ps://www.audinate.com/products/so�ware/dante-controller Connect RF-TXRM-D with network (switch) via shielded CAT5e or CAT6 cable.
- Page 8 Digital Stationary Transmitter Operating instruction (Mode: Transmi�er) Turn the transmitter on Press the power button for 1 second to turn the transmi�er on. Unlock the channel Channel will automatically be locked when the transmitter is on. Press and keep pressing the jog dial until symbol “...
- Page 9 Digital Stationary Transmitter Troubleshooting Trouble Solution Why can't I turn the Check if the transmitter is connected with power supply. transmitter on? Why can't I hear anything from Check if the bodypack receiver is turned on. bodypack receiver? Check if selected channel on both transmitter and receiver match.
- Page 10 Digital Stationary Transmitter Specifications Carrier frequency range 865/915 MHz (country dependent) RF output power Hi: 18 dBm Mid: 13 dBm (country dependant) Lo: 10 dBm TNC connector Antenna Headphone output 200 mW @ 32 ohm Inputs: Mic in: 3.5 mm & 6.3 mm Aux in: RCA Loop in: 6.3 mm Mic/Line Inputs:...
- Page 12 Contacta Inc (USA) Contacta UK 4025 Tampa Road Contacta Systems Ltd Suite 1107A O ce 13, Dana Estate Oldsmar, FL 34677 Transfesa Road (Tel) +1 616 392 3400 Paddock Wood (USA & Canada) TN12 6UT (Tel) +44 (0) 1732 223900...
