ROBLAN ASTRO V5 Series Installation Manual

LED HIGHBAY | CAMPANAS
ASTRO V5 (Sensor)
SENSMOVLUF3V5 |
SENSMOVF3V5:
passageway lighting) and provides multi-level control based on motion and/or daylight contribution. This product
provides twist lock terminals meeting the requirements of ZHAGA BOOK 18.
It controls 0-10 VDC LED drivers or dimming ballasts, and is rated for wet and cold locations. All control parameters
are adjustable via a wireless configuration tool capable of storing.

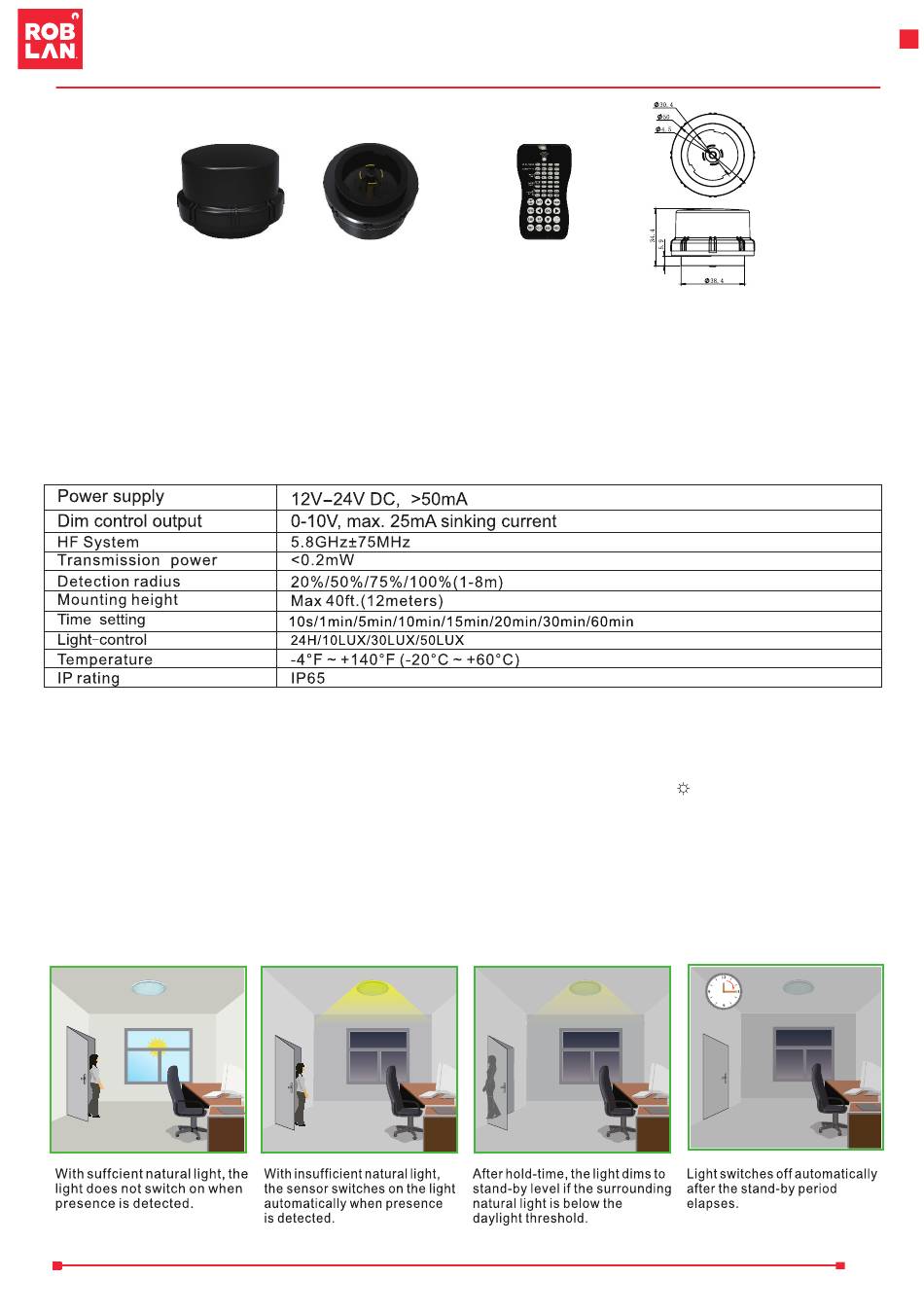

Specifications:
Warning:
Warm up time is 15seconds. After the sensor connects input power first time, the light will keep on 15seconds, then
go to dimming to work normally.
NOTE: Factory Default Setting: 100% sensitivity, Hold on time: 5min, Daylight sensor is
Dimming time: 60minitues.
NOTE: Any setting changed by remote control, the led light that sensor connect will on/off as confirm.
Dimming Function:
This function inside the motion sensor to achieve tri-lvel control, for some areas wich require a light change notice
before switch-off. The sensor offers 3 level of light: 100% --> dimmed light (natural light is insufficient) -->off, and 2
periods of selectable waiting time: motion hold-time and stand-by period, Selectable daylight treshold and freedom
of detection area.
Sensor
is mounts in an outdoor lighting fixture (street lighting, garden lighting,
Avda. de las Retamas 5. 45950 Casarrubios del Monte. Toledo. España
Tel: +34 91 616 50 20 Email: roblan@roblan.com
Remoto
MANUAL DE INSTALACIÓN
INSTALLATION MANUAL
MANUAL DE INSTALAÇÃO
, Dimming level: 30%,
