ROBLAN ASTRO F3 Series Installation Manual

LED HIGHBAY | CAMPANAS
ASTRO F3 (Sensor)
Notes before installation:
· Please read LED High bay Light use manual carefully before installation and follow the instructions.
· To avoid accidents like damage, dropping, electric shock, fire, please don't arbitrarily retrofit or change any lamp
fittings.
· Clean lamps with a soft wrung-out soapy cloth, and then wipe it with a dry cloth. Please don't wipe the lamps with
gasoline or other volatiles. Please don't spray insecticides on the lamps. Otherwise, it may cause discoloration or
damage.
· Please do not open the lamp without permission.
· Please turn off the power when in installation or maintenance.
1. Technical Parameters:
Referencias
ASTROFDLF3100BS/FS
ASTROFDLF3150BS/FS
ASTROFDLF3200BS/FS
2. Application:
Factories, Steel Mills, Steel Smelting Plants, Manufacturing Plants & Warehouses, Farms and lnductrial, Installations,
sport Facilities & Workshops , Storage Facilities &Warehouses, Supermarkets & Department Stores , Showrooms ,
Design Centers &Galleries.

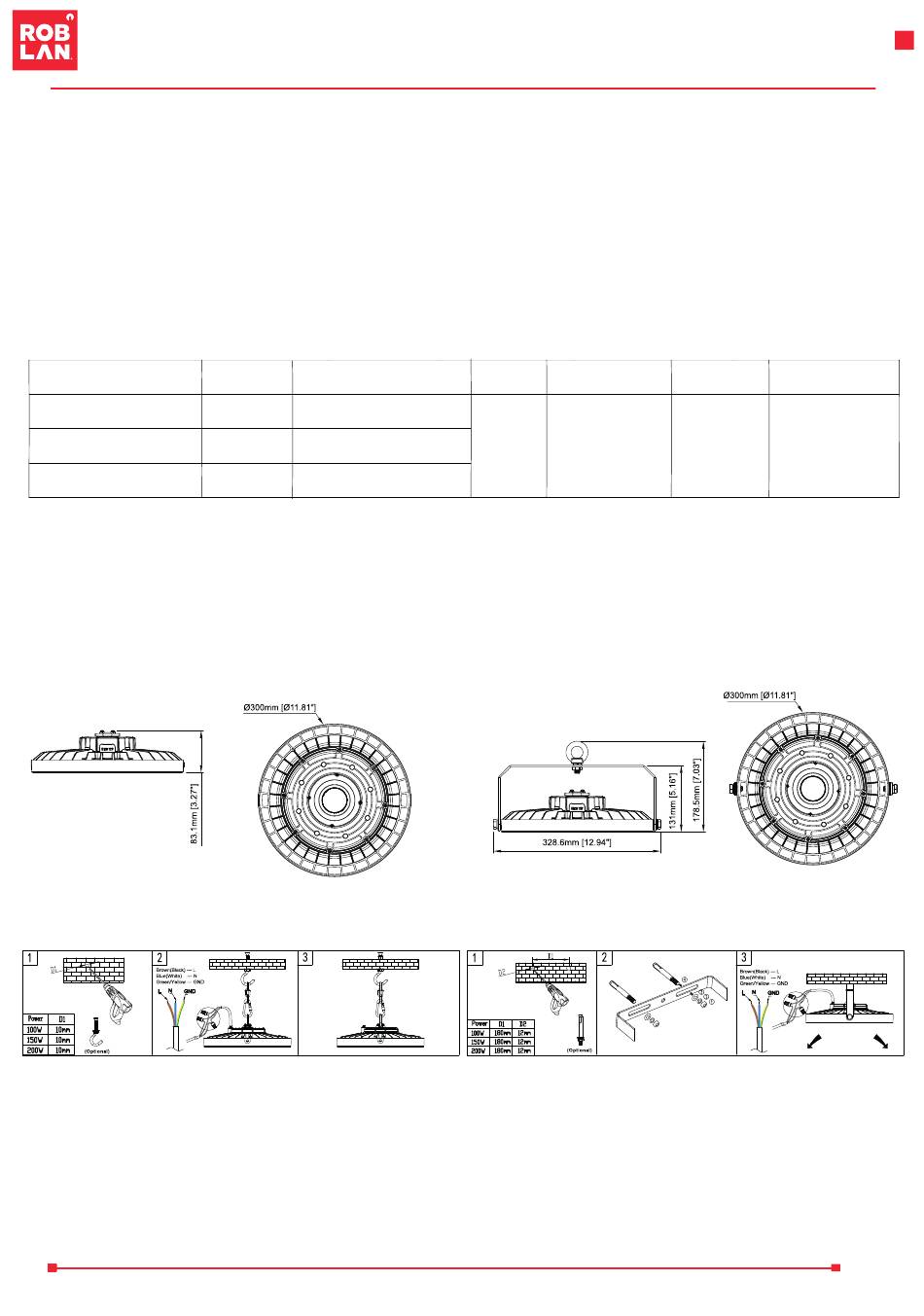

3. Dimension Diagram:
4. Installation instructions:
P1 (Mounting Ring) Standard
5. Attention:
1. Install by qualified electricians only.
2. Make sure that the supply voltage is disconnected before installation.
3. Make sure the voltage is suitable with the lamps ,and L/N/G connect properly.
4. AII the lights during installation or using should not be leds's cover vertical upside or Vertical down.
5. Don't open the lamps without Manufacturer's Authorization.
Power Adjust Switch
W
Low Mid
100
67w 100w
Low Mid
150
89w 120w
Low Mid
200
115w 158w
