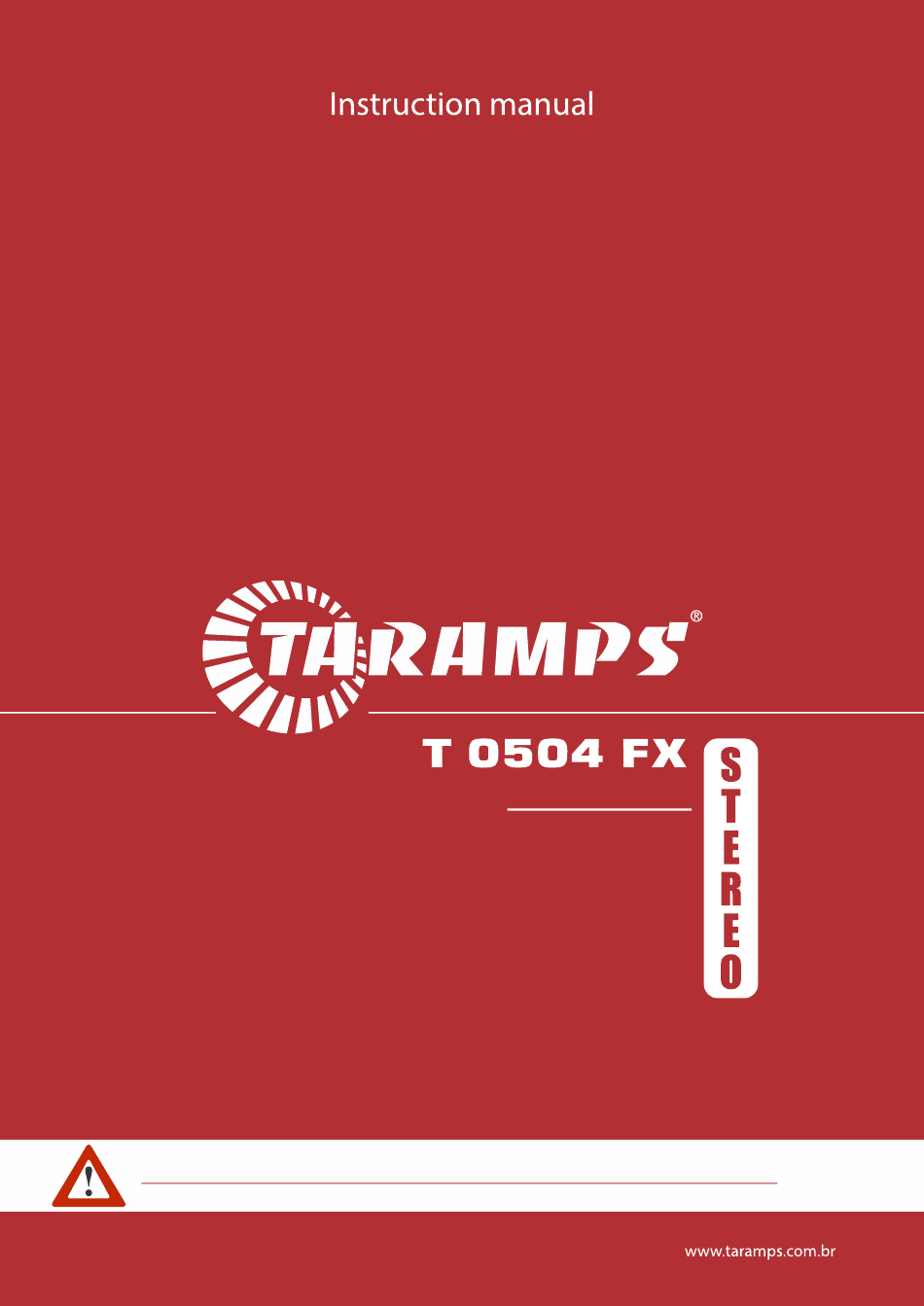

- Page 1 MULTICOLOR CAR SOUND MIXER The installation of this product must be made by a qualified professional.
-
Page 2: Term Of Warranty
12 months from the date of purchase. In case of defect during the warranty period, TARAMPS’ responsibility is limited to the repairing or replacement of the device of its own making. -
Page 3: Safety Requirements
Failure to heed the instructions will result in risk of injury to user or product damage. Taramps reserves the right to modify the contents of this document at any time without prior notice and does not have the obligation to apply the changes in units which were previously produced. -
Page 4: Important Recommendations
With a total of 92 variable lighting effects, causing a different visual effect for the user. See pages 08 and 09. The T 0504 FX MULTICOLOR (STEREO) features 5 input channels, CHANNEL 1 is balanced with two shared connections, one XLR and one RTS. This is a high-sensitivity, wide-gain input, which allows the use of a Microphone or LINE IN. -
Page 5: Product Overview
Product overview On this page you have an overview of the T 0504 FX MULTICOLOR (STEREO) sound mixer, you will better understand the commands on the next page. To be able to use all the product commands, carefully read all the commands below. - Page 6 Connections IN - Inputs BALANCED MIC / LINE Balanced inputs for XLR (Canon) and TRS connectors. ATTENTION: these inputs DO NOT HAVE PHANTON POWER. Note: This channel will be mixed on the L and R output. LINE Unbalanced inputs Inputs for RCA or (TRS 1/4”) STEREO connector. They allow you to receive signals from several types of sound gear such as HEAD UNIT/MP3-player, audio processors, etc...
- Page 7 Functions Controls Adjusts the input signal level. It must be used in case of input saturation, signaled by the CLIP LEDs. Increases or reduces treble by up to ±15dB Increases or reduces mid-high by up to ±15dB Increases or reduces mid-low by up to ±15dB Increases or reduces Low by up to ±15dB Regulates the amount of effect that will be applied to the ECHO FX...
- Page 8 KEYS RGB EFFECTS BALANCED 1-Change the effect: Short press. Each press changes the effect. 2-Turn off the RGB LEDs: Press the button for 2 seconds. The panel lights up white and dims until it turns off completely. Release the button at this point. 3-Turn the RGB LEDs back on: Press the button and the RGB LEDs will start working again.
- Page 9 RGB EFFECTS The T 0504 FX MULTICOLOR (STEREO) sound mixer has several lighting effects that can be chosen by the user. There are two operating modes that alternate depending on the state of the sound mixer: STANDBY MODE: activated when there is no audio output for 10 seconds. At this moment, the RGB EFFECTS button will set the lighting effect to standby mode.
- Page 10 AUDIO EFFECTS TABLE 4 comets from red to green 4 comets from red to blue 4 comets from green to blue 4 comets from pink to purple 4 comets from blue to purple 4 comets from white to pink vu-meter mono: lilac background, scale from green to red vu-meter mono: white background, scale from green to lilac vu-meter mono: yellow background, scale from blue to green vu-meter mono: cyan background, scale from green to red...
-
Page 11: Installation
Power and activation The T 0504 FX MULTICOLOR (STEREO) was developed to be used in automotive systems with a 12V battery, but it can also be used with an external 12V power adapter with a current of at least 2A, which must be purchased separately (in this case, the consumer must be careful with the adapter plug, which must be a standard P4-2mm). -
Page 12: Connection Examples
Installation Connection examples - 1 Head unit Microphone BALANCED Acessory Amplifier 1 Amplifier 2 Illustrative Images... - Page 13 Installation Connection examples - 2 Head unit Microphone BALANCED Sound system 1 Sound system 2 Illustrative Images...
-
Page 14: Technical Features
0.94Kg (2,07lb) Weight: * The consumption of T 0504 FX MULTICOLOR (STEREO) may vary according to the effect used. Taramps reserves the right to modify the content of this manual without prior notice and without any obligation to apply the modi cations to previously produced units. - Page 15 Manufactured by: TARAMPS ELECTRONICS LTDA TAX ID: 11.273.485/0001-03 Highway: Júlio Budisk, SN, KM 30 Alfredo Marcondes - SP Made in Brazil...
