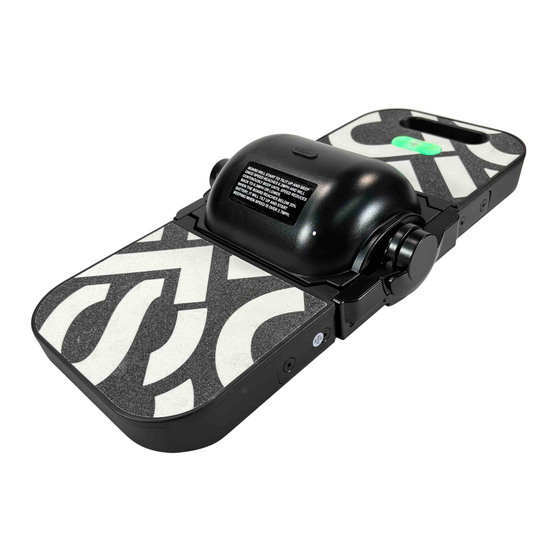

- Page 1 Ring Electric Balance Board. A guide for your ride. IMPORTANT: READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE. MODEL SKU: JRING-BLK...
- Page 3 Jetson's top two riding rules: Be safe. Have fun!
-
Page 4: Table Of Contents
Contents Safety Warnings ........................4 Warranty Coverage . - Page 5 ..................2 9 3.5 Maximizing Speed &...
-
Page 6: Safety Warnings
Safety Warnings • Before use, please read the user manual and safety warnings carefully, and make sure you understand and accept all the safety instructions. The user will be responsible for any loss or damage caused by improper use. • Failure to use correct charger can result in fire and explosion, resulting in property damage, injury, and death. •... -
Page 7: Notice Of Compliance
• AVERTISSEMENT- Risque d’incendie et de choc électrique - Aucune des pièces ne peut être réparée par l’utilisateur. MODIFICATIONS Do not attempt to disassemble, modify, repair, or replace the unit or any components of the unit without instruction from Jetson Customer Care. This will void any warranty, and can lead to malfunctions which may cause injury. -
Page 8: Warranty Coverage
Your new Jetson product is warranted against defects in materials and workmanship as indicated on ridejetson.com/warranty for a period of time from the date of original retail purchase when used in accordance with Jetson's user manuals (refer to ridejetson.com/support). Under this warranty, you will be able to direct your claims to Jetson even in situations where you purchased the Jetson Product from one of our authorized retailers. -
Page 9: About Your Product
1. About Your Product Product Specs · WEIGHT LIMIT: 176 LB · MINIMUM RIDER WEIGHT: 77 LB · PRODUCT WEIGHT: 14.3 LB · WHEEL SIZE: 5" · PRODUCT DIMENSIONS (FOLDED): 11.2" (L) X 8.3" (W) X 5.0" (H) · PRODUCT DIMENSIONS (UNFOLDED): 16.5" (L) X 8.3" (W) X 5.0" (H) ·... -
Page 10: Product Overview
Product Overview 1. WHEEL 2. FRONT STANDING PLATFORM 3. BACK STANDING PLATFORM 4. ACCELERATOR BUTTON/BATTERY CHARGE INDICATOR LIGHTS 5. HEADLIGHTS 6. CHARGING PORT WITH COVER 7. CARRYING HANDLE 8. CHARGER 9. RECALIBRATION SUPPORT PIECE... -
Page 11: Side View
TOP VIEW SIDE VIEW NOTE: IMAGES MAY NOT REFLECT EXACT APPEARANCE OF ACTUAL PRODUCT. -
Page 13: Online Resources
Online Resources Scan for our most updated Ring onboarding materials and support resources. WARNING: FAILURE TO COMPLY WITH THE FOLLOWING INSTRUCTIONS MAY RESULT IN INJURY TO THE CHILD OR OTHERS. • KEEP SMALL PARTS AWAY FROM CHILDREN DURING ASSEMBLY. • ACCESSORY MUST BE ASSEMBLED AND REMOVED BY AN ADULT. -
Page 14: Getting Started
2. Getting Started Charging the Battery IMPORTANT: THE RING CAN ONLY BE CHARGED IN THE FOLDED POSITION. 1. PULL OPEN THE CHARGING PORT COVER. 2. PLUG THE CHARGER INTO THE WALL, AND THEN PLUG THE CHARGER CORD INTO THE BOARD'S CHARGING PORT. - Page 15 IMPORTANT CHARGING NOTES: · ONLY USE THE INCLUDED CHARGER OR ONE OBTAINED DIRECTLY THROUGH JETSON LABELED WITH XHK-968-50413 OR THE PART SKU PJRING-CH. FAILURE TO USE CORRECT CHARGER CAN RESULT IN FIRE AND EXPLOSION. · ALWAYS KEEP THE CHARGING PORT COVER CLOSED WHEN NOT ACTIVELY CHARGING THE BATTERY.
-
Page 16: Powering On & Off
THE BOARD POWERS ON WHEN IT IS UNFOLDED FOR RIDING, AND POWERS OFF WHEN IT IS FOLDED FOR STORAGE AND TRANSPORT. TO UNFOLD AND POWER ON: 1. PLACE THE RING ON YOUR RIDING SURFACE. 2. GENTLY PULL APART THE STANDING PLATFORMS. 3. LOWER THE PLATFORMS DOWN UNTIL THEY ARE HORIZONTAL AND YOU HEAR A SERIES OF BEEPS. -
Page 17: When & How To Recalibrate
When & How to Recalibrate SOMETIMES THE INTERNAL BALANCE MECHANISMS ON A BOARD NEEDS TO BE RESET, OR "RECALIBRATED." IMPORTANT: RECALIBRATE YOUR BOARD STRAIGHT OUT OF THE BOX. THEN, RECALIBRATE AS NECESSARY. SIGNS YOUR BOARD MIGHT NEED RECALIBRATING INCLUDE CONSTANT BEEPING AND/OR SPINNING OF THE WHEELS. IMPORTANT: DO NOT LEAN OR APPLY ANY WEIGHT ON THE BOARD DURING THE RECALIBRATION PROCESS. -
Page 18: Understanding The Battery Indicator Light
Understanding the Battery Indicator Lights ACCELERATOR BUTTON/BATTERY CHARGE INDICATOR LIGHT WHEN POWERED ON FOR USE, THE ACCELERATOR BUTTON WILL ILLUMINATE WITH DIFFERENT COLORS TO INDICATE THE REMAINING CHARGE PERCENTAGE. -
Page 19: Battery Indicator Lights
IMPORTANT: WHEN THE BATTERY CHARGE DEPLETES TO 0%, THE BOARD WILL POWER OFF. BATTERY CHARGE PERCENTAGE CHARGE THE BOARD TO FULL POWER (SEE INDICATOR LIGHTS SECTION 1.1) PRIOR TO YOUR NEXT RIDE. 50 – 100% CHARGED 20 – 50% CHARGED 0 –... -
Page 20: Making Moves
3. Making Moves Starting Notes · KICK OFF YOUR ADVENTURE RIGHT: PRIOR TO USE OF THIS PRODUCT, CAREFULLY READ THE ENTIRE USER MANUAL, INCLUDING SAFETY WARNINGS. MAKE SURE YOU UNDERSTAND, ACCEPT, AND ADHERE TO ALL: • MANUFACTURER’S RECOMMENDATIONS. • SAFETY INSTRUCTIONS AND WARNINGS. •... -
Page 21: Mounting The Board
Mounting the Board 1. PULL OPEN THE BOARD TO POWER IT ON. (SECTION 1.2) - Page 22 2. TILT THE BOARD TOWARD THE BACK STANDING PLATFORM SO THAT THE BACK EDGE OF THE BOARD IS RESTING ON THE GROUND.
- Page 23 3. FROM ONE SIDE OF THE BOARD, PLACE YOUR BACK FOOT ON THE BACK STANDING PLATFORM.
- Page 24 4. LIFT YOUR FRONT RIDING FOOT ONTO THE FRONT STANDING PLATFORM.
- Page 25 5. SLOWLY SHIFT YOUR BODY WEIGHT TOWARD THE FRONT OF THE BOARD UNTIL THE BACK EDGE OF THE BOARD LIFTS OFF THE GROUND AND THE BOARD IS BALANCED ON THE WHEEL.
-
Page 26: Riding The Board
Riding the Board BACK OF BOARD 1. WHILE BALANCING THE BOARD ON THE WHEEL, APPLY PRESSURE TO THE ACCELERATOR BUTTON WITH YOUR FRONT FOOT. 2. KEEP THE BOARD IN BALANCE WHILE YOU SHIFT YOUR BODY WEIGHT IN THE DIRECTION YOU WANT TO MOVE. IMPORTANT: KEEP YOUR BODY UPRIGHT WHILE RIDING. - Page 27 ACCELERATOR BUTTON FRONT OF BOARD...
- Page 28 IMPORTANT: WHEN THE BOARD IS PUSHED BEYOND ITS INTENDED CAPACITY, THE MOTOR IS SUSCEPTIBLE TO OVERLOADING. IF APPROACHING MOTOR OVERLOAD, THE BOARD MAY START BEEPING AS AN ALERT. IN CASES OF OVERLOAD, LET THE MOTOR COOL OFF FOR 30 - 60 MINUTES BEFORE RIDING AGAIN. TO AVOID OVERLOADING THE MOTOR, REFRAIN FROM RIDING: ·...
-
Page 29: Dismounting The Board
Dismounting the Board 1. BRING THE BOARD TO A STOP. - Page 30 2. USE YOUR FEET TO TILT THE BOARD TOWARD YOUR TOES UNTIL YOUR TOES ARE RESTING ON THE EDGE OF THE GROUND. 3. CAREFULLY STEP OFF OF THE BOARD.
-
Page 31: Maximizing Speed & Run Time
Maximizing Speed & Run Time THE MAXIMUM RUN TIME PER BATTERY CHARGE IS UP TO 60 MINUTES AND THE MAXIMUM ACHIEVABLE SPEED IS 9.3 MPH. HOWEVER, MANY FACTORS WILL AFFECT HOW FAR YOU CAN GO PER CHARGE AND HOW FAST YOU CAN RIDE. ·... -
Page 32: Using The Lights
Using the Lights TO TURN THE HEADLIGHTS ON OR OFF, QUICK-PRESS THE ACCELERATOR BUTTON 4 TIMES IN A ROW. ACCELERATOR BUTTON HEADLIGHTS IMPORTANT: ALWAYS PLACE YOUR BOARD ON THE RIDING SURFACE BEFORE POWERING ON OR ENGAGING THE ACCELERATOR BUTTON. -
Page 33: Helmet Safety
Helmet Safety A HELMET SHOULD BE WORN AT ALL TIMES. PROPER POSITIONING: IMPROPER POSITIONING: THE FOREHEAD IS COVERED THE FOREHEAD IS EXPOSED. BY THE HELMET. A FALL COULD RESULT IN SERIOUS INJURY. * WEAR A HELMET, APPROPRIATE CLOTHING, SHOES, AND SAFETY GEAR. AVOID CLOTHING THAT CAN GET CAUGHT INTO OR UNDER THE WHEELS. -
Page 34: Care & Maintenance
DIRECTLY TO THE PRODUCT, AS THE ELECTRICAL AND ELECTRONIC SYSTEMS MAY GET WET, WHICH COULD LEAD TO A MALFUNCTION THAT PUTS RIDER SAFETY AT RISK. · IF THE ELECTRIC PARTS OR BATTERY GET WET, DO NOT POWER ON THE BOARD. CONTACT THE JETSON CARE TEAM FOR ASSISTANCE. BATTERY CARE AND PRECAUTIONS ·... -
Page 35: Stay Connected
Stay connected. Be sure to follow @ridejetson on social media to learn about fantastic offers, giveaways, and all the latest Jetson news. Loving your ride? Then be sure to leave a review at ridejetson.com/reviews. We can’t wait to hear from you! - Page 36 Date Code: 08/2024 Document Edition: v1.0 © 2024, JETSON. ALL RIGHTS RESERVED. Manufactured by TruRide Tech LLC No portion of this document, including shape, copy, graphics, and design, may be reproduced or transmitted in any form or by any means.
