KITS AND ACCESSORIES
INSTALLATION INSTRUCTIONS FOR
REFRACTORY FIREBRICK LINER KIT
For more information visit our website at www.mason-lite.com
MODEL/DESCRIPTION
MFP39SHBL - 39" Herringbone Firebrick
MFP44SHBL - 44" Herringbone Firebrick
MFP49SHBL - 49" Herringbone Firebrick
MFP63SHBL - 63" Herringbone Firebrick
MFP39FRBL - 39" Running Bond
MFP44FRBL - 44" Running Bond
MFP49FRBL - 49" Running Bond
MFP63FRBL - 63" Running Bond
MFP43STSHBL - 43" Herringbone
MFP43STFRBL - 43" Running Bond
GENERAL INFORMATION
Note: Panels are available for fireboxes ordered
with the optional height kit. Extended height pan-
els are dedicated by adding -X to the part number
(ex. MFP39SHBL-X). Panels come standard in
Cream Color. Panels available in Gold (Original
Buff Color). Gold brick designated by -G at the
end of the part number (ex. MFP39SHBL-G).
Panels available in Black. Black brick designated
by -B at the end of the part number (ex. MFP-
39SHBL-B).
READ ALL THE STEPS BEFORE STARTING
THE INSTALLATION

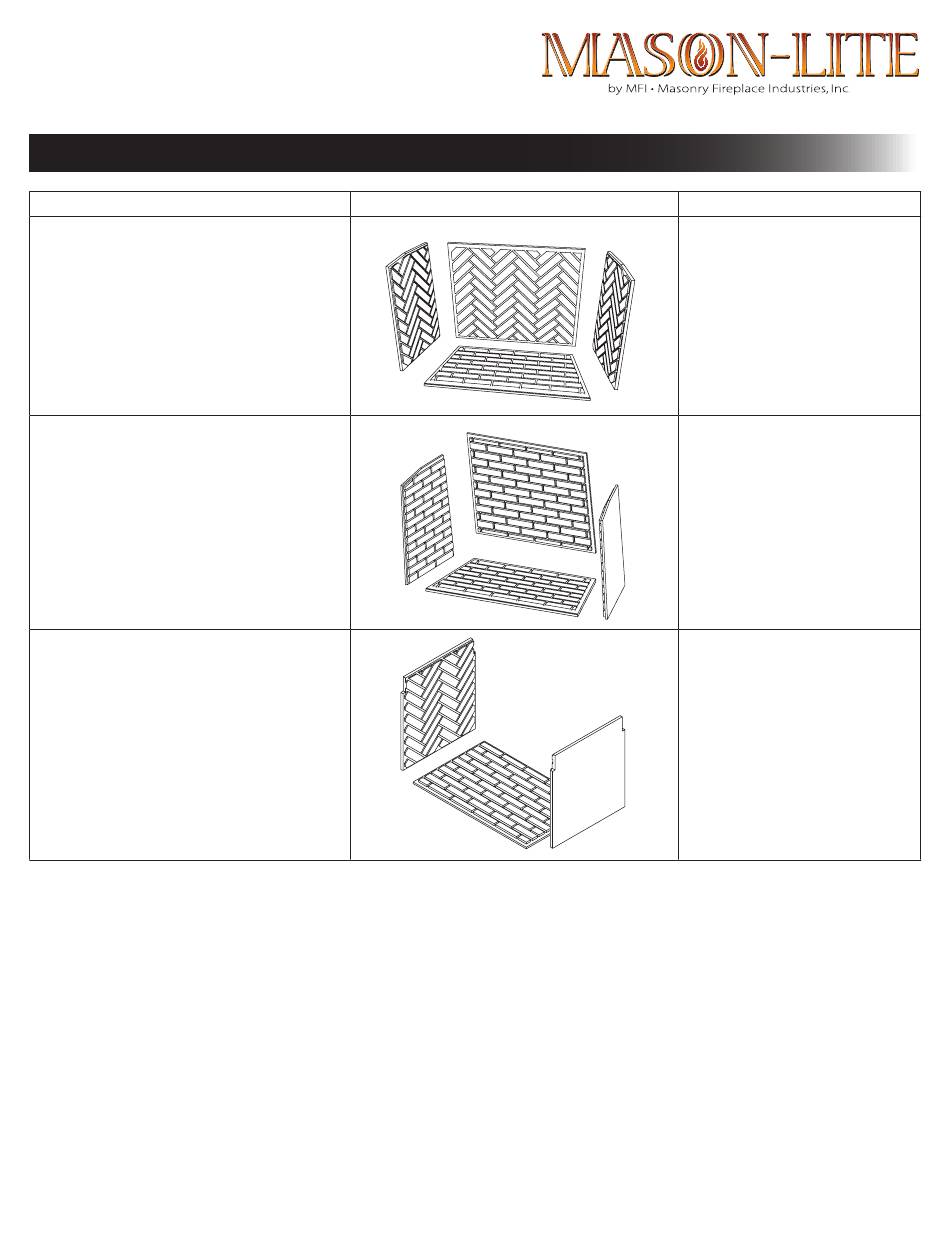

ILLUSTRATION
2
3
1
2
3
1
2
1
THE FIREPLACE SHOULD BE INSTALLED IN
PLACE BEFORE BEGINNING THE INSTALLA-
TION OF REFRACTORY FIREBRICK LINER
KIT.
ALL WARNINGS, PRECAUTIONS AND IN-
STRUCTIONS IN THE INSTALLATION AND
OPERATION MANUAL PROVIDED WITH THE
FIREBOX APPLY TO THESE INSTRUCTIONS.
If you encounter any problems, need clarification
of these instructions or are not qualified to properly
install this kit, contact you local distributor or dealer.
If any of these parts are missing or damaged, con-
tact your dealer for referral information.
www.mason-lite.com
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
PARTS LIST
MFP_SHBL-1 Base
MFP_SHBL-2 Rear Wall
4
MFP_SHBL-3 Left Side
MFP_SHBL-4 Right Side
MFP_FRBL-1 Base
MFP_FRBL-2 Rear Wall
MFP_FRBL-3 Left Side
4
MFP_FRBL-4 Right Side
MFP43STSHBL-1 Base
MFP43STSHBL-2 Side
2
MFP43STFRBL-1 Base
MFP43STFRBL-2 Side
1
Advertisement
Related Manuals for mFi MASON-LITE MFP39SHBL
Summary of Contents for mFi MASON-LITE MFP39SHBL
- Page 1 KITS AND ACCESSORIES INSTALLATION INSTRUCTIONS FOR REFRACTORY FIREBRICK LINER KIT For more information visit our website at www.mason-lite.com MODEL/DESCRIPTION ILLUSTRATION PARTS LIST MFP39SHBL - 39" Herringbone Firebrick MFP_SHBL-1 Base MFP44SHBL - 44" Herringbone Firebrick MFP_SHBL-2 Rear Wall MFP49SHBL - 49" Herringbone Firebrick MFP_SHBL-3 Left Side MFP63SHBL - 63"...
- Page 2 INSTALLATION INSTRUCTIONS Apply mortar IMPORTANT: along full Apply mortar length of mix along top bottom edge and bottom at the front. edges. Important: Moisten all brick panels and Mason-lite surfaces with a wet sponge prior to applying mortar Figure 2 - Applying Mortar for maximum adhesion.
- Page 3 Both surfaces of the side brick liners should be mortared to get good adhesion. Figure 4 - Installing Left Side Panel Figure 6 - Apply Mortar at Inner Seams Step 4: For MFP43ST See-Thru Units: Install remaining Side Panel in like manner as Install Firebrick Hearth Panel as in step 1.
- Page 4 For Outside Air Kit Installations: If requiring an outside air kit, the side in which you are installing outside air will require you to drill a 4” dia. hole through the Firebrick Side Panel for Air Kit installation. Note: When drilling through the brick panel for outside air kit, it needs to be done from the inside out so the bricks don’t pop out.
