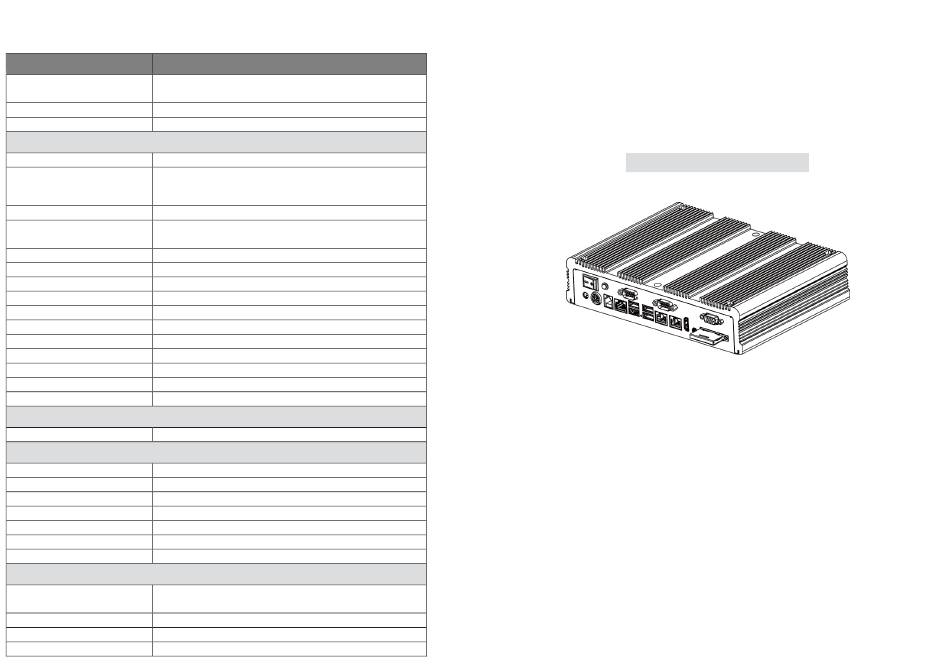

Fametech BX-861 Quick Installation Manual

 Specifications
Model Name
Processor
Memory 1 x 260 pin DDR4 SO-DIMM (3200MTs, up to 16GB)
Storage 1 x M.2 SSD (PCIe3.0 x 4 NVMe / SATA)
I/O Interface
USB- front
USB- rear
LAN 1 x RJ45 10/100/1000Mbps Giga Ethernet
COM
LPT port
HDMI
VGA
Audio
Cash Drawer
1 x RJ11 port supports 2 cash drawer w/ 12/24V by jumper
DC Power Out
DC Power In
Power Switch
Power LED indicator
M.2 E-key Slot(internal)
mPCIe Slot(internal)
Power Management
Power Adapter
Mechanical & Environmental
Surface Color Plan
Dimension(W x H x D mm)
Weight(N.W / KG)
Operation System
Operation Condition 0°C to +45°C / 20 to 80% without condensation
Storage Condition -5°C to +55°C / 20 to 85% without condensation
Certification
Accessories
Wi-Fi
4G/LTE 4G/LTE mPCIe Card & 4G/LTE Swivel Antenna
VESA Mount Bracket
Wall Mount Bracket M4 75 x 75 & 100 x 100 mm (box & wall bracket)
BX-861
Intel® N97 (Alder Lake)
6M Cache, Max. 3.6 GHz
6 x USB 2.0 Type A
1 x USB 3.2 Type A
1 x USB 3.2 Type C (w/ QC)
2 x USB 2.0 Type A
2 x COM (RJ45), w/ RI/5V/12V by BIOS
2 x COM (DB9), w/ RI/5V/12V by jumper
1 x DB25 (option)
1 x HDMI Port
1 x VGA (DB15)
1 x Line-out/MIC-in
1 x DC 12V Power Out (DC 2.1mm)
1 x Standard DIN 4pin type
1 x Power Rocker Switch
1 x Blue LED
1 x NGFF 2230 (USB)
1 x Full Size (USB + PCIe)
12V@7.5A, 90W Adapter
Aluminum/ Black
246 * 55 *181mm
2.3kg
Windows 10/11 and Linux
FCC/CE/LVD
mPCIe or M.2 Card 2.4G/5G
with Swivel Antenna
M4 75 x 75 & 100 x 100 mm
BX-861
Compact performance Box PC
Quick Installation Guide
IMPORTANT SAFETY INFORMATION
 Read following instructions carefully.
 Use only parts, especially power adapter, recommended by the manufacturer;
unapproved parts may be hazardous.
 Make sure that the voltage applied to the power outlet is within the specified range
 (100VAC ~240VAC).
Improper power source voltage range will cause damage.
 Power off the system and remove the power adapter while cleaning the system.
 Before powering on the system, make sure all the peripherals are
firmly installed.
