Fametech BX-810 Manual

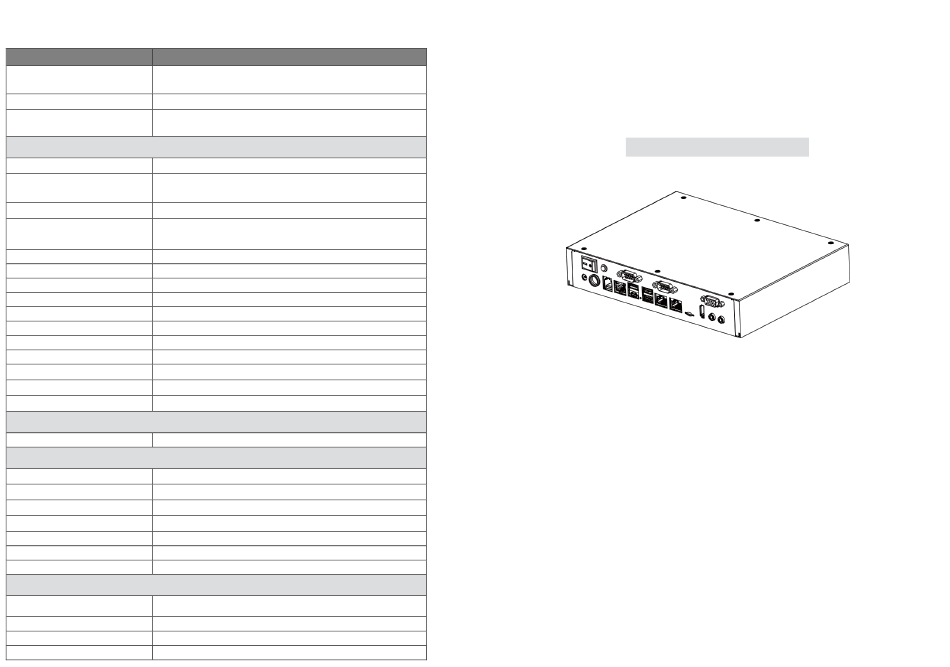

 Specifications
Model Name
Processor
dual Cortex-A72 1.8GHz & quad Cortex-A53 1.4 GHz
Memory
Storage
I/O Interface
USB-front
USB-rear
LAN 1 x RJ45 10/100/1000Mbps Giga Ethernet
COM
HDMI
VGA
Audio
Cash Drawer
1 x RJ11 port supports 2 cash drawer w/ 12/24V by jumper
DC Power Out
DC Power In
Power Switch
Power LED indicator
TF Card Slot
SIM Card Slot(internal)
mPCIe Slot(internal)
Power Management
Power Adapter
Mechanical & Environmental
Surface Color Plan
Dimension(W x H x D mm)
Weight(N.W / KG)
Operation System
Operation Condition 0°C to +45°C / 20 to 80% without condensation
Storage Condition -5°C to +55°C / 20 to 85% without condensation
Certification
Accessories
Wi-Fi IEEE 802.11 a/b/g/n/ac (onboard) w/ Antenna
Wi-Fi
4G/LTE
4G/LTE mPCIe Card & 4G/LTE w/ Antenna
VESA Mount Bracket
Wall Mount Bracket M4 75 x 75 & 100 x 100 mm (box & wall bracket)
BX-810
ARM Rockchip RK3399
Onboard 4GB LPDDR4 1866MHz
Onboard 32GB eMMC 5.1
1 x TF Card Slot (up to 128GB)
6 x USB 2.0 Type A
3 x USB 3.0 Type A
1 x USB 3.0 Type C (w/ ADB)
2 x COM (RJ45) + 2 x COM (DB9),
w/ NC/5V/12V by jumper
1 x HDMI Port
1 x VGA (DB15)
1 x Line-out and 1 x MIC-in
1 x DC 12V Power Out (DC 2.1mm)
1 x Standard DIN 4pin type
1 x Power Rocker Switch
1 x Blue LED
1 x TF Card Slot (up to 128GB)
1 x Standard SIM Card Slot
1 x Full Size (USB + PCIe)
12V@5A, 60W Adapter
Sheet Metal/Black
242 *45 *186mm
1.4kg
Android 9.0
FCC/CE/LVD
M4 75 x 75 & 100 x 100 mm
BX-810
Compact performance Box PC
Quick Installation Guide
IMPORTANT SAFETY INFORMATION
 Read following instructions carefully.
 Use only parts, especially power adapter, recommended by the manufacturer;
unapproved parts may be hazardous.
 Make sure that the voltage applied to the power outlet is within the specified range
 (100VAC ~240VAC).
Improper power source voltage range will cause damage.
 Power off the system and remove the power adapter while cleaning the system.
 Before powering on the system, make sure all the peripherals are
firmly installed.
