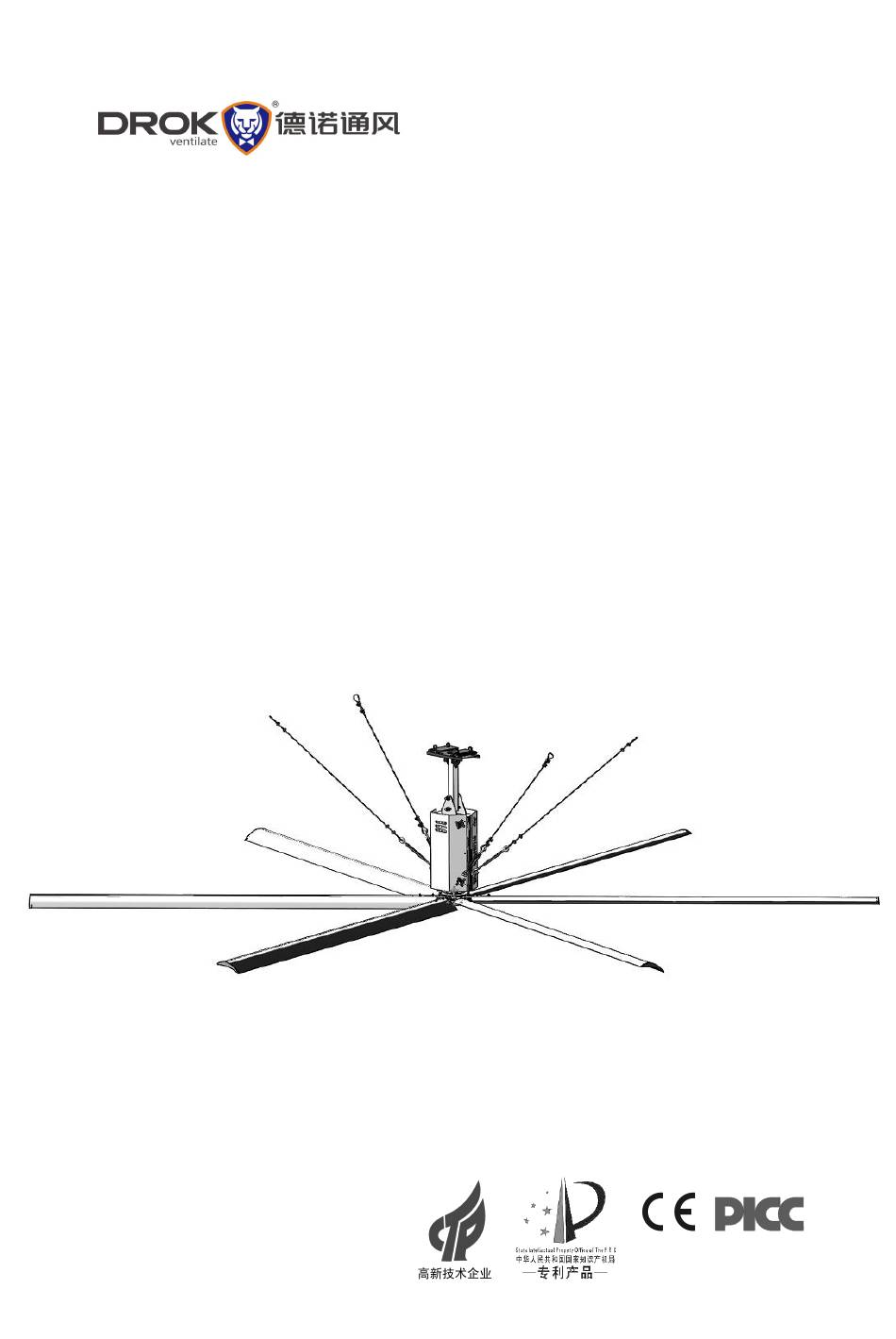

- Page 1 Geared motor frequency conversion industrial ceiling fan Operation and maintenance manual ISO9001:2015...
-
Page 2: Table Of Contents
Catalog Foreword ..................1 1.Product introduction ............... 1 1.1Product Specifications ..........1 2.Parts List .................. 2 3.Fan installation ................ 4 3.1 Installation forms .............4 3.2Fan installation steps ............5 3.2.1 Step 1:Install the ceiling bracket and extension rod 5 3.2.2 Step 2:Install the motor ...........5 3.2.3 Step 3: Install the steel wire rope ......6 3.2.4 Step 4: Adjust the balance ........ -
Page 3: Foreword
The problem. Mainly used in factories, warehouses and other large spaces. 1.1 Product Specifications Spec. 6.1m 7.3m Model FQ-E61 FQ-G61 FQ-E73 FQ-G73 12000m³/min 12000m³/min 13200m³/min 13200m³/min... -
Page 4: Fan Parts List
2. Fan Parts List Description Sets Picture Ceiling bracket Pressing plate extension rod Ceiling Motor Blades fan blade connector Steel wire rope Steel wire tensioner... - Page 5 Electric control box Motor cover Bottom plate electric Cable、 threading pipe screws Before installation, check whether there are any missing accessories and quantities against the parts list。...
-
Page 6: Fan Installation
3.Fan installation 3.1 Three common types of installation 3.1.1 I-beam structure I-beam 工字钢梁 M16 high strength bolts Pressing plate 支架压板 Ceiling bracket 3.1.2 Square tube, round tube and other structures M16 High strength bolts and screws （ The length is customized according Press plate or to the square tube）... -
Page 7: Fan Installation Steps
3.2 Fan installation steps 3.2.1 First step : Install the ceiling bracket and extension rod 1.Fasten the two ceiling pressure plates on both sides of the I-beam, use 4pcs M16 bolts to connect with the ceiling frame, and tighten the bolts to hold both sides of the I-beam. -
Page 8: Step 3: Install The Steel Wire Rope
3.2.3 Step 3: Install the steel wire rope 1.Hang the 4pcs steel wire tensioners into the 4 ring holes of the ceiling fan main unit. 2.Connect the other ends of the 4 steel wire ropes to the top of the workshop (suitable fixing place), and the 4 steel wire ropes are evenly distributed in 4 directions. -
Page 9: Step 4: Adjust The Balance
3.2.4 Step 4: Adjust the balance 1.Stick the level ruler on the bottom plane of the motor, adjust the 4 steel wire rope tensioners in turn to make the motor in the best horizontal state, and then tighten the fixing screws of the motor bracket. -
Page 10: Step 5:Install The Fan Blades
3.2.5 Step 5:Install the fan blades 1.Install the fan blades in sequence, align the root hole of the fan blade with the screw hole, and connect them with M10 screws, spring washers and flat washers. M10X45 screw M10X55 screw The fan connecting piece installed alternately... -
Page 11: Step 6: Connect The Power Supply
3.2.6 Step 6: Connect the power supply Wire Connection method of 220V 3.2.6.1 motor live wire wiring is connected to the control box Connected neutral U, V and W. Ground wire PE wire The workshop power supply is connected to the air circuit breaker （As the picture shows) Looking from bottom to top, it is correct that... - Page 12 Wire Connection method of 380V 3.2.6.2 motor wiring is connected Connected to the control box Ground wire PE U, V and W. workshop power supply is connected to the air circuit breaker （ As the picture shows Looking from bottom to top, it is correct that the motor rotates counterclockwise.
-
Page 13: Step 7:Install The Motor Cover And Bottom Cover
3.2.7 Step 7:Install the motor cover and bottom cover 4.Control panel The actual situation of the fan live surveillance Fan control box switch Air speed adjustment knob... -
Page 14: Operating Instructions
5. Safe Operating Instructions Before operating the equipment, please read the product instructions carefully, and remove obstacles in the operating area to ensure that the fan runs at a safe distance. Warning: Before doing any electrical and fan maintenance, be sure to turn off the power and have it operated by a professional to avoid being injured by the power supply. - Page 15 Do not bend the fan blades when installing, adjusting or cleaning the fan, otherwise it will damage the fan or affect the use of the fan. Before turning on the power, please confirm whether the input voltage of the fan is consistent with the power supply voltage. Do not carry out maintenance work when the power is on to prevent electric shock.
- Page 16 7.Fault diagnosis and its solutions Trip code Trip Type Possible causes Solutions Bus Under 1. Check the input 1.Power grid low voltage during power voltage running source. 1. Increase the 1. Acceleration time acceleration time. too short 2. Check the input Over current in 2.
- Page 17 2. Add suitable braking devices. 1. Wiring of drive and 1. Check whether the motor get electric motor coil is Load phase-to-phase short short short-circuit circuit circuit. 2.Damage of the 2. Ask for the services inverting module from IGBT manufactures. 1.
-
Page 18: Repair And Maintenance
8.Repair and Maintenance Our product design is maintenance-free, but in order to ensure the long life of the fan and the normal operation of the fan, the fan should also be maintained, especially for applications in harsh environments, for any maintenance of the fan or variable controller,always ensure that the fans are stopped and the controller is powered off to protect personnel.
