Summary of Contents for Zotac ZBOX Pro CI329

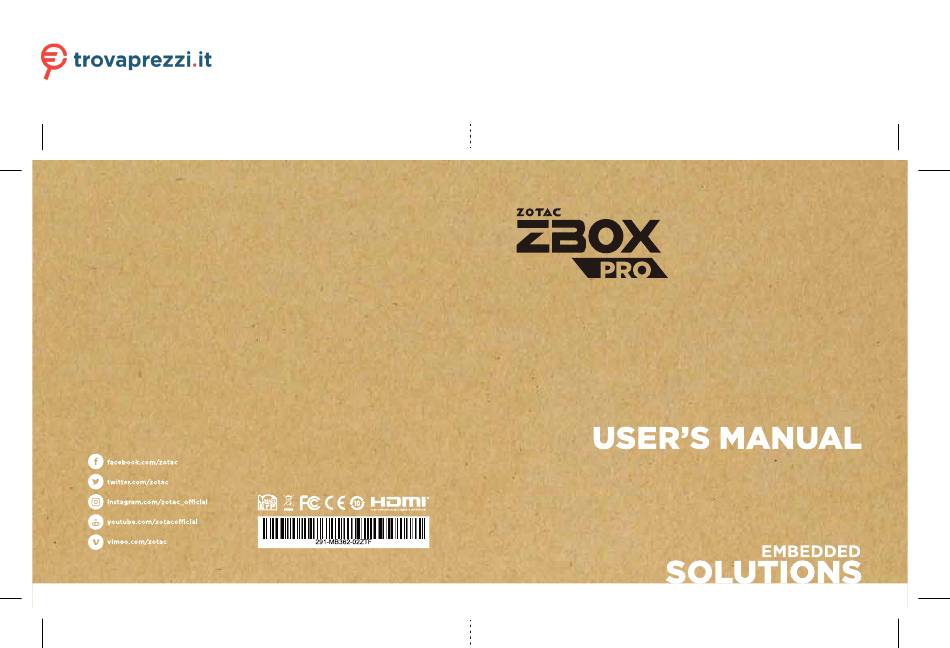

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Zotac ZBOX CI329 nano ZP-CI329NANO-BE o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation...
  • Page 2 ZOTAC. Products and corporate names mentioned in this manual may be registered trademarks or copyrights of their respective companies, and are used for identification purposes only.
  • Page 3: Table Of Contents

    Table of Contents Specifications ----------------------------------------------------------------------------------------------------3 Safety instructions----------------------------------------------------------------------------------------------5 Package contents -----------------------------------------------------------------------------------------------6 Getting to know your ZP-CI329NANO --------------------------------------------------------------------7 Front view -----------------------------------------------------------------------------------------------------7 Rear view ------------------------------------------------------------------------------------------------------8 Installing hardware inside ZP-CI329NANO -------------------------------------------------------------9 Installing an M.2 SSD module ----------------------------------------------------------------------------12 Installing a memory module -------------------------------------------------------------------------------14 Installing a hard disk drive ---------------------------------------------------------------------------------15 Installing the L-shaped mountings ------------------------------------------------------------------------17 Installing your ZP-CI329NANO to a monitor -----------------------------------------------------------18 Setting up your ZP-CI329NANO ----------------------------------------------------------------------------20...
  • Page 4: Specifications

    Specifications Microprocessor Support • Intel Celeron N4100, Quad-core 1.1 GHz/2.4 GHz, 4 MB cache Operating Systems • Supports Windows 10 64-bit Onboard Graphics Support • Intel UHD Graphics 600 • HDMI 2.0 (max resolution: 4096×2160 @60Hz) • DP 1.2 (max resolution: 4096×2160 @60Hz) •...
  • Page 6: Safety Instructions

    Safety instructions ZP-CI329NANO is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Read and follow all instructions in the documentation before you operate your system. ™...
  • Page 7: Package Contents

    Package contents Thank you for choosing our ZP-CI329NANO. The following illustration displays the package contents of your new ZP-CI329NANO. If any of the below items is damaged or missed, contact your retailer. • 1 x ZP-CI329NANO • 1 x L-shaped mounting kit •...
  • Page 8: Getting To Know Your Zp-Ci329Nano

    Getting to know your ZP-CI329NANO Front view 2 3 4 1. Power button The power button turns the mini-PC ON and OFF. 2. Power LED The Power LED is always ON when power is on. 3. SATA status LED The SATA LED blinks when data is being written onto or read from the SATA. 4.
  • Page 9: Rear View

    Rear view 1. COM port Use the COM port to connect serial devices such as mouse or fax/modem. 2. WiFi antenna connector The WiFi antenna connector supports the included WiFi antenna. 3. Ethernet ports The eight-pin RJ-45 LAN port supports standard Ethernet cable for connections to local area networks (LAN) with speeds of 10/100/1000Mbps.
  • Page 10: Installing Hardware Inside Zp-Ci329Nano

    Installing hardware inside ZP-CI329NANO Before installing hardware, please follow the instructions below to remove the cover of your ZP-CI329NANO. 1. Remove the four screws of bottom cover. 2. Remove the bottom cover.
  • Page 11 3. Remove the four screws of rear cover. 4. Remove the rear cover.
  • Page 12 5. Remove the seven screws as shown below. 6. Remove the the hard drive bracket, and remove the screw as shown below. 7. Take the the board out from the box.
  • Page 13: Installing An M.2 Ssd Module

    Installing an M.2 SSD module 1. Turn over the board, and remove the screw as shown below. 2. Insert the M.2 SSD module into the socket.
  • Page 14 3. Gently press down on the M.2 SSD module, and install the screw to secure the M.2 SSD module. 4. Install the board into the box with screws.
  • Page 15: Installing A Memory Module

    Installing a memory module 1. Insert the memory module into the socket. 2. Gently press down on the memory module until it is locked by the arms of the socket.
  • Page 16: Installing A Hard Disk Drive

    Installing a hard disk drive 1. Install the hard disk bracket onto a 2.5-inch SATA hard disk drive /SSD with two screws. 2. Insert the hard disk drive /SSD into the socket and gently slide into the connector.
  • Page 17 3 Reinstall the screw for the hard disk bracket.
  • Page 18: Installing The L-Shaped Mountings

    Installing the L-shaped mountings Locate the bottom cover upwards, and take out the L-shaped mounting kit and shipped screws. Install the L-shaped mountings to the bottom cover with screws.
  • Page 19: Installing Your Zp-Ci329Nano To A Monitor

    Installing your ZP-CI329NANO to a monitor You can also install your ZP-CI329NANO to the back of a monitor. To do so: Unscrew and remove the bottom cover. Install the VESA mounting kit to the bottom cover with four screws as shown below.
  • Page 20 Reinstall the bottom cover to the ZP-CI329NANO. Install the ZP-CI329NANO to the monitor. Mechanical Loading Stability - Mounting of the equipment on the backside of the monitor  should be lay this equipment on a reliable surface when install. A drop or fall could cause injury.
  • Page 21: Setting Up Your Zp-Ci329Nano

    Setting up your ZP-CI329NANO Please connect your peripherals before using your ZP-CI329NANO. 1. Connecting a COM device Connect serial devices such as mouse of fax/modems. 2. Connecting the WiFi antenna Connect the WiFi antenna to the WiFi antenna connector. 3. Connecting to a network device Connect one end of a network cable to the LAN port on the system rear panel and the other end to a network hub, switch or router.
  • Page 22 4. Connecting to USB 3.0 devices Connect USB 3.0 devices such as external hard disk drives, SSDs and flash drives to the USB 3.0 port on the system rear panel. 5. Connecting to an HDMI display Connect one end of an HDMI cable to an HDTV or monitor, and the other end to the HDMI port on the system rear panel.
  • Page 23: Installing Drivers And Software

    Installing drivers and software Installing an operating system The ZP-CI329NANO does not ship with an operating system preinstalled. The user must install the operating system before the ZP-CI329NANO can be used. The following operating systems are supported: • Windows 10 64-bit Follow the instructions below to install an operating system: Attach external DVD drive via USB 3.0 or 2.0 ports.
  • Page 24: Using Your Zp-Ci329Nano

    • Intel serial io Driver • Realtek Ethernet PCI-E Driver • DPTF Driver • Intel Trusted Execution Engine • CardReader Driver • Wireless Network Driver • USB Charger (optional) Note: If you want to use high-amperage USB charging for smartphones and tablets, please install the driver USB Charger driver.
  • Page 25: Configuring Audio Output

    Configuring audio output Follow the steps below to enable audio output when connecting the ZP-CI329NANO to a TV or receiver via HDMI/DP/VGA adapter. Access the Sound settings via the system Control Panel. Under Playback devices, click the display device that corresponds with your audio compatible display.
