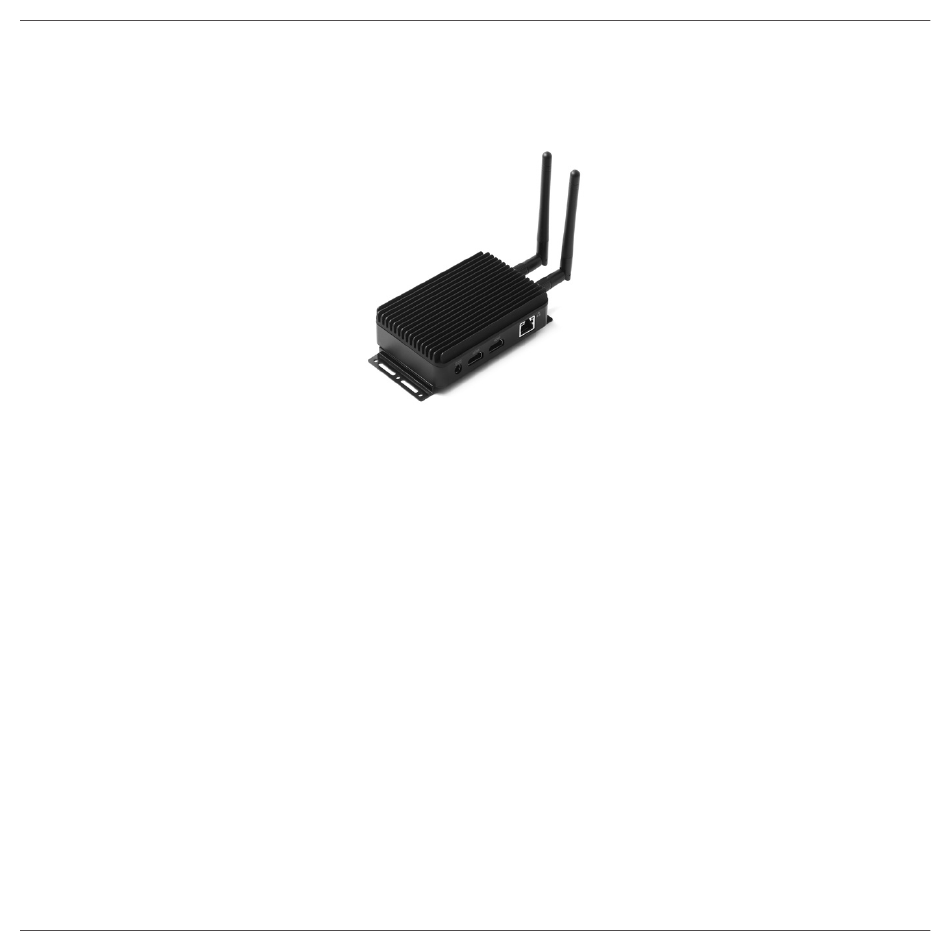

ZP-PI339
User's Manual
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language in any form or by any means, except by the
purchaser for backup purposes, without the express written permission of
ZOTAC.
Products and corporate names mentioned in this manual may be registered
trademarks or copyrights of their respective companies, and are used for
identification purposes only. All trademarks are the property of their respec-
tive owners.
Every effort has been made to ensure the contents of this manual are correct
and up to date. However, the manufacturer makes no guarantee regarding
the accuracy of its contents, and reserves the right to make changes without
prior notice.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Zotac ZBOX PRO PI339 pico
Summary of Contents for Zotac ZBOX PRO PI339 pico
- Page 1 ZOTAC. Products and corporate names mentioned in this manual may be registered trademarks or copyrights of their respective companies, and are used for identification purposes only.
-
Page 2: Table Of Contents
Table of Contents Specifications ----------------------------------------------------------------------------------------------------3 Safety instructions----------------------------------------------------------------------------------------------5 Package contents -----------------------------------------------------------------------------------------------6 Port layout ---------------------------------------------------------------------------------------------------------7 Using your ZP-PI339 -------------------------------------------------------------------------------------------9 Configuring wireless connection -------------------------------------------------------------------------9 Configuring audio output -----------------------------------------------------------------------------------9 Watch Dog Timer function -----------------------------------------------------------------------------------10... -
Page 3: Specifications
Specifications Microprocessor Support • Intel Alder Lake-N processor N100 (Quad Cores up to 3.4GHz, 6MB cache) Onboard Graphics Support • Integrated Intel UHD Graphics up to 750MHz graphics frequency with 24 Execution Units • 2x HDMI 2.0 (max resolution: 4096x2160 @60Hz) Memory •... -
Page 5: Safety Instructions
Safety instructions ZP-PI339 is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instruc- tions. Read and follow all instructions in the documentation before you operate your system. ™... -
Page 6: Package Contents
Package contents Thank you for choosing our ZP-PI339. The following illustration displays the package contents of your new ZP-PI339. If any of the below items are damaged or missed, contact your retailer. • 1 x ZP-PI339 • 1 x L-shaped mounting kit •... -
Page 7: Port Layout
Port layout 1. Power input (DC 5V, 4A) The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the mini-PC. To prevent damage to the mini-PC, always use the supplied power adapter. 2. - Page 8 7. WiFi antenna connectors The WiFi antenna connector supports the included WiFi antenna. Note 1: The power adapter may get warm or hot when in use. Do not cover the adapter and keep it away from your body. Note 2: Due to the unique design, some connectors are placed upside down.
-
Page 9: Using Your Zp-Pi339
Using your ZP-PI339 Configuring a wireless connection Please follow the instructions below to connect to a wireless network: Double-click the wireless network icon in the notification area. Select the wireless network you want to connect to from the list and click Connect. After connection is established, you will see “Connected.”... -
Page 10: Watch Dog Timer Function
This device support Watch Dog Timer. The detail of Watch Dog Timer function, user manual, demonstration application and source code for Windows and Linux can refer to the Watch Dog Timer driver folder from Zotac webpage under ZBOX Pro PI339 section.
