TD-W8951ND

Chapter 2. Hardware Installation

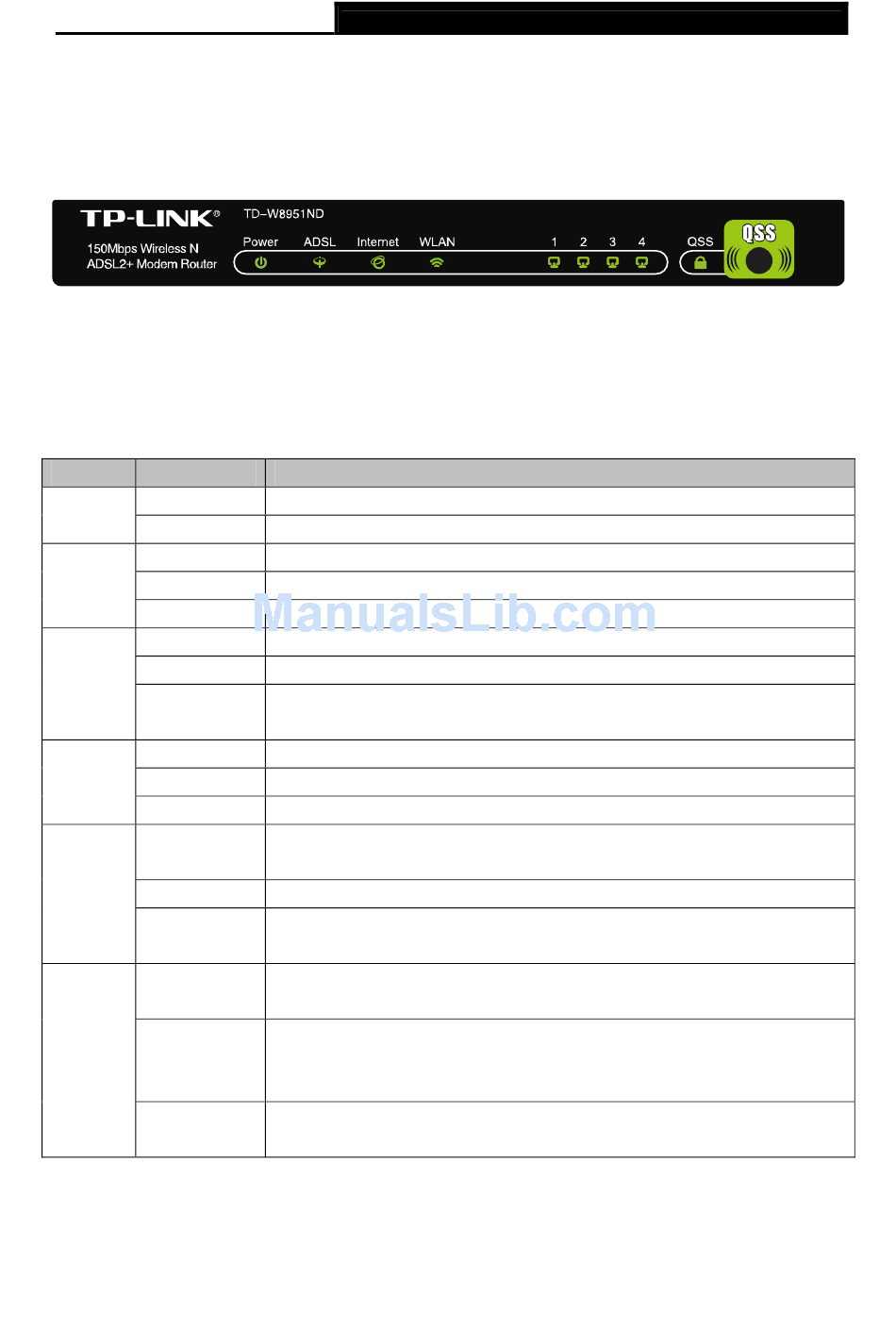

2.1 The Front Panel

The LEDs locate on the front panel. They indicate the device's working status. For details, please
refer to LED Explanation.
LED Explanation:
Name Status
On
Power
Off
On
ADSL
Flash
Off
On
Flash
Internet
Off
On
WLAN Flash
Off
On
LAN(1-4)
Flash
Off
On
QSS Flash
Off
150Mbps Wireless N ADSL2+ Modem Router User Guide
Figure 2-1
Indication
Power is on.
Power is off.
The LINE port is linked up.
The ADSL negotiation is in progress.
The LINE port is linked down.
A successful PPP connection has been built.
Data is being transferred over the Internet.
There is no successful PPP connection or the Router works on Bridge
mode.
The wireless function is enabled but no data is being transmitted.
There is wireless data being transmitted.
The wireless function is disabled.
There is a successful connection on the corresponding 1-4 （LAN）
port but no activity.
Data is being transferred over the 1-4 (LAN) port.
There is no connection on the corresponding 1-4 (LAN) port or the
connection is abnormal.
A wireless device has been successfully added to the network by QSS
function. The LED will keep on for about 5 minutes and then turn off.
The QSS function is enabled but no wireless device has been
successfully added to the network by QSS function. The LED will keep
flash for about 2 minutes and then turn off.
The QSS function is disabled or a wireless device failed to be added to
the network by QSS function.
4
