Status April 2023
The gas damper repair stand for bikes and e-bikes
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPEEDLIFT EVO and is the answer not in the manual?

Questions and answers

Related Manuals for ADDITIVE SPEEDLIFT EVO

Summary of Contents for ADDITIVE SPEEDLIFT EVO

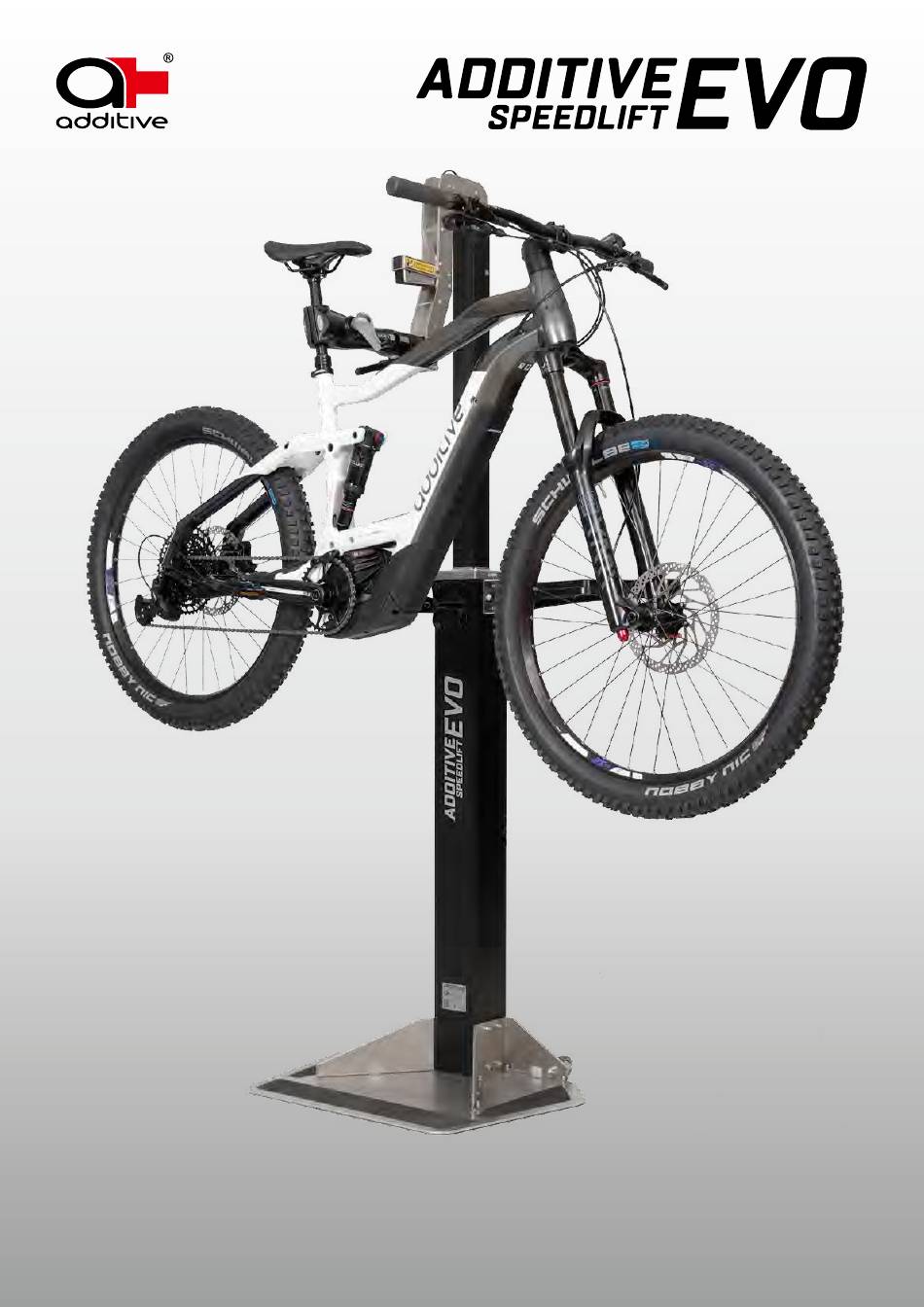

  • Page 1 Status April 2023 The gas damper repair stand for bikes and e-bikes User Manual...

  • Page 2: Table Of Contents

    Dear Customer, Thank you for purchasing our Additive Speedlift EVO stand. This is a further refinement of our proven Additive Speedlift 1800 stand. Different holding clamps with 50mm diameter can be used with it. It’s possible to work economically and ergonomically with our repair stand and it›s minimal effort to install.

  • Page 3: Safety Notes

    Please heed the safety instructions and recommendations in the manual. So you can operate the machine safely and optimise its performance. The Additive Speedlift is only designed to lift bikes up to a maximum of 50kg total weight. Exceeding this maximum load is strictly forbidden as it could cause damage or lead to breakage.

  • Page 5: Product Description

    For flooring which is susceptible to scratching large PTFE furniture rollers are mounted. c. Scope of delivery The Additive Speedlift EVO is always delivered in two parcels and can be sent via normal par- cel delivery companies. The total weight is approximately 40kg.

  • Page 6: Assembling Your Additive Speedlift Evo

    ASSEMBLING YOUR ADDITIVE SPEEDLIFT EVO We recommend assembling the stand with two people. Beware! The piston rod can extend a maximum of 800 mm (max. overall length 2100 mm). Select the location for the assembly so that the repair stand can be laid out completely.
  • Page 7 Now insert the release unit into the head unit and then tighten loosely with 4 oval-headed screws (M6x14). If necessary, fine-tune the tension of the Bowden cable. Fix the right/left support bracket and the U-sheet tool tray with cheese-head screws and washers (8 each).
  • Page 8 The base plate ⑪ is heavy. Holding onto it firmly, take it out of its packaging, place it vertically on the floor on its back and bring the pre-assembled guiding tubes including the entire head section into position on the base plate. Now insert the bolt (d=8mm) through the base plate and into the gas damper and align cen- trally.
  • Page 9 Now set up the Speedlift in the appropriate Insert the mount ⑤ for the retaining clamp place in the workshop. Place the two cover into the head unit and screw it into place with shells ⑭ with the logo facing forwards and 8 cheese-head screws (M6x20).

  • Page 10: Operation

    GETTING STARTED / OPERATION: Always stand in front of the Additive Speedlift repair stand when you are using it. Place one hand on the supporting arm/holding clamp or on the bike frame, and press the release but- ton (2) with your other hand, to release the power of the gas damper (on the inside of both the guiding tubes).

  • Page 11: Maintenance

    Especially for carbon frames it is not advised to clamp them by the top tube or down tube, as this can damage the frame. No compensation for damage for this can be claimed from Additive Bikes. When loosening bottom brackets or other work which requires high forces, we rec- ommend using so-called impact wrenches / drivers.

  • Page 12: General Notes

    To replace any components always verify and follow the respective steps given by the service partner or observe the respective written instructions. EXPLANATION OF NAME PLATE Additive Sportartikel GmbH Bernauer Str. 77 Maximum 83209 Prien a. Ch. / Germany...

  • Page 13: Important Information About Our Gas Dampers

    IMPORTANT NOTES ABOUT OUR GAS DAMPERS Gas dampers have a very high internal pressure (up to approximately 300 bar). They should not be opened without instructions! Our gas dampers are maintenance free! Do not grease or oil the piston rod etc. Our gas dampers have been designed, constructed and tested for highest requirements and greatest possible reliability.

  • Page 14: Ec Declaration Of Conformity

    EN ISO 12100:2011-03 DIN EN 1494:2009-05 Authorised representative for the compilation of technical documentation: Christian Hefter, Additive Sportartikel GmbH, Bernauer Straße 77, D-83209 Prien am Chiemsee, Germany Prien am Chiemsee, Germany, 09.11.2018 Christian Hefter Managing Director / Additive Sportartikel GmbH...

  • Page 15: Manufacturer's Declaration

    The technical documentation has been prepared in accordance with 2006/42/EC Annex VII/B. Authorised representative for the compilation of technical documentation: Christian Hefter, Additive Sportartikel GmbH, Bernauer Straße 77, D-83209 Prien am Chiemsee, Germany Prien am Chiemsee, Germany, 09.11.2018 Christian Hefter Managing Director / Additive Sportartikel GmbH...
  • Page 16 REPAIR STAND FOR BIKES & E-BIKES Powerful yet compact The Additive Speedlift EVO is a gas pressure-assisted assembly stand with holding claw. At the push of a button, a force of approx. 180 N is re- leased and heavy e-bikes are brought into the desired position in seconds with little effort.
