- Page 1 Status July 2024 The gas pressurised assembly stand for bicycles and e-bikes Instruction manual...
-
Page 2: Table Of Contents
Dear customer, Thank you for purchasing our Additive Speedlift LITE. This is a transportable solution of our proven Additive Speedlift EVO, which is usually operated in specialised work- shops. With our assembly stand, it is possible to work economically and ergonomi- cally with minimal installation effort. -
Page 3: Safety Instructions
This will enable you to control the device safely and optimise its performance. The Additive Speedlift LITE is designed exclusively for lifting bicycles. Do not lift any load other than bicycles and do not allow people to climb onto the Additive Speedlift. - Page 4 ① ② ⑩ ⑪ ③ ⑨ ④ ⑤...
-
Page 5: Product Description
Tool tray (optional) incl. cord handles b. Scope of application The Additive Speedlift LITE is an assembly stand for bicycles and e-bikes for special- ist workshops and their trained staff as well as for experienced private mechanics. With the help of our Additive holding claw or standard holding arms/holding claws, bicycles or e-bikes can be clamped and raised to the desired assembly height with little effort;... -
Page 6: Setting Up Your Additive Speedlift Lite
ADDITIVE SPEEDLIFT LITE - THE FIRST STEPS Remove the stand from the packaging and on a solid/robust surface. Piston rod extends a maximum of 0.8 m; (total height of the stand then approx. 2.1 m). Select the installa- tion location so that the assembly stand can unfold completely. - Page 7 ...and fold the folding foot onto the floor. Fold the diagonal braces upwards to- wards the locking mechanism and allow them to engage with an audible click. Proceed identically for the second folding foot.
- Page 8 The claw holder must be greased to prevent the holder from prevent the mount from "seizing". Functionality Additive holding claw with quick adjustment: The illustration shows the position for clamping the seat post by tur- ning the clamping lever.
-
Page 9: Start-Up Operation
START-UP/ OPERATION: It is operated in a standing position, facing the Additive Speedlift LITE assembly stand.The force of the gas pressure damper is released with one hand by pressing the operating unit. Depending on whether a low or high load is to be lifted, additional force must be additional force must be applied to lift or lower the load. -
Page 10: Notes On Working With Holding Claws
Clamping on the top tube or down tube is not recommended, espe- cially for carbon frames, as this can cause damage. In general, no compensation can be claimed from Additive for dam- age caused by the retaining claw. When loosening bottom brackets or other work involving high forces, we recommend lowering the bike to the ground and using so-called impact wrenches. -
Page 11: General Information
• If unsafe conditions occur during work, stop work and find the cause. If you need help, please contact your service partner or Additive directly. • When replacing components, always clarify the corresponding work steps with the service partner or the Additive company or follow the corresponding written instructions. -
Page 12: Explanation Of Type Plate (Without Serial Numbers)
TYPE PLATE DECLARATION Additive Sportartikel GmbH Bernauer Str. 77 83209 Prien a. Ch. / Germany Tel +49 (0)8051 96576 0 www.additive-bikes.com max. Belastung 40 Kg max. Conformity dispose of load with relevant via recycling 40 kg Read the standards centre... -
Page 13: Important Notes On Our Gas Struts
IMPORTANT INFORMATION ABOUT OUR GAS PRESSURE SPRINGS Gas springs have a very high internal pressure (up to approx. 300 bar). They must under no circumstances be opened without instructions! Our gas springs are maintenance-free! Do not grease or oil the piston rod, etc. Our gas springs are designed and tested for the highest requirements and maxi- mum reliability. -
Page 14: Eg Declaration Of Conformity
EG DECLARATION OF CONFORMITY The manufacturer Additive Sportartikel GmbH hereby declares that the machine described below complies with the relevant safety and health re- quirements of the relevant EU directives due to its design and the version placed on the market by us. -
Page 15: Manufacturer's Declaration

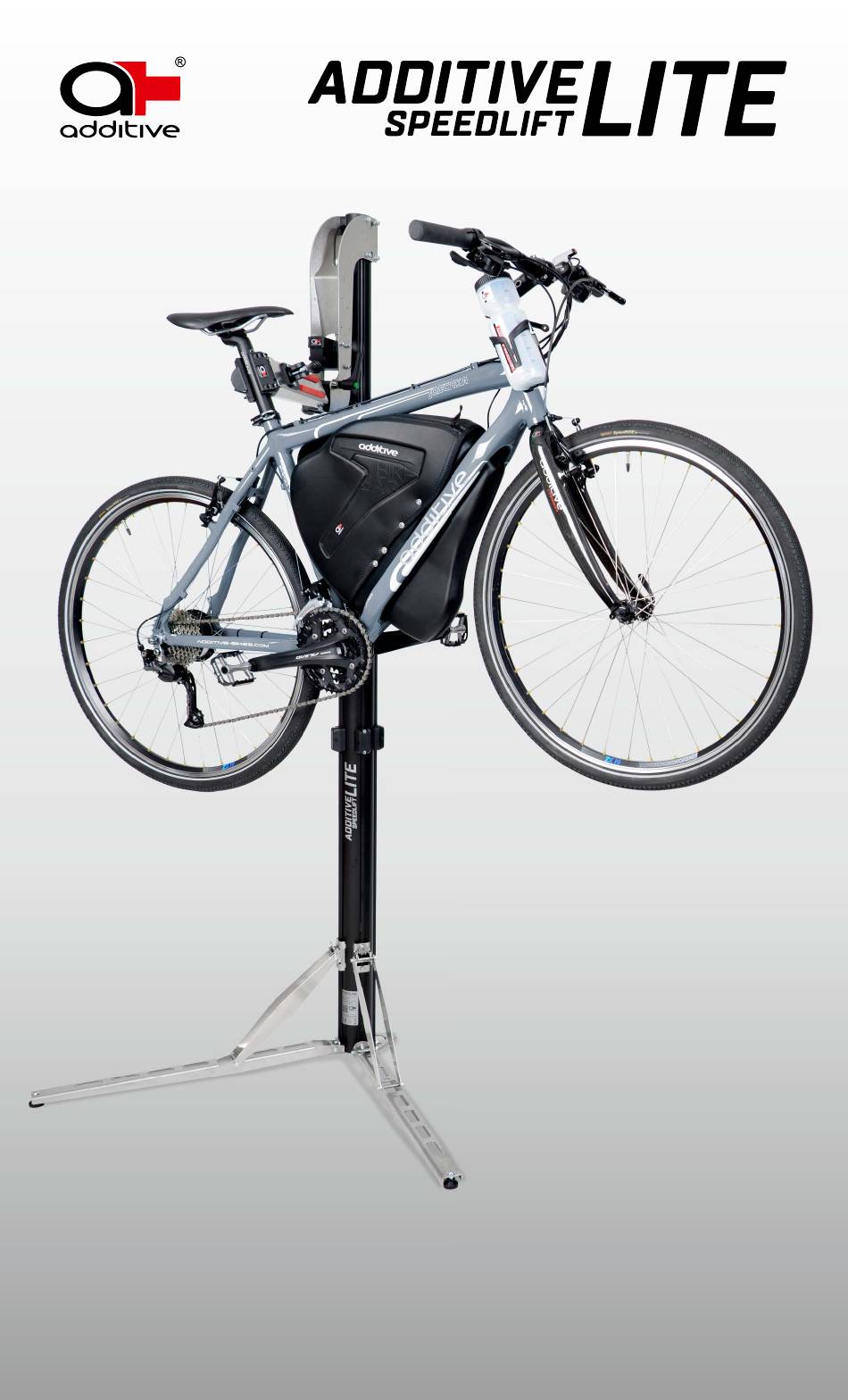

MANUFACTURER'S DECLARATION The manufacturer Additive Sportartikel GmbH hereby declares that the machine described below complies with the relevant safety and health requirements of the respective EU directives due to its design and the version placed on the market by us. - Page 16 ASSEMBLY STAND FOR BICYCLES & E-BIKES Powerful and compact The Additive Speedlift LITE is a gas pressure-supported assembly stand with holding claw. At the push of a button a force of approx. 180 N is released and heavy heavy e-bikes are lifted into the bikes are brought into the desired desired position with little effort.
