Summary of Contents for Motion HAMDON

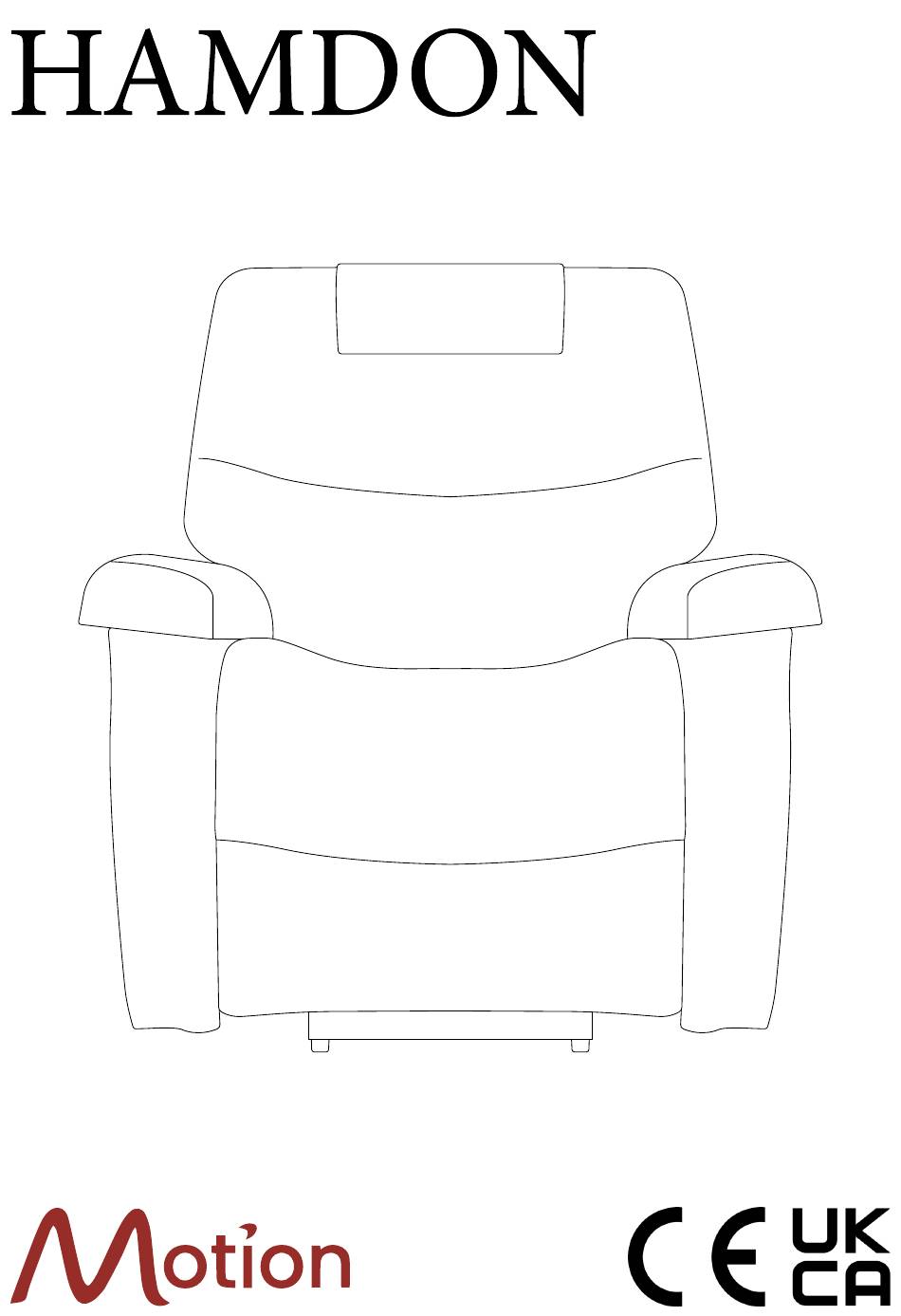

- Page 1 User Manual...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Before you operate your device, please read and understand all of the information provided for your safety. As with operating any device, only use with full alertness to ensure safety. Please observe the warnings below to avoid any damage or injury resulting from improper use of your device. -
Page 3: Table Of Contents
Contents INTRODUCTION GETTING TO KNOW YOUR RISER RECLINER RISE & RECLINE HANDSET CONTROLS ASSEMBLY DISASSEMBLY & TRANSPORTATION POSITIONING YOUR CHAIR HOW TO USE YOUR RISER RECLINER BODY POSITIONING CARE & MAINTENANCE OPTIONAL EXTRAS ADVICE & WARNINGS WARRANTY TROUBLESHOOTING SPECIFICATIONS NOTES... -
Page 4: Introduction
INTRODUCTION Thank you and congratulations on purchasing your new Motion Healthcare Hamdon Riser Recliner. Your new device is designed to provide you with quality support and comfort to suit your needs. We pride ourselves on providing safe, comfortable, and high-quality products and our goal is to ensure your complete satisfaction, we sincerely hope we achieve that, and you enjoy your Motion Healthcare device. -
Page 5: Rise & Recline Handset Controls
RISE & RECLINE HANDSET CONTROLS Lower footrest Raise footrest Raise backrest Recline backrest WARNING Never press two buttons together as this can damage your chair. WARNING Do not expose the handset to heat. This may cause damage. -
Page 6: Assembly
ASSEMBLY 1. Remove all packaging from the chair base unit and backrest. Carefully unpack all other items and ensure all parts are accounted for. 2. Slide the backrest into the base using the guides on the sides of the backrest. When the base unit’s protruding prongs are in the guides on either side of the backrest, push down on the backrest to ‘click’... - Page 7 4. At the rear of the chair, connect the base and backrest heat, massage and control functions together by connecting the internal wires (these wires will be loosely protruding from the bottom of the backrest and will be at the rear of the base). 5.
-
Page 8: Disassembly & Transportation
DISASSEMBLY & TRANSPORTATION If for any reason the riser recliner needs to be transported, ensure the disassembled components are secured properly before transport to avoid transit damage. 1. Disconnect the chair from the wall socket, place the transformer and power cable into the chair’s side pocket. -
Page 9: Positioning Your Chair
POSITIONING YOUR CHAIR Position the chair on a level surface with enough space to rise & recline. 50cm 40cm Always make sure the brakes are locked on, if you fail to do so it may move unexpectedly. WARNING Beware of possible trip hazards when positioning the power cable. -
Page 10: Body Positioning
BODY POSITIONING SITTING Sit centrally within the chair and maintain neutral posture. Avoid leaning forwards or sideways. LAYING Lay on your back and centrally within the chair. Do not lay on your side. -
Page 11: Care & Maintenance
CARE & MAINTENANCE CARING FOR TECH FABRIC UPHOLSTERY Do not overexpose tech fabric to sunlight. Tech fabric furniture must be properly cleaned to keep it free of stains, dust and dirt. Please dust frequently and occasionally wipe over with a damp, soft cloth. Let the furniture dry thoroughly before use. Never use a coloured cloth to clean tech fabric. - Page 12 ELECTRONICS Check for damage regularly following the maintenance schedule found within this user manual. If there is damage to the electronics, unplug the riser recliner from the wall socket and contact the company you purchased from. Keep all electronics away from moisture and extreme temperatures. Ensure any wires leading to the transformer are clear of pinch points and scissor mechanism linkages.
-
Page 13: Optional Extras
OPTIONAL EXTRA HEAT & MASSAGE KIT Get extra comfort with the heat & massage kit. This includes a secondary remote to provide full control over heating and massaging zones. Power to controller ON / OFF Massage Intensity Timer TIME High / Med / Low 10 / 20 / 30 Minutes Massage Mode HEAT... -
Page 14: Advice & Warnings
ADVICE & WARNINGS ELECTROMAGNETIC INTERFERENCE (EMI) Riser Recliner chairs may be susceptible to electromagnetic interference (EMI). Electromagnetic energy (EM) is emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. The interference (from radio wave sources) can cause the riser recliner to move by itself or cause permanent damage to the riser recliner’s internals. -
Page 15: General Warnings
• Beware of pinch/crush points. WARRANTY All Motion Healthcare products are sold to our partners with a warranty, they in turn will sell the product to you with a warranty, these are two separate agreements. To find out specific details of the warranty you receive or to make any claim please contact the company you purchased from. -
Page 16: Troubleshooting
CHAIR WILL NOT LIFT Damaged power cable Replace power cable Wait 10 - 15 minutes and try again Overheated chair mechanism Contact an approved Motion partner Ensure the riser recliner moves and operates OPERATING NOISES All motors hum & vibrate slightly as intended. -
Page 17: Specifications
SPECIFICATIONS Back Type Crescent No. of Motors Weight Limit 23.6 stone Seat Width 56 cm Seat Depth 51 cm Seat Height 47 cm Back Height 73 cm Total Width 92 cm Total Depth 95 cm Total Height 110 cm Seat Back Weight 16 kg Seat Base Weight 38 kg... -
Page 18: Notes
Notes... - Page 19 Notes...
- Page 20 www.motionhealthcare.co.uk 0844 257 8150...
