Royce Cube Assembly Instruction Manual

3x3.6m with led pergola
Hide thumbs Also See for Cube:

Advertisement

Quick Links

Download this manual
Assembly Instruction for Cube 3x3.6m with LED
Pergola
Welcome to your new Royce Cube Pergola.
Please read through the instructions carefully before you start.
Please retain your instructions for future reference
Important: The Cube should be assembled on a level area.
Cube Product Support
www.royce-cube.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cube and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Royce Cube

Summary of Contents for Royce Cube

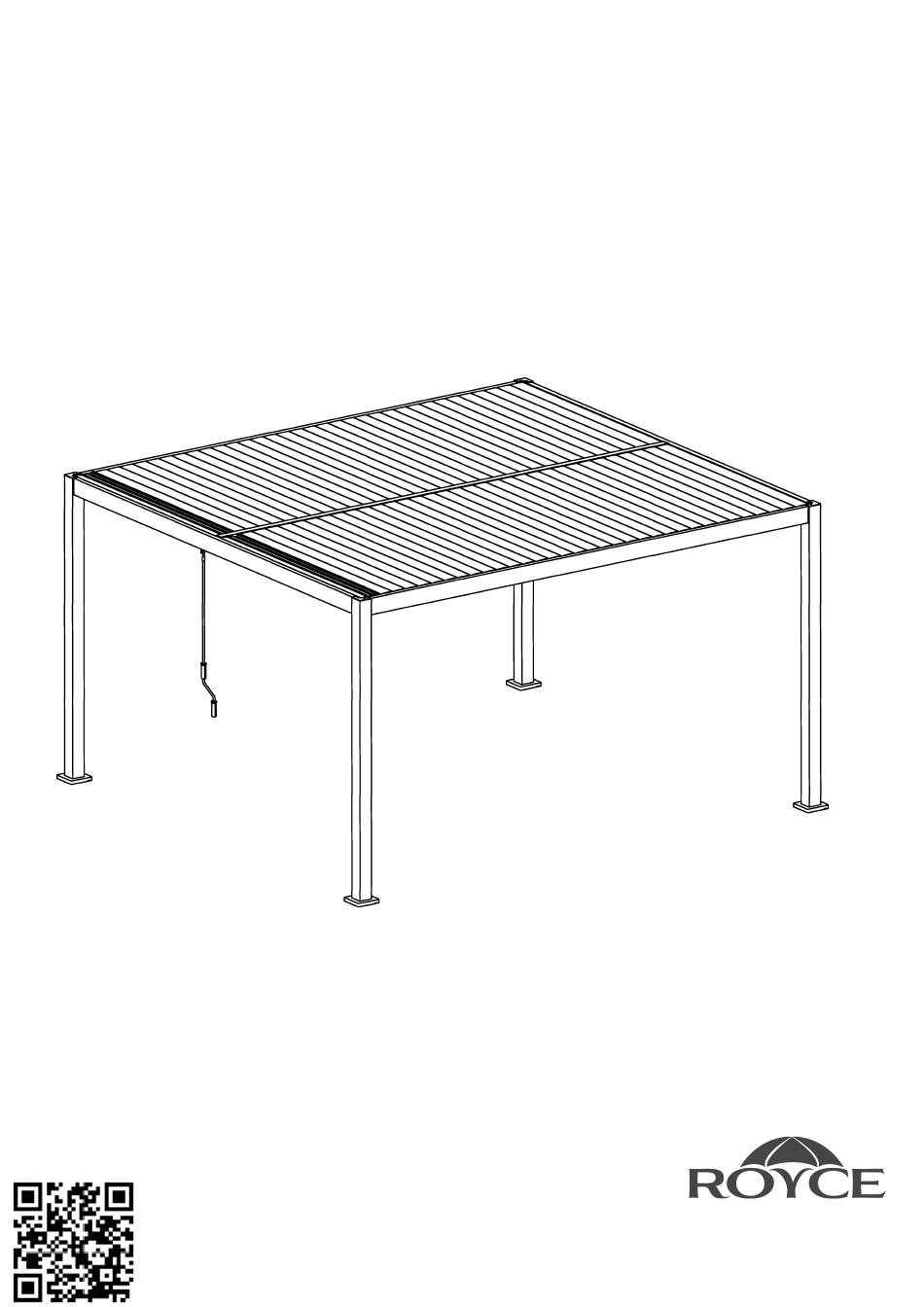

  • Page 1 Assembly Instruction for Cube 3x3.6m with LED Pergola Welcome to your new Royce Cube Pergola. Please read through the instructions carefully before you start. Please retain your instructions for future reference Important: The Cube should be assembled on a level area. Cube Product Support www.royce-cube.co.uk...
  • Page 2 PART PART DESCRIPTION NAME Leg with power Outer edge beam Outer edge beam Centre beam End beam End beam Fixed louvre Solar panel louvre Louvre Corner cap Beam connector Winding handle...
  • Page 3 PART PART DESCRIPTION NAME Middle beam fitting Louvre mechanism Louvre mechanism Winding ring M5*18 End louvre bracket Foot plate Foot plate cover...
  • Page 4 PART PART DESCRIPTION NAME M6*20 M6*15 M6*10 M6*15 M6*35 M5*12 M5*12 M6*13 Should you need any replacement parts contact your Royce Cube stockist or complete the Parts Request Form: https://www.norfolkleisurelifestyle.com/contact-us...
  • Page 5 Cube 3x3.6m with LED dimensional footprint Assembly tips: • We recommend that the installation of your Royce Cube Pergola is carried out by an experienced person. • Please read through the instructions first before you start. • You will need 2 persons to complete the assembly which will take approximately 4-6 hours.
  • Page 6 Step1 Ensure that the cut out on the side of Part Q matches the base of the leg Parts M5*12...
  • Page 7 Step 2 Note: Feed the wires down through the hole in the bracket before inserting into the frame Parts M6*20 M6*15...
  • Page 8 Step 3 Note: Make sure the cables are free and do not become trapped Parts M6*20 M6*15...
  • Page 9 Step 4 Note: Make sure the cables are free and do not become trapped Parts M6*20...
  • Page 10 Step 5 Note: Only connect the wires on the 3 corners as highlighted...
  • Page 11 Step 6 Insert the screwdriver through the hole in the lower part of the mechanism and rotate the arm to an upright position. Parts M6*13 M6*35...
  • Page 12 Important: Please take extra care not Step 7 to trap the cable as this will result in the centre light not working. Parts M6*15...
  • Page 13 Connect Step 8 cables 3-3 Connect cables -1 & 2-2 Parts...
  • Page 14 Step 9 Parts M6*15 GG 3 M5*12...
  • Page 15 Step 10 Parts M6*15 M5*12...
  • Page 16 Step 11 Parts M5*18...
  • Page 17 Step 12 Parts M6*10...
  • Page 18 Step 13 Parts...
  • Page 19 Step 14 Parts M6*10...
  • Page 20 R OY CE CU B E B I OCL I MA T I C P E R GOL A L E D Op e r a t i n g I n s t r u c t i o n s L i g h t &...
