Welcome to your new Royce Cube Pergola. Here is your step-by-step installation guide.
Before we start here is a reminder of the features to your new Pergola:
o Full aluminium construction with strengthened uprights.
o Double skinned louvres for added strength and noise reduction
o Deep gutter system to the roof which drain naturally through the uprights.
o Manually operated independant opening and closing louvres.
o 5 Year Manufacturers Warranty on main structure
o 2 Year Manufacturers Warranty on CUBE Pull Down Screens and LED Lights
Scan me to find out more. Or go to www.roycecube.co.uk

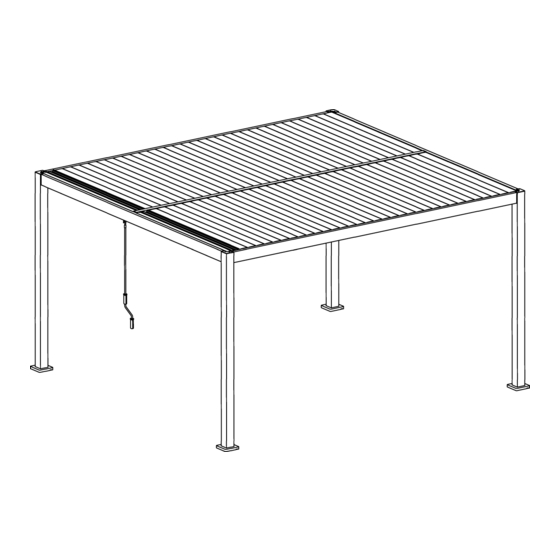

ROYCE CUBE BIOCLIMATIC PERGOLA.
Have a question about your Royce Cube Pergola?
Assembly Instruction Manual for
3M x 3M with LED
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Royce Cube
Summary of Contents for Royce Cube

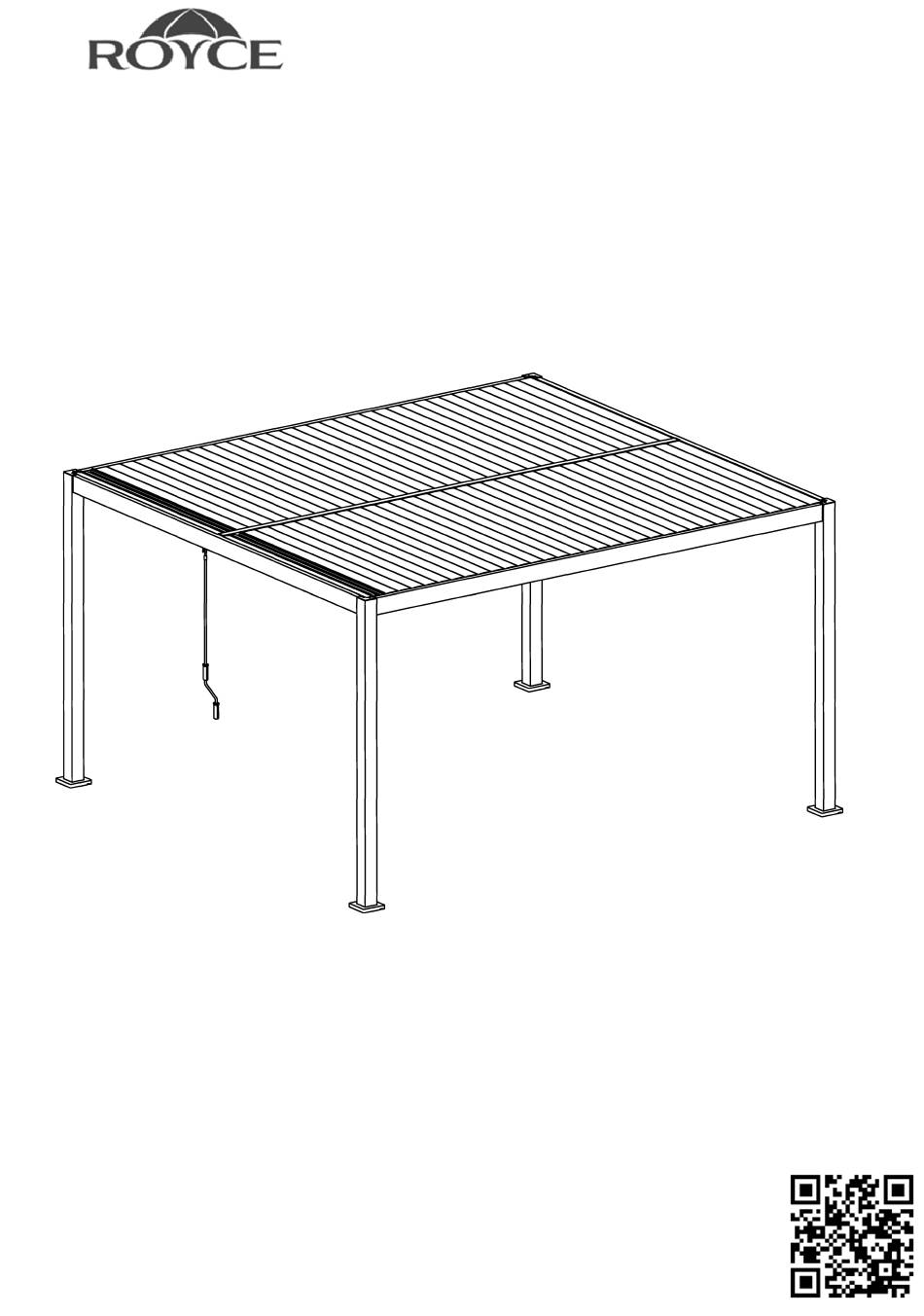

- Page 1 Assembly Instruction Manual for 3M x 3M with LED Welcome to your new Royce Cube Pergola. Here is your step-by-step installation guide. Before we start here is a reminder of the features to your new Pergola: o Full aluminium construction with strengthened uprights.
- Page 2 PART PART DESCRIPTION NAME Leg with power Outer edge beam Outer edge beam Centre beam End beam End beam Fixed louvre Solar panel louvre Louvre Corner cap Beam connector Winding handle...
- Page 3 PART PART DESCRIPTION NAME Middle beam fitting Louvre mechanism Louvre mechanism Winding ring M5*18 End louvre bracket Foot plate Foot plate cover...
- Page 4 PART DESCRIPTION M6*20 M6*15 M6*10 M6*15 M6*35 M5*12 M5*12 M6*13 Components and fixings are included. Should you require any replacement parts please complete our Parts Request Form at: www.norfolkleisurelifestyle.com/contact-us...
- Page 5 Important The Royce Cube Perfola should be assembled on a level area. We recommend that the installation of your Royce Cube Pergola is carried out by an experienced person. Please read through the instructions first before you start.
- Page 6 Step1 Ensure that the cut out on the side of Part Q matches the base of the leg Parts M5*12...
- Page 7 Step 2 Note: Feed wire 3 down through the hole in bracket (I) before Parts inserting into the frame M6*20 M6*15...
- Page 8 Step 3 Note: Make sure the cables are free and do not become trapped Parts M6*20 M6*15...
- Page 9 Step 4 Note: Make sure the cables are free and do not become trapped Parts M6*20...
- Page 10 Step 5 Note: Only connect the wires on the 3 corners as highlighted...
- Page 11 Step 6 Insert the screwdriver through the hole in the lower part of the mechanism and rotate the arm to an upright position. Parts M6*13 M6*35...
- Page 12 Step 7 Important: Please take extra care not to trap the cable as this will result in the centre light not working. Parts M6*15...
- Page 13 Connect Step 8 cables 3-3 Connect cables 1-1 & 2-2 Parts...
- Page 14 Step 9 Parts M6*15 GG 3 M5*12...
- Page 15 Step 10 Parts M6*15 M5*12...
- Page 16 Step 11 Parts M5*18...
- Page 17 Step 12 Parts M6*10...
- Page 18 Step 13 Parts...
- Page 19 Step 14 Parts M6*10...
