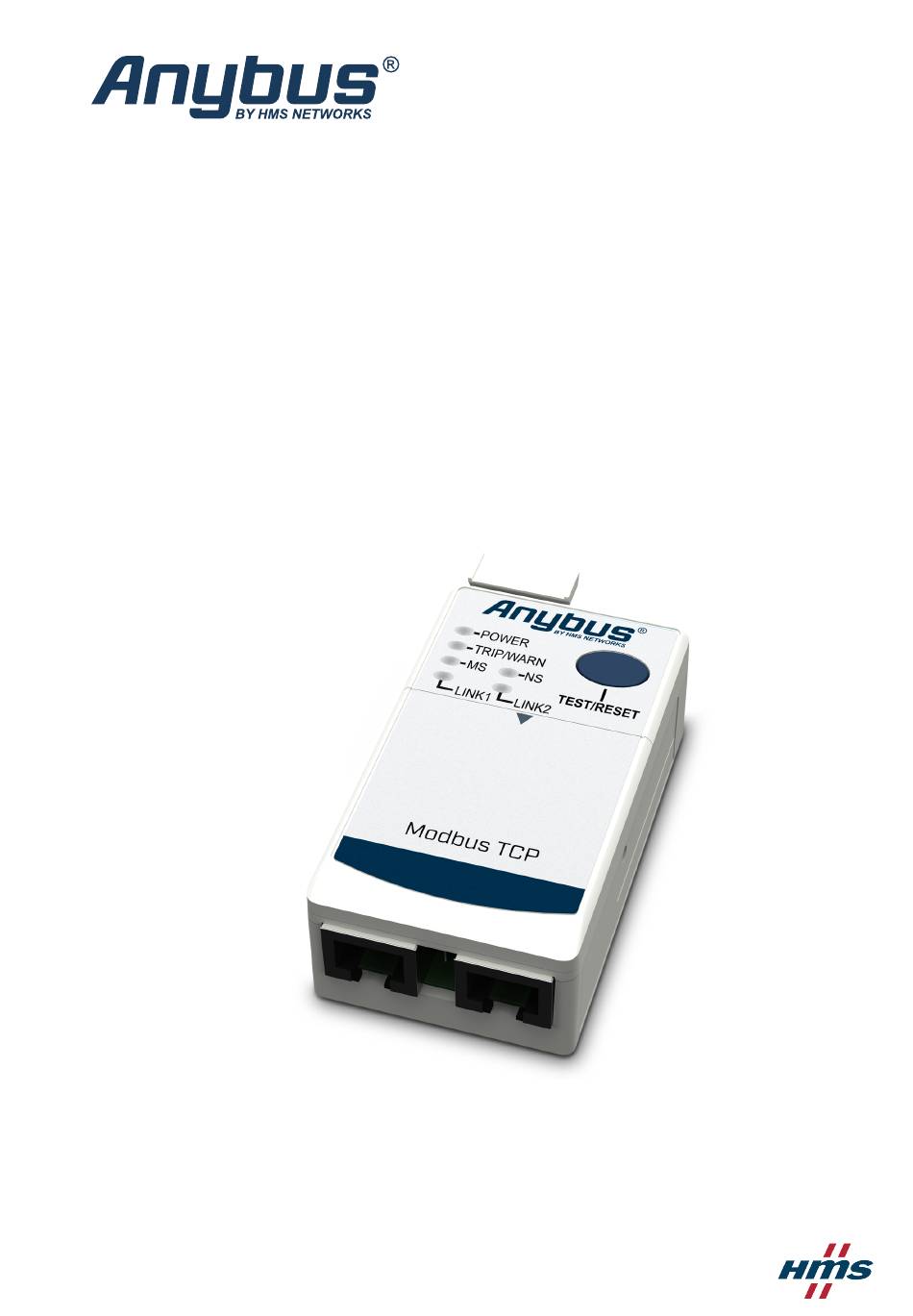

ENGLISH Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP USER MANUAL SCM-1202-165 Version 1.3 Publication date 2024-09-11...
Page 2
The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.
Preface Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP 1. Preface 1.1. About This Document This manual describes the installation and configuration of the E300-MBTCP. For information on how to configure the E300 Electronic Overload Relay, refer to the user manual for the E300 Electronic Overload Relay.
Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP Trademarks Safety Symbols DANGER Instructions that must be followed to avoid an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING Instructions that must be followed to avoid a potential hazardous situation that, if not avoided, could result in death or serious injury.
Safety Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP 2. Safety 2.1. Intended Use The intended use of this equipment is as a communication interface. The communication module allows an E300 Relay to be integrated into an automation system. The communication module has two RJ45 connectors that function as a switch.
Installation Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP 4. Installation 4.1. E300 Relay Modules Three modules comprise the E300 Relay. All three modules are required to make a functional overload relay. Position Module E300-MBTCP E300 Relay Control Module E300 Relay Sensing Module SCM-1202-165 Version 1.3...
Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP Attach E300 Communication Module 4.2. Attach E300 Communication Module Procedure To attach the E300 Communication Module to the E300 Relay Control Module: Pull out the locking tab located on the upper left side of the E300 Relay Control Module.
Connect to Modbus TCP Network Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP To lock the modules, push in the locking tab located on the upper left side of the E300 Relay Control Module. 4.3. Connect to Modbus TCP Network The E300 Communication Module has two RJ45 ports that act as an Ethernet switch.
Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP Connect to Ground 4.4. Connect to Ground Motor protection function: Ground Fault – zero sequence method (50 N). Connect the Green Wire to Functional Earth (Ground). Page 8 of 44 SCM-1202-165 Version 1.3...
IP Address Setting Via Rotary Switches Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP 4.5. IP Address Setting Via Rotary Switches Use the three rotary switches to select the last octet for the IP address 192.168.1.xxx. Node Address Function 001 - 254 Set IP Address to 192.168.1.xxx...
Page 14
Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP IP Address Setting Via Rotary Switches Using a value greater than 255 When the rotary switches are set to a value greater than 255 (excluding 888): Configure the E300 Communication Module to Use configured settings, values from non volatile storage.
Configuration Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP 5. Configuration 5.1. IP Address Setting 5.1.1. IP Address Setting Via BOOTP/DHCP Utility Before You Begin By default, the E300 Communication Module is DHCP Enabled. MAC ID You find the hardware MAC ID printed underneath the E300 Communication Module sliding front cover. The MAC ID has a format similar to: 00-0b-db-14-55-35.
Page 16
Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP IP Address Setting Double-click the MAC address of the module to be configured. • The New Entry window with the module Ethernet Address (MAC) opens. Enter the IP address, host name, and a module description.
IP Address Setting Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP 5.1.2. IP Address Setting Via Web Browser and MAC Scanner Before You Begin You can assign network parameters via a standard web browser or Media Access Control (MAC) scanner software.
Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP Access the Web Server Administration Mode 5.2. Access the Web Server Administration Mode Administration Mode is the maintenance mode for the E300 Relay that allows you to configure parameters, modify security policies, enable web servers, perform firmware updates, and issue commands.
Page 19
Access the Web Server Administration Mode Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP If the E300 Communication Module have the factory default configuration: Refer to E300 Communication Module Network Information (page Enter Old password, which is the default password.
Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP Permanently Enable the Web Server 5.3. Permanently Enable the Web Server When the E300 Communication Module web server is enabled, you can view and configure the E300 Relay parameters. Before You Begin As a security precaution, the E300 Communication Module web server control is disabled by default.
Configuration Parameters Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP 5.4. Configuration Parameters In the E300 Communication Module web server you can configure the E300 Relay parameters. For detailed information about viewing and configuring the parameters via the web server, refer to the E300 Electronic Overload Relay user manual.
Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP View Parameters 5.5. View Parameters Procedure View Parameters: In the left sidebar menu, click Parameters. Select a parameter group to view. The example shows the Current Monitoring parameters. To increase the update rate of the data being viewed, enter a faster update time in the Seconds between refresh box.
Edit Parameters Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP 5.6. Edit Parameters Before You Begin Before you can start to edit the parameters, ensure that there is no active communication on the Modbus TCP network where the E300 Relay is connected.
Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP Ethernet Network Configuration 5.7. Ethernet Network Configuration Setting Value Description Ethernet Interface Configuration Default: Dynamic (DHCP) Static For Dynamic DHCP: The assigned IP configuration is shown. The setting cannot be changed. For Static: The IP configuration can be changed.
Modbus TCP Timeout and Word Order Configuration Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP 5.8. Modbus TCP Timeout and Word Order Configuration Setting Value Description Modbus TCP Timeout Default value: 120 seconds If there is no Modbus communication sent over the established Modbus TCP 0 to 65535 seconds connection, the connection is considered inactive.
Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP Verify Operation 6. Verify Operation 6.1. LED Guide E300 Communication Module LED Indicators Indicator State Link 1 Status Link 2 Status Network Status TRIP/WARN Module Status No link established. No link established.
Maintenance Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP 7. Maintenance 7.1. Web Server Password Configuration To change the E300 Communication Module web server password, enter Administrative Settings > Password Configuration. SCM-1202-165 Version 1.3 Page 23 of 44...
Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP Web Server System Password Reset 7.2. Web Server System Password Reset It is possible to restore the user name and system password to the factory default value. Before You Begin IMPORTANT When you reset the E300 Communication Module web server password, all other E300 Relay settings and configuration parameters are reset to the factory default values.
Troubleshooting Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP 8. Troubleshooting In E300 Communication Module web server Diagnostics you can overview the metering and diagnostic information the E300 Electronic Overload Relay generates. For detailed information about diagnostics and troubleshooting help, refer to the user manual for the E300 Electronic Overload Relay.
Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP Protection Trip Status 8.2. Protection Trip Status Procedure To Test the E300 Relay: Ensure that the E300 Relay is untripped. To open the trip relay contact, press the Test/Reset button for 2 seconds and then release it.
Ethernet Statistics Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP 8.4. Ethernet Statistics On the Ethernet Statistics page you can view statistics for the Ethernet ports. SCM-1202-165 Version 1.3 Page 27 of 44...
Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP Technical Data 9. Technical Data For complete technical specifications and regulatory compliance information, please visit www.hms-networks.com. 9.1. Technical Specifications Article identification 028810-B Communication connector RJ45 x 2 Power consumption Typical: 220 mA @ 5 VDC Storage temperature -40 to +85 °C...
Reference Guides Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP 10. Reference Guides 10.1. Modbus Data Model Coils Single bit Read-Write Data can be alterable by the application program. Input Registers 16-bit word Read-Only Data can be provided by the I/O system...
Input Registers Anybus-E300-MBTCP - E300 Communication Module for Modbus TCP 10.5. Input Registers Modbus register Modbus address Access rights Parameter name 30001 0x0000 %TCU 30002 0x0001 Time to Trip 30003 0x0002 Time to Reset 30004 0x0003 Current Trip Status 30005...
