Function and purpose
Physical Description
Installation
Package content
Function and purpose
VT-ACCU / Rechargeable backup battery
Keeps the device operational while the main power source drops. While in operation, the batteries are charged. If the
main power input voltage drops, the unit will work from VT-ACCU rechargeable batteries until the batteries are
discharged.
It is used for VT604t, VT825t, and VT855t.
DO NOT USE NON-RECHARGEABLE BATTERIES!
ONLY USE RECHARGEABLE BATTERIES (ACCUMULATORS)!
Size: 14500
Voltage: 3.7 V
Type: Li-Ion
Recommended battery
In development. Coming soon.
Physical Description

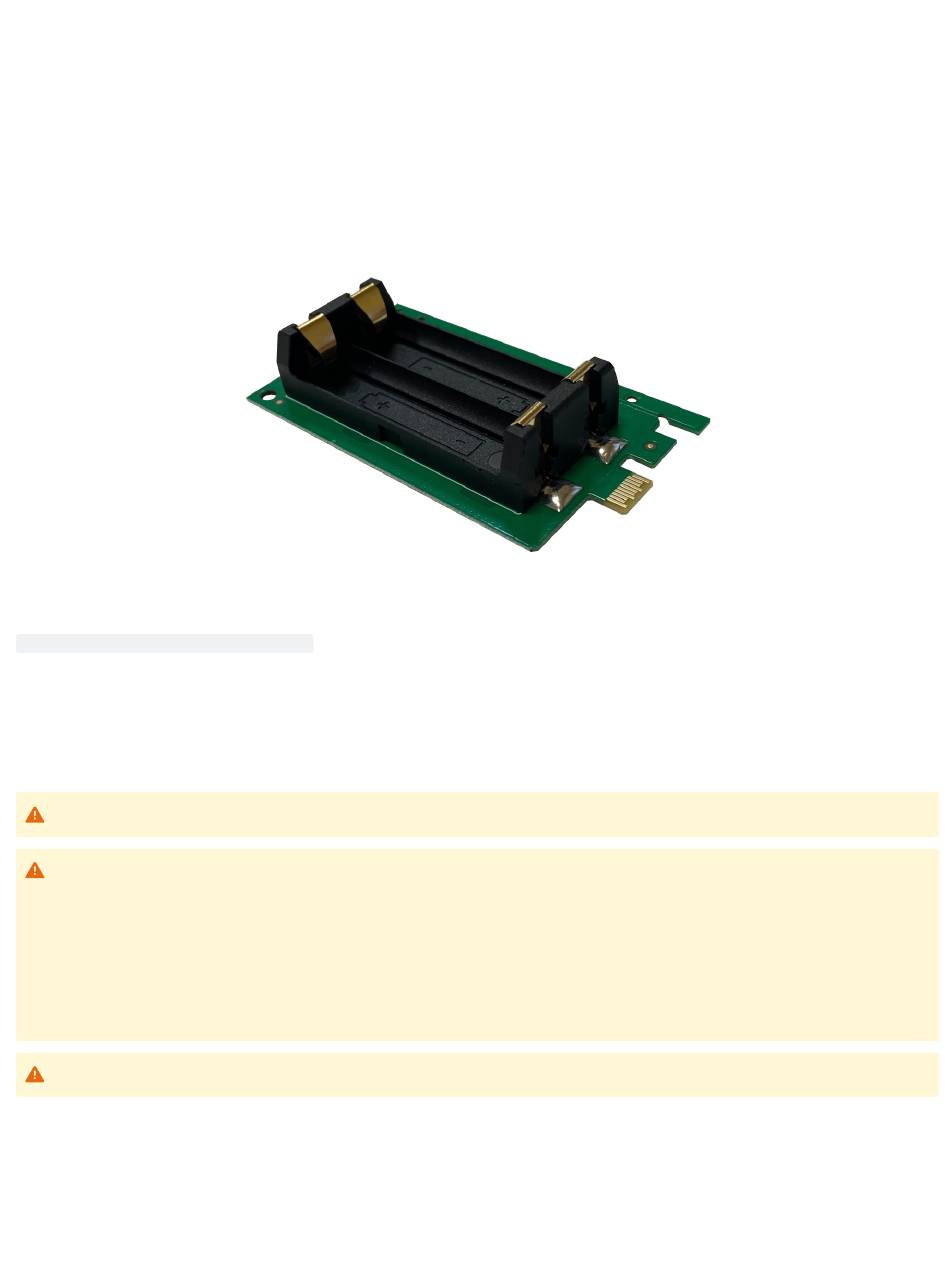

Front panel:
is an extension module that can be purchased separately.
14500 800 2.5A BUTTON TOPXTAR
