- Page 2 TABLE of contents thank you for purchasing an innled product « Dedicated to supporting a French industrial ecosystem, this product was developed and assembled by our team in our Montpellier workshop. Because we attach special importance to the feedback of our customers, we invite you to contact us for any comment or suggestion.
-
Page 3: Precautions For Use
For updates of the documentation and any information relative to this product and the rest of the INNLED range, visit our website: www.innled.fr. For any questions about the safe handling of this product, contact your INNLED dealer or call for technical assistance from Monday to Friday from 9am to 6pm: +33 9500 508 78. - Page 4 Castelnau-Le-Lez, le 01/10/2024 EN61000 Electromagnetic compatibility (EMC) -3.2/3.3 SAS INNLED au capital de 70 000 - SIRET 751 597 600 00020 - NAF 2740Z CERTCE-T4E-241001_V1.014 360 avenue des compagnons - 34170 CASTELNAU-LE-LEZ - FRANCE © INNLED 2024 info@innled.fr - www.innled.fr...
-
Page 5: Introduction And Overview

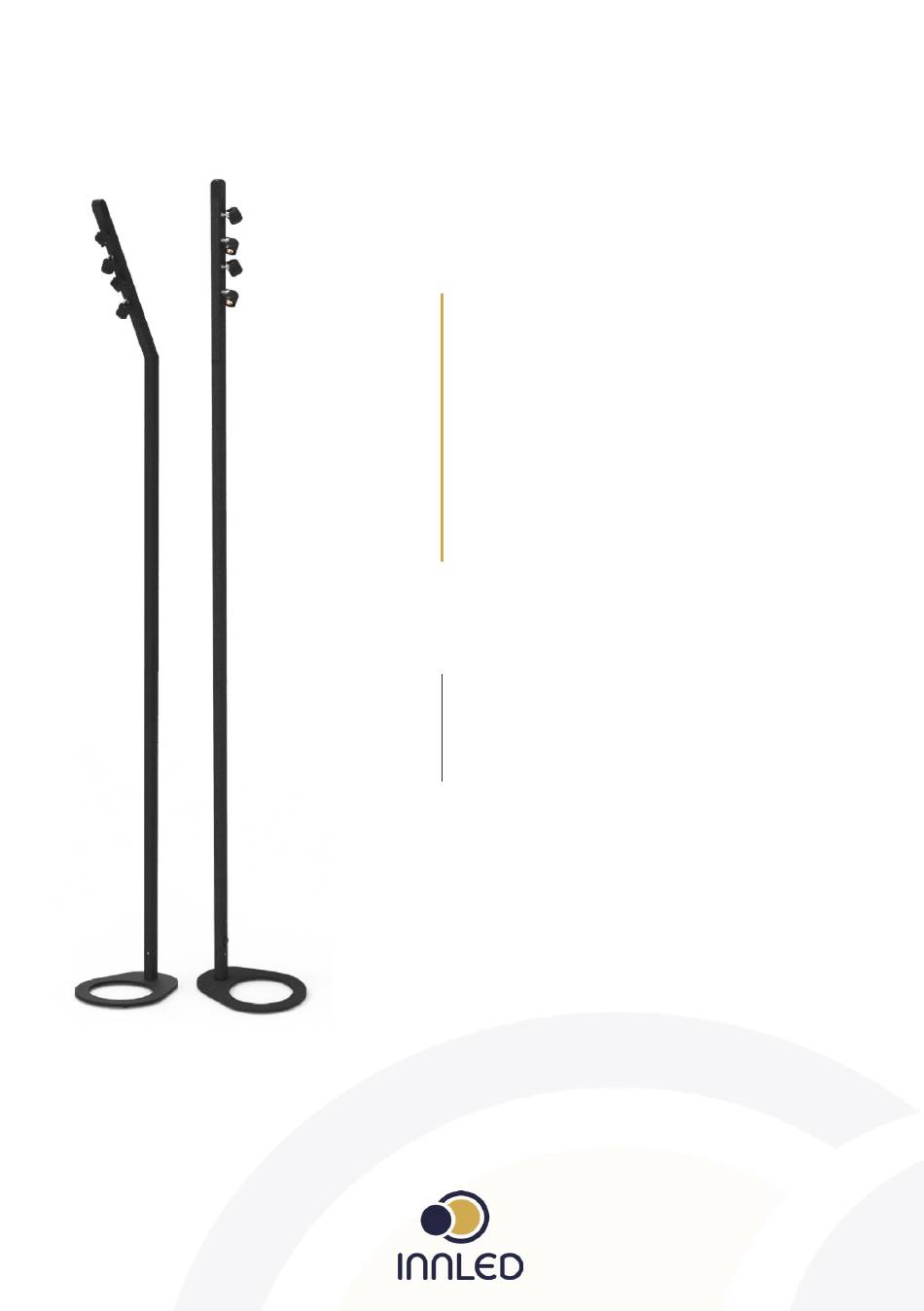

Introduction & overview overview T4-E // standard configuration controller The T4-E is a battery-powered lighting mast, which includes 3 LEDs per spotlight and a choice of color temperatures : Head with 4 spotlights 3000K 4000K CCT Tunable white (3000K to 5600K) Hermatwist®... - Page 6 T4-E with extensions These two additional extensions tubes allow 4 possible configurations : The T4-E is proposed with 2 extra extension tubes (265mm and 500mm) as well as an extra ballast. Head with 4 spotlights INCLINED Hermatwist® Intermediate extension tube 265mm Ext.
- Page 7 The transportation cases can contain either : 500 MM ext. tube > 2 x (T4-E + 500mm ext. tube + 265mm ext. tube + ballast) > 3 x (T4-E without ext. tubes or ballast) 265 MM ext tube Case configuration with 3 x T4-E masts (without extra ext.
- Page 8 REMINDER The transportation cases can contain either : Remember to turn the head > 2 x (T4-E + 500mm Ext. Tube + 265mm Ext. Tube + Ballast) module around 180° to obtain a straight mast. > 3 x (T4-E = without ext. tubes or ballast) ext.
- Page 9 2m30 assemblY (standard configuration) 2m15 assemblY (WITH OPTION OF EXT. TUBES) The 2.15m configuration can be assembled in spaces with low ceilings in which the 2.30m configuration does not fit. head head Remember to turn the head around 180° to obtain a straight mast.
-
Page 10: Remote Controlling
1m60 assembly (WITH OPTION OF EXT. TUBES) remote controlling Overview of T4-E Head rf controller compatible with INNLED systems : LAKO (TA660V) and Transmitter (TA51) head rf controller lumenradio® > compatible with : - INNLED LAKO (TA660V) Remember to turn... - Page 11 remote controlling remote controlling manual mode & using your mast for the first time choice of the Base colour Press the button briefly to switch on your mast, and the spotlights will start to animate : this is the LED test Choice of the base colour and rge indication of the remote controlling setting.
- Page 12 LAKO allows you to control your masts remotely from a single device : the There are 3 or 4 ways to remote control your T4-E, depending on its version. RF DMX transmitter is integrated into the remote control. Effects, colors and intensity can be customized.
- Page 13 Your mast has selected LumenRadio® and exited the T4-E offers an enhanced stability thanks to a Configuration Menu. lower gravity center of the product. Charge the battery module using the To assign your mast to your LumenRadio®...
-
Page 14: Protection Mode
REINITIALIZING Between 50 and 75% You can reset the battery, but INNLED will not be held responsible for any wrong manipulation and this operation may affect warranty coverage. Between 75 and 100% The LEDs are off . - Page 15 Do not try to repair the device yourself, this could create a risk for safety from 9am to 6pm or damage that would not be covered by the INNLED warranty. Any other intervention must be carried out by the INNLED After Sales Service.
