Summary of Contents for DeltaPix H4KFWSD08DPX

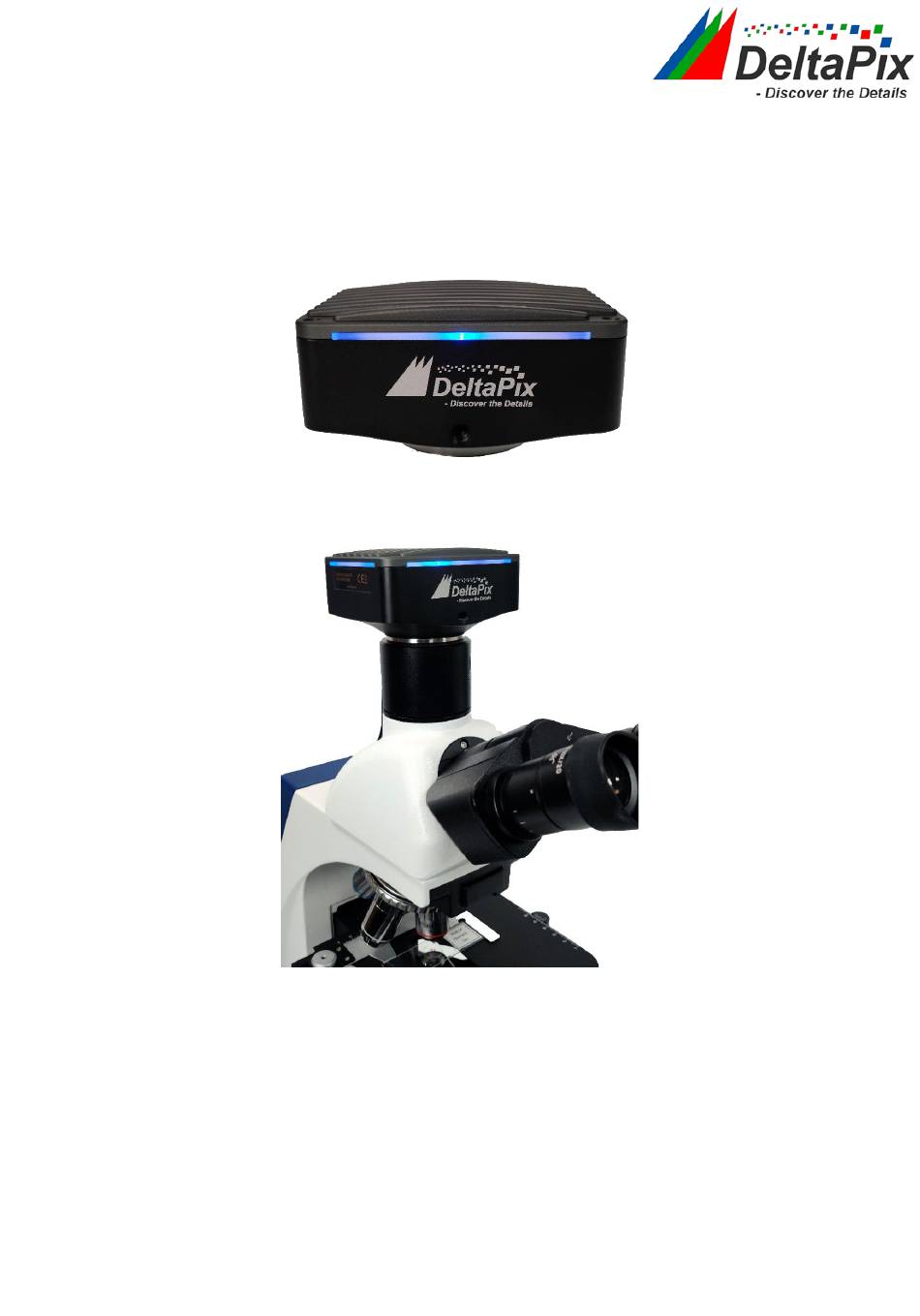

- Page 1 H4KFWSD08DPX/H4KFW08DPXII User Manual H4KFWSD08DPX/ H4KFW08DPXII User Manual...
-
Page 2: Table Of Contents
Connecting multi-cameras to the router through the GE port/WLAN STA mode for the network application ..........................8 Brief Introduction of H4KFWSD08DPX UI and Its Functions ............ 12 4KView UI ............................12 The camera control panel on the left side of the video window ........ 13 The Measurement Toolbar on top of the video window .......... -
Page 3: H4Kfwsd08Dpx User Manual
DHCP configuration or manual configuration. unicast/multicast configuration; Connecting 5G WLAN adapter (USB3.0 interface) in AP/STA mode; WLAN Interface 1. Connecting USB3.0 port of PC for video transfer using DeltaPix InSIght USB3.0 Interface 2. MJPEG format video; Image Capture and Video Saving in SD card... -
Page 4: Isp Function
H4KFWSD08DPX/H4KFW08DPXII User Manual mode. ISP Function Function Name Function Description Automatic / Manual Exposure Exposure / Gain Manual / Automatic / ROI Mode White Balance Supported Sharpening Supported 3D Denoise Saturation Supported Adjustment Supported Contrast Adjustment Brightness Supported Adjustment Supported... -
Page 5: Camera Working Standalone With The Built-In 4Kview Software
PC software InSight → https://www.deltapix.dk/software-download/ H4KFWSD08DPX/H4KFW08DPXII Application Configurations You can use the H4KFWSD08DPX/ H4KFW08DPXII camera in multiple different ways. Each application requires different hardware and setup. Camera working standalone with the built-in 4KView software. For this application, apart from the microscope, you only need an HDMI monitor, the supplied USB mouse,... -
Page 6: Camera Working With Pc Software (Deltapix Insigh)
• Drag and drop the included virtual dongle file into the InSight software • Start DeltaPix InSight (See DeltaPix InSight user manual for more info) https://www.deltapix.dk/Software/Insight/Manual/PDF/DeltaPix_InSight_Manual.pdf Camera working in WLAN mode (AP mode) It requires that the PC supports WLAN. - Page 7 H4KFWSD08DPX/H4KFW08DPXII User Manual Figure 4-2 The PC or Mobile Device Connect to the Camera through WLAN The steps to start the camera are listed below: Start the camera according to Sec. 4.1. After the camera is running, moving the ⚫...
-
Page 8: Connecting Camera To The Pc With Gigabit Ethernet Port (Coming Soon)
PC manually and ensure their IP addresses are in the same net. The subnet mask and gateway of the camera and PC must be the same. Figure 4-3 Connecting the H4KFWSD08DPX/H4KFW08DPXII Camera with Ethernet Cable to the PC Start the camera according to Sec. - Page 9 H4KFWSD08DPX/H4KFW08DPXII User Manual Figure 4-4 Configure the Camera IP Figure 4-5 Configure the PC’s IP After the above configurations are finished, user can connect the camera to the computer through the USB to Ethernet adapter as shown below: Connect the GE port with the Ethernet cable to the PC’s network port;...
-
Page 10: Connecting Multi-Cameras To The Router Through The Ge Port/Wlan Sta Mode For The Network Application
H4KFWSD08DPX/H4KFW08DPXII User Manual Connecting multi-cameras to the router through the GE port/WLAN STA mode for the network application In LAN/WLAN STA mode, the camera connects to router LAN/WLAN by Ethernet cable GE/WLAN STA mode. If a router with GE/WLAN capability is used, users could connect the router with Ethernet cable/WLAN and control the camera. - Page 11 H4KFWSD08DPX/H4KFW08DPXII User Manual Or start the camera according to Sec. 4.1. After the camera is running, moving the ⚫ mouse to the bottom of the UI and clicking the button on the Camera Control Toolbar at the bottom of the video window, a small window called...
- Page 12 H4KFWSD08DPX/H4KFW08DPXII User Manual Install the DeltaPix InSIght software on your PC. Alternatively, install the free ⚫ 4KView App on the android mobile device. Plug the Ethernet cable into the camera’s port and the other end to the PC (for ⚫...
- Page 13 H4KFWSD08DPX/H4KFW08DPXII User Manual Make sure that your PC or your mobile device is connected to the LAN or WLAN of ⚫ the router; Start the DeltaPix InSight software or 4KView App and check the configuration. Normally, active HDMI 4K cameras are automatically recognized. The live image of each camera is displayed.
-
Page 14: Brief Introduction Of H4Kfwsd08Dpx Ui And Its Functions
H4KFWSD08DPX/H4KFW08DPXII User Manual Brief Introduction of H4KFWSD08DPX/H4KFW08DPXII UI and Its Functions 4KView UI H4KFWSD08DPX/H4KFW08DPXII UI shown in Figure 5-1 includes a Camera Control Panel on the left of the video window, a Measurement Toolbar on the top of the video window... -
Page 15: The Camera Control Panel On The Left Side Of The Video Window
H4KFWSD08DPX/H4KFW08DPXII User Manual The camera control panel on the left side of the video window Camera Control Panel controls the camera to achieve the best video or image quality according to the specific applications; It will pop up automatically when the mouse cursor... -
Page 16: The Measurement Toolbar On Top Of The Video Window
H4KFWSD08DPX/H4KFW08DPXII User Manual The Measurement Toolbar on top of the video window Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the... - Page 17 H4KFWSD08DPX/H4KFW08DPXII User Manual Scale Bar Arrow Execute Calibration to determine the corresponding relation between magnification and resolution, which will establish the corresponding relationship between measurement unit and the sensor pixel size. Calibration needs to be done with the help of a micrometer. For...
-
Page 18: Icons And Functions Of The Synthesis Camera Control Toolbar At The Bottom Of The Video Window
H4KFWSD08DPX/H4KFW08DPXII User Manual Icons and functions of the Synthesis Camera Control Toolbar at the bottom of the video window Icon Function Icon Function Zoom In the Video Window Zoom Out the Video Window Horizontal Flip Vertical Flip Video Freeze Display... - Page 19 H4KFWSD08DPX/H4KFW08DPXII User Manual Dynamic host control protocol allows DHCP server to automatically assign IP information to the DHCP camera. Only in Sec 6.4 LAN networking this item should be checked, so that cameras can automatically get IP information from routers/switches to facilitate networking operation;...
- Page 20 H4KFWSD08DPX/H4KFW08DPXII User Manual Figure 5-6 Manual DHCP and Multicast 5.4.3 Setting>Network>WLAN WiFi Mode AP/STA mode to select; Channel/SSID Channel for the mode and SSID for the mode. Here, the SSID is the router’s SSID; Password Camera Password for the mode. Router...
- Page 21 H4KFWSD08DPX/H4KFW08DPXII User Manual Figure 5-8 Comprehensive Magnification Calibration Settings Page Name Names such as 10X, 40X, 100X are based on magnification of the microscopes. For continuous zoom microscopes, ensure that the selected magnification coincides with the scale alignment line on the microscope zoom knob;...
- Page 22 H4KFWSD08DPX/H4KFW08DPXII User Manual 5.4.7 Setting>Storage Figure 5-10 Comprehensive Setting of SD Card Setting Page Prefered SD Card: Select it to save the video and image to the SD card. Storage Page USB Flash Disk: Select it to save the video and image to the SD card.
- Page 23 H4KFWSD08DPX/H4KFW08DPXII User Manual 5.4.9 Setting>Language Figure 5-12 H4KFWSD08DPX Comprehensive Setting of Language Selection Setting Page English Set language of the whole software into English; Simplified Set language of the whole software into Simplified Chinese; Chinese Traditional Set language of the whole software into Traditional Chinese;...
-
Page 24: Sample Photos Captured With H4Kfwsd08Dpx Series Camera
H4KFWSD08DPX/H4KFW08DPXII User Manual Sample Photos Captured with H4KFWSD08DPX Series Camera Rabbit Emdryo captured H4KFWSD08DPX Ovary Captured with H4KFWSD08DPX 22 / 26... - Page 25 H4KFWSD08DPX/H4KFW08DPXII User Manual Cotton Stem captured with H4KFWSD08DPX Taste Bad Captured with H4KFWSD08DPX 23 / 26...
- Page 26 H4KFWSD08DPX/H4KFW08DPXII User Manual MK54-40 Corn Leaf 24 / 26...
