Summary of Contents for DeltaPix H4KFWSD08DPX

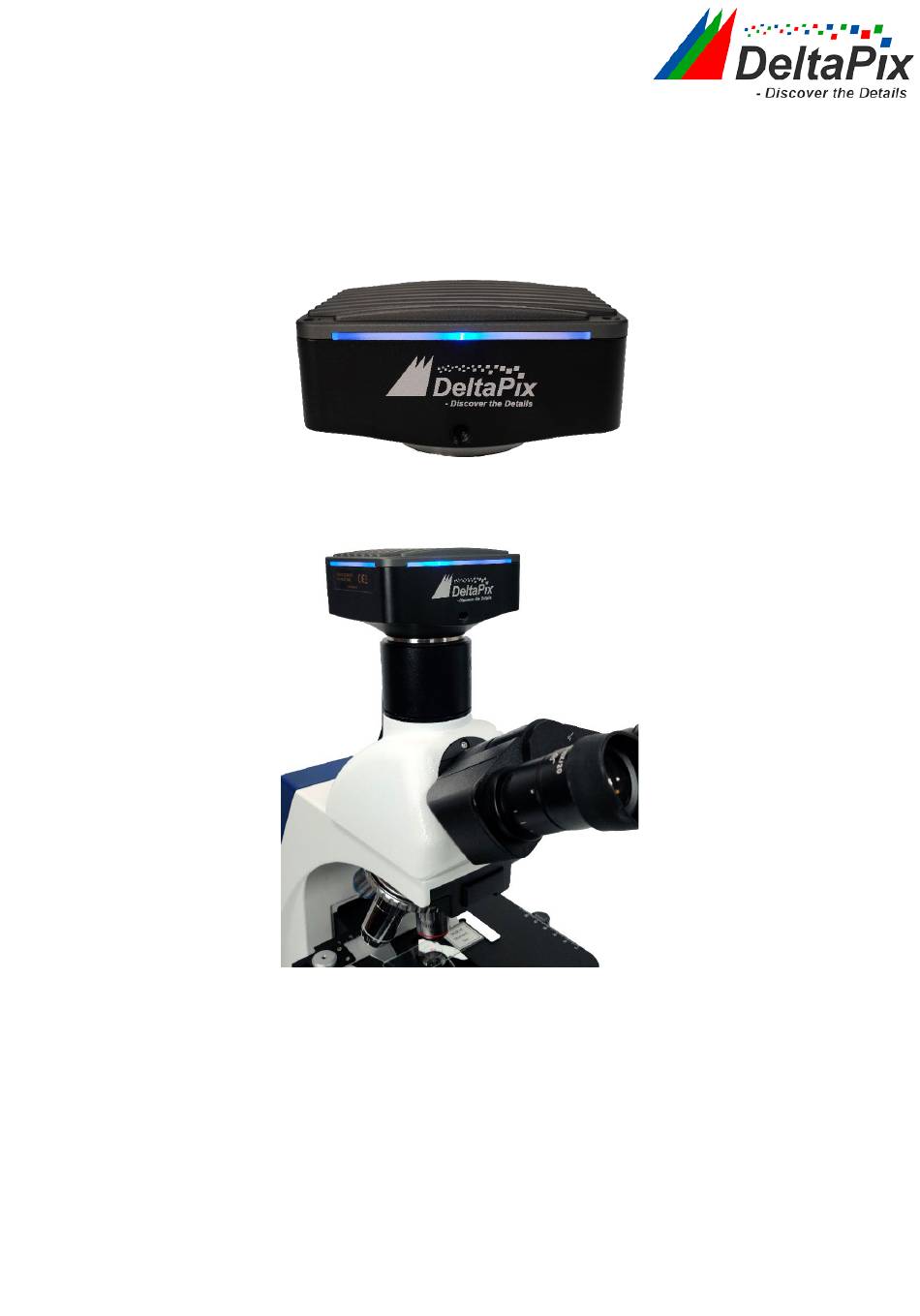

  • Page 1 H4KFWSD08DPX User Manual H4KFWSD08DPX User Manual...

  • Page 2: Table Of Contents

    Connecting multi-cameras to the router through the GE port/WLAN STA mode for the network application ........................8 Brief Introduction of H4KFWSD08DPX UI and Its Functions ............ 12 4KView UI ............................12 The camera control panel on the left side of the video window ........ 13 The Measurement Toolbar on top of the video window ..........

  • Page 3: H4Kfwsd08Dpx User Manual

    DHCP configuration or manual configuration. unicast/multicast configuration; Connecting 5G WLAN adapter (USB3.0 interface) in AP/STA mode; WLAN Interface 1. Connecting USB3.0 port of PC for video transfer using DeltaPix InSIght USB3.0 Interface 2. MJPEG format video; Image Capture and Video Saving in SD card...

  • Page 4: Isp Function

    The software or the APP can be downloaded from the following link： Android: Insert QR code for app ! (coming soon) PC software InSight  https://www.deltapix.dk/software-download/ H4KFWSD08DPX Application Configurations You can use the H4KFWSD08DPX camera in multiple different ways. Each application requires different hardware and setup. 2 / 26...

  • Page 5: Camera Working Standalone With The Built-In 4Kview Software

    A computer or a network connection is not required to operate the camera in this mode. The steps to start the camera are listed below: Figure 7-1 H4KFWSD08DPX Camera with the HDMI Displayer Connect the camera to a HDMI displayer using the HDMI cable ...

  • Page 6: Camera Working With Pc Software (Deltapix Insigh)

    • Drag and drop the included virtual dongle file into the InSight software • Start DeltaPix InSight (See DeltaPix InSight user manual for more info) https://www.deltapix.dk/Software/Insight/Manual/PDF/DeltaPix_InSight_Manual.pdf Camera working in WLAN mode (AP mode) It requires that the PC supports WLAN.
  • Page 7 H4KFWSD08DPX User Manual Figure 7-2 The PC or Mobile Device Connect to the Camera through WLAN The steps to start the camera are listed below: Start the camera according to Sec. 7.1. After the camera is running, moving the ...

  • Page 8: Connecting Camera To The Pc With Gigabit Ethernet Port (Coming Soon)

    PC manually and ensure their IP addresses are in the same net. The subnet mask and gateway of the camera and PC must be the same. Figure 7-3 Connecting the H4KFWSD08DPX Camera with Ethernet Cable to the PC Start the camera according to Sec. 7.1 after the camera is running, clicking the ...
  • Page 9 Camera IP PC’s IP After the above configurations are finished, user can connect the H4KFWSD08DPX camera to the computer through the USB to Ethernet adapter as shown below: Connect the GE port with the Ethernet cable to the PC’s network port;...

  • Page 10: Connecting Multi-Cameras To The Router Through The Ge Port/Wlan Sta Mode For The Network Application

    GE/WLAN STA mode. If a router with GE/WLAN capability is used, users could connect the router with Ethernet cable/WLAN and control the camera. Figure 7-6 Multi H4KFWSD08DPX Cameras Connecting to the Router through the Gigabit Ethernet Port/WLAN Style The connection and configuration are just the same as in Sec.7.1 or Sec. 7.3. But ...
  • Page 11 H4KFWSD08DPX User Manual Or start the camera according to Sec. 7.1. After the camera is running, moving the  mouse to the bottom of the UI and clicking the button on the Camera Control Toolbar at the bottom of the video window, a small window called...
  • Page 12 H4KFWSD08DPX User Manual Install the DeltaPix InSIght software on your PC. Alternatively, install the free  4KView App on the android mobile device. Plug the Ethernet cable into the camera’s port and the other end to the PC (for ...
  • Page 13 Camera List page. Note on data security The data transfer of the H4KFWSD08DPX camera in LAN or WLAN is not encrypted. Anyone who is connected to the network and has installed the DeltaPix InSight software or 4KView App, can see the live image of all active H4KFWSD08DPX.

  • Page 14: Brief Introduction Of H4Kfwsd08Dpx Ui And Its Functions

    H4KFWSD08DPX User Manual Brief Introduction of H4KFWSD08DPX UI and Its Functions 4KView UI H4KFWSD08DPX UI shown in Figure 8-1 includes a Camera Control Panel on the left of the video window, a Measurement Toolbar on the top of the video window and a Camera Control Toolbar on the bottom of the video window.

  • Page 15: The Camera Control Panel On The Left Side Of The Video Window

    H4KFWSD08DPX User Manual The camera control panel on the left side of the video window Camera Control Panel controls the camera to achieve the best video or image quality according to the specific applications; It will pop up automatically when the mouse...

  • Page 16: The Measurement Toolbar On Top Of The Video Window

    H4KFWSD08DPX User Manual The Measurement Toolbar on top of the video window Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the...
  • Page 17 H4KFWSD08DPX User Manual Scale Bar Arrow Execute Calibration to determine the corresponding relation between magnification and resolution, which will establish the corresponding relationship between measurement unit and the sensor pixel size. Calibration needs to be done with the help of a micrometer. For...

  • Page 18: Icons And Functions Of The Synthesis Camera Control Toolbar At The Bottom Of

    H4KFWSD08DPX User Manual Icons and functions of the Synthesis Camera Control Toolbar at the bottom of the video window Icon Function Icon Function Zoom In the Video Window Zoom Out the Video Window Horizontal Flip Vertical Flip Video Freeze Display...
  • Page 19 H4KFWSD08DPX User Manual Dynamic host control protocol allows DHCP server to automatically assign IP information to the camera. Only in Sec 6.4 LAN networking DHCP this item should be checked, so that cameras can automatically get IP information from routers/switches to facilitate networking operation;...
  • Page 20 H4KFWSD08DPX User Manual Figure 8-6 Manual DHCP and Multicast 5.4.3 Setting>Network>WLAN WiFi Mode AP/STA mode to select; Channel/SSID Channel for the mode and SSID for the mode. Here, the SSID is the router’s SSID; Password Camera Password for the mode. Router...
  • Page 21 H4KFWSD08DPX User Manual Color Used for defining color of the lines for calibration; EndPoint Type: Used for defining shape of the endpoints of lines for calibration: Null means no EndPoints, rectangle means rectangle type of endpoints. It makes alignment more easily;...
  • Page 22 H4KFWSD08DPX User Manual Method Layered Mode: The measurement objects are saved in different layer with current image data in the target file. User could edit the measurement objects in the target file with some software on the PC. This mode is reversable.
  • Page 23 H4KFWSD08DPX User Manual 5.4.9 Setting>Language Figure 8-12 H4KFWSD08DPX Comprehensive Setting of Language Selection Setting Page English Set language of the whole software into English; Simplified Set language of the whole software into Simplified Chinese; Chinese Traditional Set language of the whole software into Traditional Chinese;...

  • Page 24: Sample Photos Captured With H4Kfwsd08Dpx Series Camera

    H4KFWSD08DPX User Manual Sample Photos Captured with H4KFWSD08DPX Series Camera Rabbit Emdryo captured H4KFWSD08DPX Ovary Captured with H4KFWSD08DPX 22 / 26...
  • Page 25 H4KFWSD08DPX User Manual Cotton Stem captured with H4KFWSD08DPX Taste Bad Captured with H4KFWSD08DPX 23 / 26...
  • Page 26 H4KFWSD08DPX User Manual MK54-40 Corn Leaf 24 / 26...
