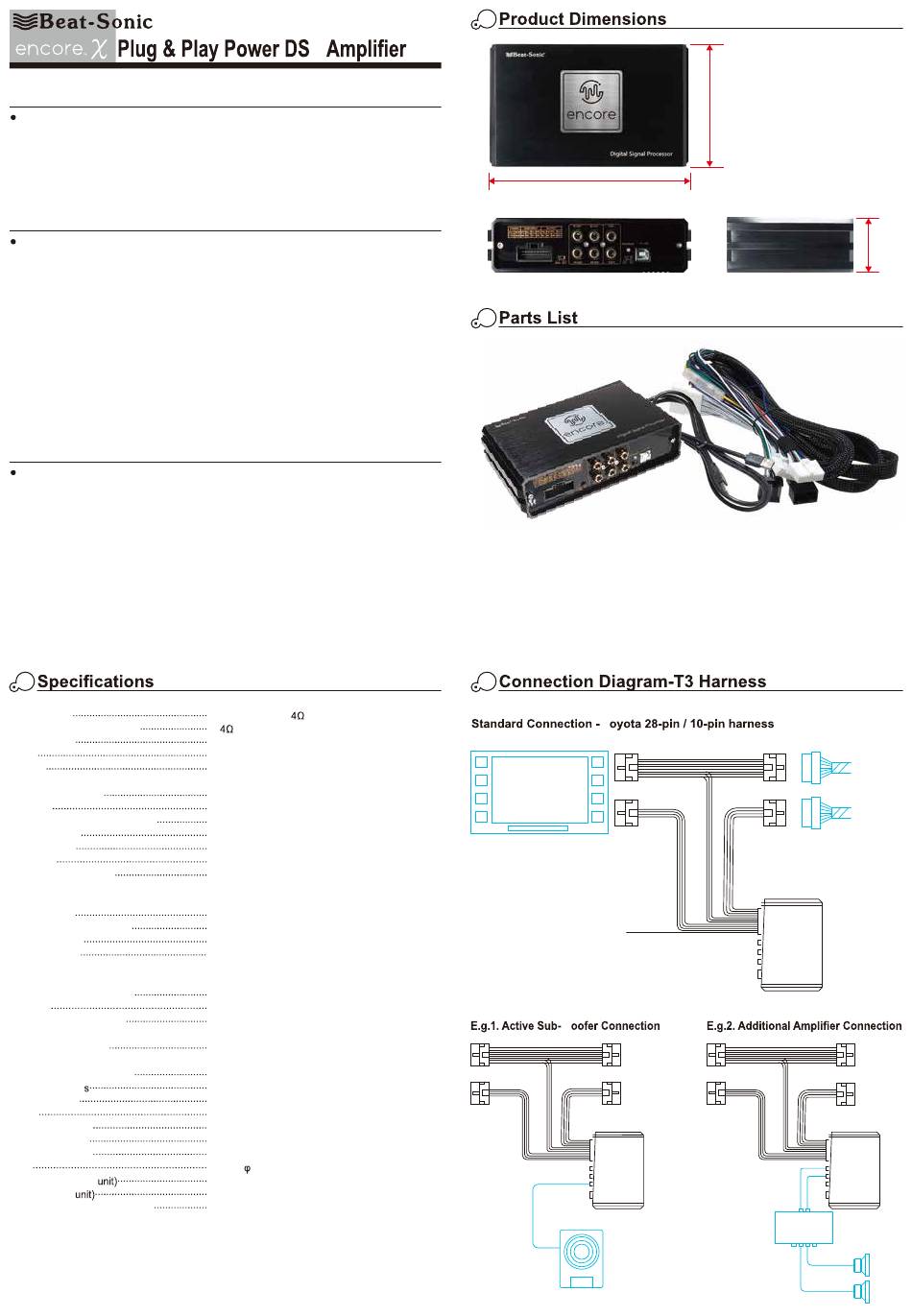

Beat-Sonic encore X Quick Start Manual

Thank you for purchasing the Beat-Sonic encore X Plug & Play DSP Power Amplifier.
Please read this manual carefully prior to installing this product to ensure correct operation.
FEATURES
- High performance Digital Signal Processor (DSP).
- Class AB high efficiency 4ch x45W car audio amplifier.
- Precision sound adjustment using the dedicated DSP sound controller tool.
- Time alignment & SPL adjustable 4ch speaker output / 6ch RCA output.
- 31 band fully adjustable equalizer.
- Easy to install plug & play installation.
- Retains factory head unit, speakers and connectors.
IMPORTANT
- This product is installed using the factory harness connectors, however there are multiple
factory harness connectors of the same size and shape. Do not plug into the wrong connector
or serious damage may result. Contact Beat-Sonic if unsure.
- Check the Beat-Sonic website for the latest vehicle compatibility information before installing.
- Ensure all factory head unit audio settings (balance, fader, equalizer etc.) are set to the factory
default settings such as OFF and/or flat.
- Adjusting the factory head unit audio settings such as balance, fader equalizer etc. will reduce
sound quality when used with this product.
- Factory option independent front / rear seat audio controls, where installed, will not function.
- This product has been optimized to work with the factory head unit and factory speakers.
Replacing with aftermarket speakers and/or an aftermarket head unit will require re-tuning of
the equalizer settings via the PC installed DSP sound controller tool.
- Turn on / turn off pop noise may be audible in some installations. This is not a defect.
Changing the power timing switch to "HIGH" can reduce or eliminate turn on pop noise.
- Turn off power before connecting/disconnecting RCA cables.
PRECAUTIONS
- This amplifier is suitable for negative ground 12V DC operation only.
- Wrap cables in protective electrical tape when routing near metal brackets and sharp edges.
- Do not install main unit or harness near moving mechanisms such as the steering column, seat
rails, pedals etc. Do not install near heater vents or near sources of heat.
- Do not install this product where it may get wet or in areas where it is likely to get dusty or dirty.
- Do not install in close proximity to the head unit or radio antenna cable to avoid risk of radio
interference.
- Do not open, disassemble or modify this product.
- Ensure the car battery is in good condition. A weak battery will cause reduced power output
and reduced sound quality.
1
Output power
Nominal speaker impedance
Amplifier class
Inputs
Outputs
Frequency response
S/N ratio
Total Harmonic Distortion (THD)
DSP resolution
Sampling rate
Crossover
Crossover type (slope)
Phase control
Equalizer frequency range
Equalizer mode
Equalizer band
Equalizer adjustment range
Q factor
Time alignment - distance
Time alignment - time
Time alignment increments
Storeable preset
Remote output
Power
Operating voltage
Max current draw
Quiescent current
Fuse
Dimensions (main
Weight (main
System requirements (PC only)
P
4 x 45 Watts @ (14.4V)
Class AB
4 x high level speaker input
4 x speaker output
6 x RCA (2.2V p-p)
20Hz-22kHz (+0/-1dB)
105dB
0.01%
24bit
48kHz
Bypass, Bandpass, Lowpass, Highpass
Butterworth (6, 12, 18, 24, 36, 48dB/Oct)
Bessel (6, 12, 18, 24, 36, 48dB/Oct)
Linkwitz Riley (12, 24, 36, 48dB/Oct)
0/180 deg.
20Hz-22kHz (max. 31 bands)
Parametric & Graphic
1ch/2ch: 31 band
3ch/4ch: 15 band
5ch/6ch: 9 band
-15dB ~ +15dB
0.3 ~ 50.0
0 ~ 204cm
0 ~ 136cm (sub-woofer / center speaker)
0 ~ 6ms
0 ~ 4ms (sub-woofer / center speaker)
0.021ms / 6.8mm
6
DC 12V (max. 100mA)
DC 12V
10V ~ 15V
15A
350mA
15A ( 5.2×30mm)
700mm x 103mm x 45mm
625gm
Windows 7 or later
USB Type-A
2
NO:000001
( T3 )
3
・ DSP amplifier main unit
・ Vehicle connection harness (2m / 6.5 ft)
・ USB cable - Type A to Type B (approx. 1.35m / 3.3 ft)
・ Carpet mounting tape (10cm×2pcs)
・ Double sided tape x 2pcs
・ Instruction manual
4
Factory
Head Unit
W
103mm
170mm
T
28-pin connector
10-pin connector
(Blue) remote out
DSP
Amplifier
Active
Sub-Woofer
45mm
Factory
28-pin
connector
Factory
10-pin
connector
DSP
Amplifier
DSP
Amplifier
Additional
Amplifier
