Indoor Temperature/Humidity Sensor
Operation
for HP2550/3500
Manual
Model: WN32P

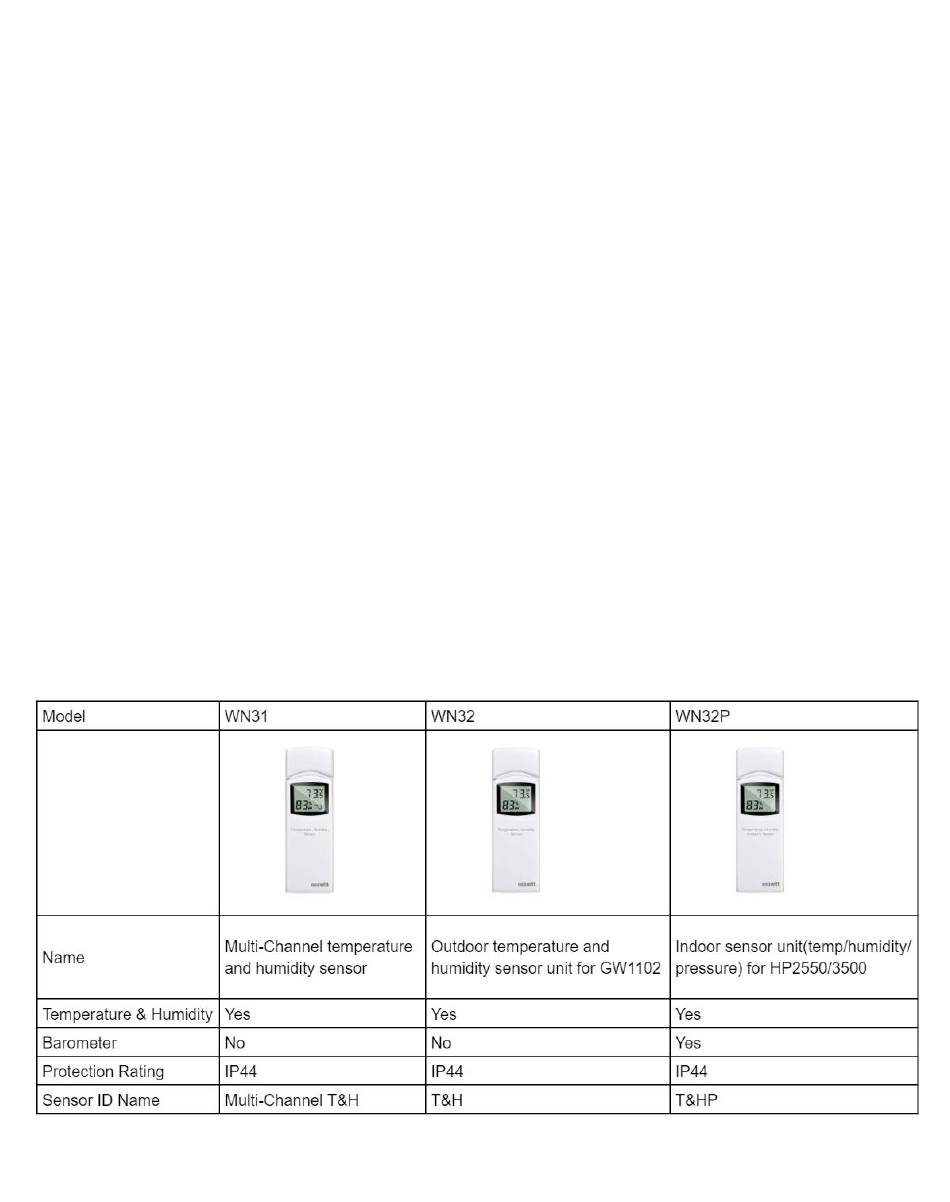

If you need more than one such sensor, please check
on WN31 ( the multichannel general purpose
temperature/humidity sensor, 8 such sensor can be
supported at most). This WN32P sensor is a dedicated
indoor temperature/humidity with barometer for
HP2550/HP3500 console use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WN32P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ECOWITT WN32P

  • Page 1 If you need more than one such sensor, please check on WN31 ( the multichannel general purpose temperature/humidity sensor, 8 such sensor can be supported at most). This WN32P sensor is a dedicated indoor temperature/humidity with barometer for HP2550/HP3500 console use.
  • Page 2 *Please scan the QR code to read English manual and keep it for future reference *Bitte scannen Sie den QR-Code zudeutsche Anleitung lesen und aufbewahren füZukunftsbezug *Si prega di scansionare il codice QR perleggi il manuale italiano e conservalo perReferenza futura Instruction manuals https://s.ecowitt.com/7XJM6A...
  • Page 3 Help Our product is continuously changing and improving, particularly online services and associated applications. To download the latest manual and additional help, please contact our technical support team: support@ecowitt.com support.eu@ecowitt.net (EU/UK)
  • Page 4: Table Of Contents

    Table of Contents 1 UNPACKING ..........4 2 OVERVIEW ..........6 2.1 I ........6 NDOOR SENSOR 2.2 F ..........7 EATURES 3 SET UP GUIDE ........10 3.1 I ....10 NDOOR ENSOR 3.1.1 Sensor Placement..... 12 4 SPECIFICATIONS ........15 5 VIEW LIVE AND ONLINE DATA WITH HP2551 ............
  • Page 5: Unpacking

    Unpacking Open your weather station box and inspect that the contents are intact (nothing broken) and complete (nothing missing). Inside you should find the following: Item Description Indoor sensor unit(temp/humidity/pressure) User manual (this manual) Table 1: Package content If components are missing from the package, or broken, please contact customer service to resolve the issue.
  • Page 6 Note: Batteries for the outdoor sensor package are not included. You will need 2 AA size batteries, alkaline or Lithium batteries (Lithium recommended for colder climates)
  • Page 7: Overview

    2 Overview 2.1 Indoor sensor Figure 1: Indoor sensor 2 display variations indoor sensor will display indoor temperature, humidity and barometric pressure alternately.
  • Page 8: Features

    Note: The optional device can be purchased separately. If more info needed, please visit our website: http://www.ecowitt.com. Make sure to select the model of the units with the same RF frequency as your gateway (the frequency is different for various countries because of...
  • Page 9 Note: To pair the optional sensors with the HP2551 console, please follow the below operations: Place the optional sensor next to the console(keep 5-10ft away from each other). Install batteries on the sensor and wait for 1-2 minutes. Check whether the console will pick up the sensor data automatically and display it on the screen If not, press the gear icon and go to Setup...
  • Page 10 Once successfully, you may return to the main interface to check the data. If you know exactly the sensor ID, and want console to pair that sensor only, you may enter the sensor ID, and save the change to make it effect.
  • Page 11: Set Up Guide

    3 Set up Guide 3.1 Indoor Sensor Set Up Note: To avoid permanent damage, please take note of the battery polarity before inserting the batteries. Looking at Figure 12 from left to right the left-most (or bottom) battery is to be installed with its + terminal pointing down, and the other battery with its + terminal pointing up.
  • Page 12 Figure 2: Indoor sensor battery(not included) installation...
  • Page 13: Sensor Placement

    3.1.1 Sensor Placement The best mounting location for the indoor sensor is in a location that never receives direct sunlight, not even through windows. Also, do not install in a location where a nearby radiant heat source (radiator, heaters, etc.) will affect it. Direct sunlight and radiant heat sources will result in inaccurate temperature readings.
  • Page 14 To mount or hang the unit on a wall or wood beam: Use a screw or nail to affix the remote  sensor to the wall, as shown on the left side of Figure 3  Hang the remote sensor using a string, as shown in right side of Figure 16 Figure 3: Indoor sensor mounting...
  • Page 15 Note: Make sure the sensor is mounted vertically and not lying down on a flat surface. This will insure optimum reception. Wireless signals are impacted by distance, interference (other weather stations, wireless phones, wireless routers, TVs and computer monitors), and transmission barriers, such as walls. In general, wireless signals will not penetrate solid metal and earth (down a hill, for example).
  • Page 16: Specifications

    4 Specifications Model: WN32P Name:Indoor sensor unit (temp/humidity/ pressure ) Dimensions: 122.3×42×18(mm) Screen Size: 21.8×26.1(mm) Weight: 45(g) Material of Plastic Casing: ABS Material of Screen: TN-LCD Temperature Metering Range: -40°C to 60°C(-40℉ to 140 ℉) Temperature Metering Accuracy: ±0.2°C(±0.4℉) Temperature Metering Resolution: 0.1°C(0.2℉) Humidity Metering Range: 1% to 99% Humidity Metering Accuracy: ±2%...
  • Page 17 Barometric Pressure Metering range: 300 to 1100 hPa (8.85 to 32.5 inHg) Barometric Pressure Metering accuracy: ±1.5hpa(absolute pressure ); ±2hpa(relative pressure) Barometric Pressure Metering resolution: 0.1 hPa (0.01 inHg) Reading Update Interval: About 60 seconds RF Connection Frequency: 920/915/868/433MHz (depending on local regulations) RF Wireless Range: Over 100 meters (in open areas) Operating Temperature Range of LCD Screen: -10°C to 50°...
  • Page 18: View Live And Online Data With Hp2551

    HP2551 Figure 4: Indoor sensor reading on dashboard Usually the HP2551 will automatically search for WN32P's signal and receive data to display on the dashboard Figure 4 when WN32P is powered on. Otherwise you will need to manually enter the ID from the device(the ID...
  • Page 19 WN32P) on the sensor ID page Figure 5. Figure 5: Indoor sensor reading on page sensor ID...
  • Page 20 WN32P is the “T&HP” sensor, the “T&H”means temperature and humidity, and the “P” means pressure. Figure 6: Indoor sensor reading on ecowitt APP...
  • Page 21: Warranty Information

    When the Wi-Fi configuration is done, you can view the live data of your sensor on the web page (ecowitt.net) or WS View Plus/ Ecowitt App. 6 Warranty Information We disclaim any responsibility for any technical error or printing error, or the consequences thereof.
  • Page 22 and only to the original purchaser of this product. To receive warranty service, the purchaser must contact us for problem determination and service procedures. This limited warranty covers only actual defects within the product itself and does not cover the cost of installation or removal from a fixed installation, normal set-up or adjustments, or claims based on misrepresentation by the seller,...
