Agrimate AM LS 522 User Manual

Gasoline engine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

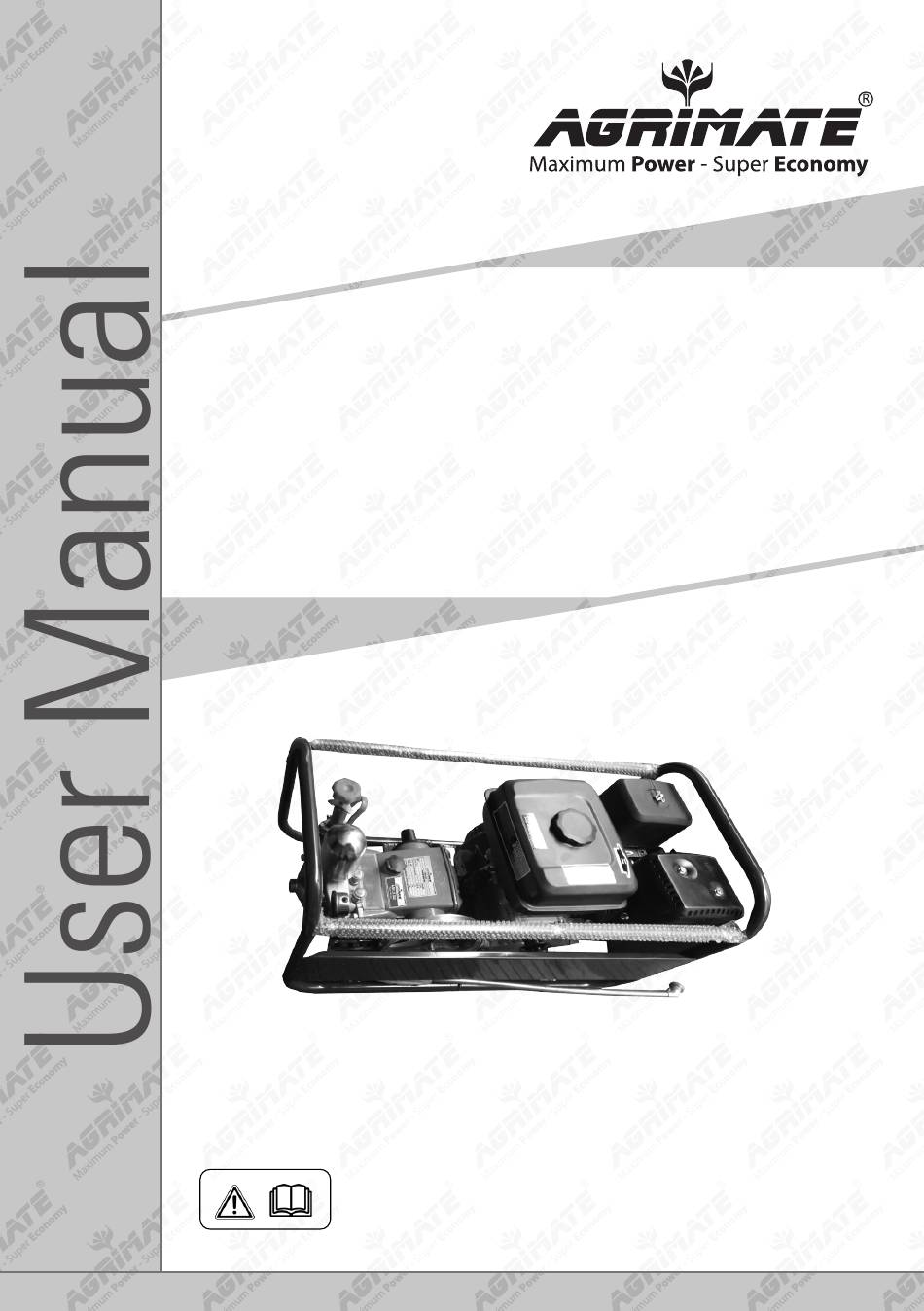

AM LS 522 with AM 160PE
Gasoline Engine
DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE
SUBJECT TO CHANGE WITHOUT NOTICE
BEFORE OPERATING THIS MACHINE,
PLEASE READ THESE INSTRUCTIONS CAREFULLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM LS 522 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Agrimate AM LS 522

Summary of Contents for Agrimate AM LS 522

  • Page 1 AM LS 522 with AM 160PE Gasoline Engine DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE BEFORE OPERATING THIS MACHINE, PLEASE READ THESE INSTRUCTIONS CAREFULLY...
  • Page 2 INTRODUCTION Please peruse the contents in the instruction manual prior to use this machine, correctly carried out installation and debugging, as well as used it strictly cording to the working specifica- tion in the instruction manual. The user should be familiar with the safety notices, machine performance, and maintenance, etc.

  • Page 3: Technical Parameters

    TECHNICAL PARAMETERS AM LS 522 - POWER SPRAYER 500-900 Flow (L/Min) 10-15 Working Pressure (Kgf/cm 20-35 Power (HP) Piston Dia (mm) Stroke (mm) A Quality Product - Taiwan Joint Venture TROUBLE ANALYSIS Trouble Cause Solution Strainer Assy blocked Clean Strainer Assy Can’t...

  • Page 4: Maintenance And Service

    MAINTENANCE AND SERVICE Replace the oil after begin use for 40 hours, and thence replace it one time using each 70 hours; Add grease one time each two hours during using; After each work finished, operate it with clean water for 2 ~ 3 minutes to eliminate the residual chemical and keep each parts clean;...
  • Page 5 SPARE PARTS DIAGRAM OF AM LS 522 POWER SPRAYER...
  • Page 6 SPARE PARTS OF AM LS 522 POWER SPRAYER SL. NO. PARTS NAME SL. NO. PARTS NAME AM LS 522 01 Crank Case AM LS 522 23 O-Ring26x2 AM LS 522 02 Ring CrankCase AM LS 522 24 Grease Ring AM LS 522 03...
  • Page 7 SPARE PARTS OF AM LS 522 POWER SPRAYER SL. NO. PARTS NAME SL. NO. PARTS NAME AM LS 522 44 Box WaterSeal AM LS 522 61 Wing Net AM LS 522 45 Under Metal AM LS 522 62 Brass Cup...
  • Page 8 AM 160PE Gasoline Engine...

  • Page 9: Safety Precautions

    SUMMARY 160PE GENERAL GASOLINE ENGINE with single –cylinder, 4-stroke,OHV air-forced cooling is very useful and popular. SAFETY PRECAUTIONS ! Warning: The machine may be mangled or cause accident if not following the under- mentioned item: a. Strictly prohibit run the machine under neither overcharge, over-rev nor low-charge, low-rev.

  • Page 10: Operation

    OPERATION 1. Preparation before operation a. Check the connection of each parts, ensure they are in order. b. Open the crankcase cover, then inject the gasoline. c. Pull the handle-recoil, see if the pressure in the cylinder is natural. 2. Starting a.

  • Page 11: Technical Specification

    TECHNICAL SPECIFICATION GENERAL GASOLINE ENGINE MODEL AM 160PE TYPE 25°, Single cylinder, Four-stroke, Forced Air-cooling, Cylinder center inclined 25°, OHV BORE*STROKE 60mm*42mm COMPRESSION RATIO 8.5:1 DISPLACEMENT 118cc RATED OUTPUT POWER KW / 3600rpm MAXIMUM OUTPUT TORQUE 7.3N.m / 2500±125rpm IDLE SPEED 1400±100rpm CRANKSHAFT ROTATING DIRECTION counter-clockwise (View from power output side)
  • Page 12 SPARE PARTS DIAGRAM OF AM 160PE GASOLINE ENGINE PART 1 CRANKCASE PARTS (No oil sensor)-A S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM-160PE-A1 Crankcase body AM-160PE-A12 Bolt AM-160PE-A2 Sway bar AM-160PE-A13 Centrifugal gear parts AM-160PE-A3 Washer, Slip cap AM-160PE-A13.1 Washer, Slip cap AM-160PE-A4 Split clip...
  • Page 13 SPARE PARTS DIAGRAM OF AM 160PE GASOLINE ENGINE PART 2 CRANSHAFT PARTS(No oil sensor)-B S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM-160PE-B1 Flywheel ass. AM-160PE-B6.1 Ignition coil AM-160PE-B2 Flywheel fan AM-160PE-B6.2 Stop lead AM-160PE-B3 Starter sleeve AM-160PE-B6.3 Spark plug cap AM-160PE-B4 Nut, Flywheel ass.
  • Page 14 SPARE PARTS DIAGRAM OF AM 160PE GASOLINE ENGINE PART 3 CRANKASE COVER PARTS-C S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM-160PE-C1 Crankcase cover AM-160PE-C5.2 Seal, Oil gauge AM-160PE-C2 Oil seal AM-160PE-C6 Bolt AM-160PE-C3 Ball bearing AM-160PE-C7 Oil plug ass. AM-160PE-C4 Gasket, Crankcase AM-160PE-C7.1...
  • Page 15 SPARE PARTS DIAGRAM OF AM 160PE GASOLINE ENGINE PART 4 RECOIL STARTER PARTS-D S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM-160PE-D1 Recoil starter ass. AM-160PE-D1.8 Roller AM-160PE-D1.1 Fan cover AM-160PE-D1.9 Starter spring AM-160PE-D1.2 Pivot bolt AM-160PE-D1.10 Starter cover AM-160PE-D1.3 Ratchet guide AM-160PE-D1.11 Rope...
  • Page 16 SPARE PARTS DIAGRAM OF AM 160PE GASOLINE ENGINE PART 5 CYLINDER HEAD PARTS-E S.N. PART NO. DESCRIPTION AM-160PE-E1 Gasket, Cylinder head AM-160PE-E2 Set pin AM-160PE-E3 Bolt AM-160PE-E4 Stud, Exhaust port AM-160PE-E5 Stud, Intake port AM-160PE-E6 Cylinder head ass. AM-160PE-E7 Gasket, cylinder head cover AM-160PE-E8 Cylinder head cover AM-160PE-E9...
  • Page 17 SPARE PARTS DIAGRAM OF AM 160PE GASOLINE ENGINE PART 6 CAMSHAFT PARTS-F S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM-160PE-F1 Camshaft ass. AM-160PE-F9 Rocker ass. AM-160PE-F2 Tappet AM-160PE-F9.1 Stud, Rocker ass. AM-160PE-F3 Pusher AM-160PE-F9.2 Rocker AM-160PE-F4 Pusher guide AM-160PE-F9.3 Adjust nut, sphere AM-160PE-F5 Intake valve...
  • Page 18 SPARE PARTS DIAGRAM OF AM 160PE GASOLINE ENGINE PART 7 PISTON PARTS-G S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM-160PE-G1 Connecting rod ass. AM-160PE-G5 Piston ring ass. AM-160PE-G1.1 B olt, Connecting rod AM-160PE-G5.1 First air ring AM-160PE-G1.2 Cover, Connecting rod AM-160PE-G5.2 Second air ring AM-160PE-G1.3...
  • Page 19 SPARE PARTS DIAGRAM OF AM 160PE GASOLINE ENGINE PART 8 SPEED ADJUSTMENT BASE PARTS-H S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM-160PE-H1 Speed adjustment base parts AM-160PE-H4 Fine adjustment spring AM-160PE-H1.1 Speed adjustment base ass. AM-160PE-H5 Pulling rod AM-160PE-H1.2 Adjustment spring AM-160PE-H6 Quadrate bolt AM-160PE-H1.3 Adjustment screw...
  • Page 20 SPARE PARTS DIAGRAM OF AM 160PE GASOLINE ENGINE PART 9 CARBURETOR PARTS-J...
  • Page 21 SPARE PARTS DIAGRAM OF AM 160PE GASOLINE ENGINE PART 9 CARBURETOR PARTS-J S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM-160PE-J8 Carburetor ass. AM-160PE-J8.9.2 Needle valve AM-160PE-J8.1 Carburetor body AM-160PE-J8.9.3 Spring, Needle valve AM-160PE-J8.2 Throttle valve ass. AM-160PE-J8.10 Main jet AM-160PE-J8.2.1 Throttle valve cap AM-160PE-J8.11...
  • Page 22 SPARE PARTS DIAGRAM OF AM 160PE GASOLINE ENGINE PART 10 AIRCLEANER PARTS (Oil bath type) - K S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM-160PE-K1 Air cleaner ass. AM-160PE-K1.4 Foam filter AM-160PE-K1.1 Air cleaner seat ass. AM-160PE-K1.5 Foam filter case AM-160PE-K1.1.1 Air cleaner seat AM-160PE-K1.6...
  • Page 23 SPARE PARTS DIAGRAM OF AM 160PE GASOLINE ENGINE PART 11 MUFFLER PARTS - M S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM-160PE-M1 Muffler ass. AM-160PE-M1.5 Washer AM-160PE-M1.1 Muffler body AM-160PE-M2 Washer AM-160PE-M1.2 Protector, muffler AM-160PE-M3 Spring AM-160PE-M1.3 Screw AM-160PE-M4 AM-160PE-M1.4 Spring washer AM-160PE-M5...
  • Page 24 SPARE PARTS DIAGRAM OF AM 160PE GASOLINE ENGINE PART 12 FUEL TANK PARTS - N...
  • Page 25 SPARE PARTS DIAGRAM OF AM 160PE GASOLINE ENGINE PART 12 FUEL TANK PARTS - N S.N. PART NO. DESCRIPTION AM-160PE-N1 Fuel tank ass. AM-160PE-N1.1 Fuel tank cover ass. AM-160PE-N1.1.1 Fuel tank cover AM-160PE-N1.1.2 Rubber seal, Fuel tank cover AM-160PE-N1.2 Fuel filter ass. AM-160PE-N1.2.1 Support, Fuel filter AM-160PE-N1.2.2...

  • Page 26: Inspection And Maintenance

    INSPECTION & MAINTENANCE For safety use, make sure the machine is cleaned every three-months. Before working, make sure to inspect the filter and the nozzle,and ensure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine needs to be repaired in the guarantee period, please return the machine to the shop.
  • Page 27 CUSTOMER COPY Purchaser’s Name & Address Date of Delivery Dealer’s Office Seal Product Name AM LS 522 with AM 160PE Gasoline Engine Product Serial No. Dealer Sign Customer Sign. Invoice / DN No. I/We accept the terms and conditions of Warranty as in the Warranty Card.
  • Page 28 1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement.
  • Page 29 I S O 9 0 0 1 - 2 0 1 5 I S O 9 0 0 1 - 2 0 1 5 I S O 9 0 0 1 - 2 0 1 5...
  • Page 30 Small Maintenance. Big Savings. Small Maintenance. Big Savings. Small Maintenance. Big Savings.
  • Page 31 Do’s Don’ts • Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. • It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines.
  • Page 32 I mp o r t e d & Ma r k e t e d b y 9 0 0 1 : 2 0 1 5...
