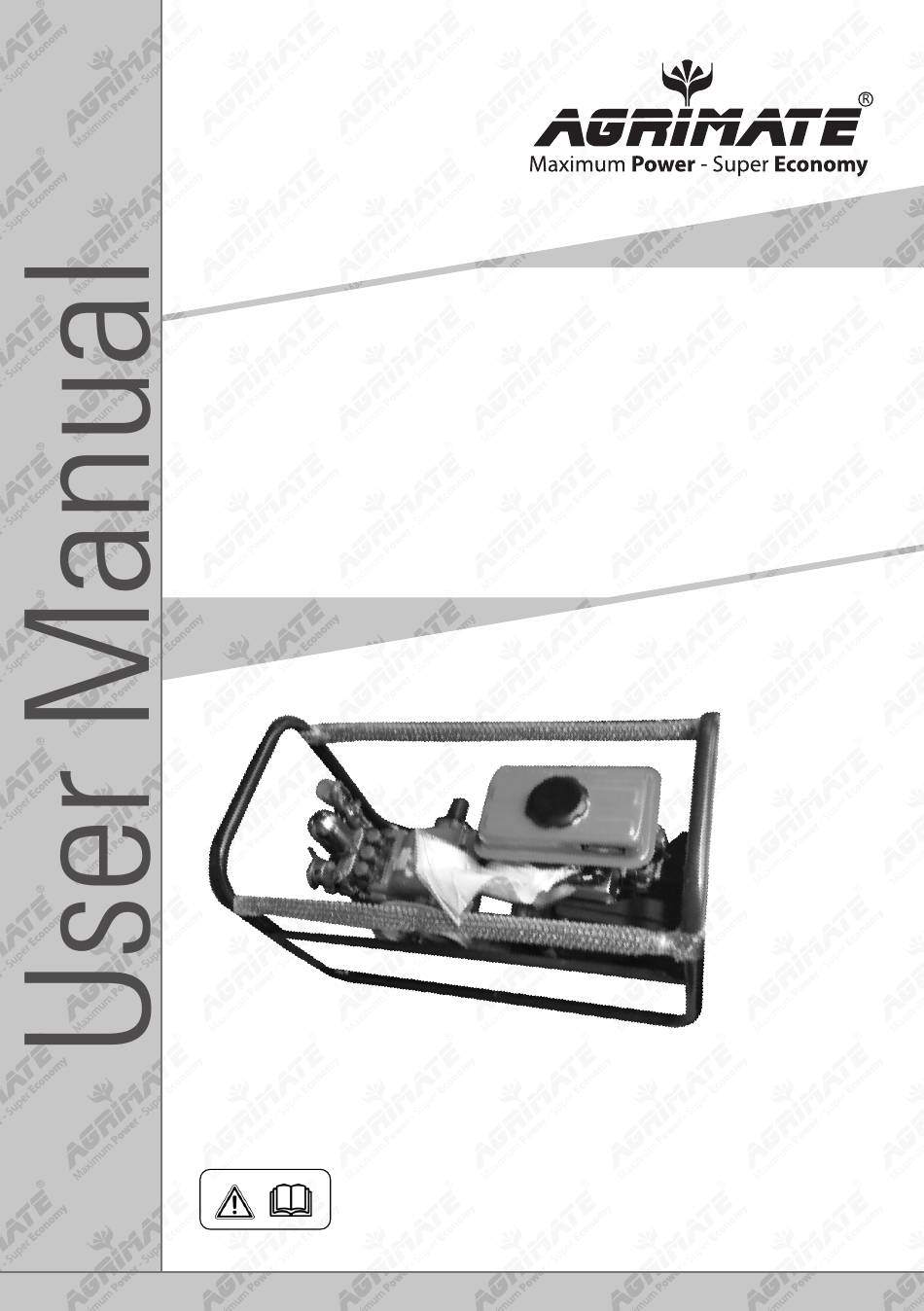

- Page 1 AM LS 518 with AM 152PE Gasoline Engine DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE BEFORE OPERATING THIS MACHINE, PLEASE READ THESE INSTRUCTIONS CAREFULLY...
- Page 2 INTRODUCTION Please peruse the contents in the instruction manual prior to use this machine, correctly carried out installation and debugging, as well as used it strictly cording to the working specifica- tion in the instruction manual. The user should be familiar with the safety notices, machine performance, and maintenance, etc.
-
Page 3: Technical Parameters
TECHNICAL PARAMETERS AM LS 518 - POWER SPRAYER 500-900 Flow (L/Min) 6-10 Working Pressure (Kgf/cm 20-35 Power (HP) Piston Dia (mm) Stroke (mm) A Quality Product - Taiwan Joint Venture TROUBLE ANALYSIS Trouble Cause Solution Strainer Assy blocked Clean Strainer Assy Can’t... -
Page 4: Maintenance And Service
MAINTENANCE AND SERVICE Replace the oil after begin use for 40 hours, and thence replace it one time using each 70 hours; Add grease one time each two hours during using; After each work finished, operate it with clean water for 2 ~ 3 minutes to eliminate the residual chemical and keep each parts clean;... - Page 5 SPARE PARTS DIAGRAM OF AM LS 518 POWER SPRAYER...
-
Page 6: Parts Name
SPARE PARTS OF AM LS 518 POWER SPRAYER SL.NO. PARTS NAME AM LS 518 01 Crank Case AM LS 518 02 Ring CrankCase AM LS 518 03 Cover CrankCase AM LS 518 04 Oil Gauge Plug AM LS 518 05 O-Ring28x2.4... - Page 7 SPARE PARTS OF AM LS 518 POWER SPRAYER SL.NO. PARTS NAME AM LS 518 21 O-Ring21x2.5 AM LS 518 22 Grand AM LS 518 23 O-Ring22x2 AM LS 518 24 Grease Ring AM LS 518 25 V-Packing AM LS 518 26...
- Page 8 SPARE PARTS OF AM LS 518 POWER SPRAYER SL.NO. PARTS NAME AM LS 518 41 Valve AM LS 518 42 Valve Bar AM LS 518 43 Box WaterSeal AM LS 518 44 Under Metal AM LS 518 45 Spring AM LS 518 46...
- Page 9 SPARE PARTS OF AM LS 518 POWER SPRAYER SL.NO. PARTS NAME AM LS 518 61 Brass Cup AM LS 518 62 Overflow Hose AM LS 518 63 Core Strainer AM LS 518 64 Strainer Assy AM LS 518 65 Valve Seal...
- Page 10 AM 152PE Gasoline Engine...
-
Page 11: Safety Precautions
SUMMARY 152PE GENERAL GASOLINE ENGINE with single – cylinder, 4-stroke,OHV air-forced cooling is very useful and popular. SAFETY PRECAUTIONS ! Warning: The machine may be mangled or cause accident if not following the under- mentioned item: a. Strictly prohibit run the machine under neither overcharge, over-rev nor low-charge, low-rev. -
Page 12: Operation
OPERATION 1. Preparation before operation a. Check the connection of each parts, ensure they are in order. b. Open the crankcase cover, then inject the gasoline. c. Pull the handle-recoil, see if the pressure in the cylinder is natural. 2. Starting a. -
Page 13: Technical Specification
TECHNICAL SPECIFICATION GENERAL GASOLINE ENGINE AM model AM152PE Type single–cylinder,4-stroke,OHV air-forced cooling Ignition Non-contact transistorized ignition Lubricate splash Start Recoil ≤450 Fuel consumption (g / kw. h) Discplacement CC Max Power KW(HP)/RPM 1.8kW(2.5)/3600 Rated Power KW(HP)/RPM 1.15kW(1.6)/3600 Bore Stroke mm 52X46 Fuel Tank Capacity L Oil Capacity L... -
Page 14: Crankcase Cover Assy
SPARE PARTS DIAGRAM OF AM 152PE GASOLINE ENGINE CRANKCASE COVER ASSY PART 1 S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM 152PE-A1 Set pin φ8×14 AM 152PE-A13 Seal,oil plug AM 152PE-A2 Gasket,crankcase AM 152PE-A14 Driven gear sub-assy, governor AM 152PE-A3 Drain plug AM 152PE-A15 Driven gear, governor... -
Page 15: Crankcase Assy
SPARE PARTS DIAGRAM OF AM 152PE GASOLINE ENGINE CRANKCASE ASSY PART 3 S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM 152PE-B1 Crankcase AM 152PE-B9 Return pipe AM 152PE-B2 Valve chamber clapboard AM 152PE-B10 Flow guard, lower Sway bar sub- assy AM 152PE-B11 Keeper, sway bar AM 152PE-B3 Stud M5×115... - Page 16 SPARE PARTS DIAGRAM OF AM 152PE GASOLINE ENGINE CRANKSHAFT, PISTON PART 5 CONNECTING ROD S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM 152PE-C1 Crankshaft sub-assy AM 152PE-C10 Circlip, piston pin AM 152PE-C2 Crankshaft AM 152PE-C11 Piston ring set AM 152PE-C3 Woodruff key AM 152PE-C12 Piston ring(I), Piston ring(II)
- Page 17 SPARE PARTS DIAGRAM OF AM 152PE GASOLINE ENGINE COMBINATION OF PART 7 CAMSHAFT & VALVE S.N. PART NO. DESCRIPTION AM 152PE-D1 Camshaft AM 152PE-D2 Washer,Camshaft AM 152PE-D3 Tappet AM 152PE-D4 Intake valve AM 152PE-D5 Exhaust valve AM 152PE-D6 Oil seal, valve stem AM 152PE-D7 Spring seat, Valve AM 152PE-D8...
-
Page 18: Carburetor Assy
SPARE PARTS DIAGRAM OF AM 152PE GASOLINE ENGINE CARBURETOR ASSY PART 9 S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM 152PE-E1 Gasket, intake port AM 152PE-E16 Main nozzle AM 152PE-E2 Carburetor assy AM 152PE-E17 Main jet AM 152PE-E3 Connecting block AM 152PE-E18 AM 152PE-E4 Gasket, carburetor... -
Page 19: Fuel Tank Assy
SPARE PARTS DIAGRAM OF AM 152PE GASOLINE ENGINE FUEL TANK ASSY PART 11 S.N. PART NO. DESCRIPTION AM 152PE-F1 Oil tank combination AM 152PE-F1.1 Oil tank cover AM 152PE-F1.2 Oil tank cover seal AM 152PE-F2 Oil tank AM 152PE-F3 Filter cup AM 152PE-F4 Oil outlet pipe AM 152PE-F5... - Page 20 SPARE PARTS DIAGRAM OF AM 152PE GASOLINE ENGINE CLEANER ASSY PART 13 S.N. PART NO. DESCRIPTION AM 152PE-G1 Cover,air cleaner AM 152PE-G2 Housing, air cleaner AM 152PE-G3 Foam, air cleaner AM 152PE-G4 Bracket, air cleaner AM 152PE-G5 Gasket, air cleaner AM 152PE-G6 Nut M5 AM 152PE-G7...
- Page 21 SPARE PARTS DIAGRAM OF AM 152PE GASOLINE ENGINE MUFFLER PART 15 S.N. PART NO. DESCRIPTION AM 152PE-H1 Gasket,exhaust port AM 152PE-H2 Exhaust muffler AM 152PE-H3 Nut M6...
- Page 22 SPARE PARTS DIAGRAM OF AM 152PE GASOLINE ENGINE RECOIL STARTER PART 17 S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM 152PE-J1 Fan hood sub-assy AM 152PE-J9 Spool, starter AM 152PE-J2 Recoil starter AM 152PE-J10 Grip, starter AM 152PE-J3 Friction spring AM 152PE-J11 Casing AM 152PE-J4...
- Page 23 SPARE PARTS DIAGRAM OF AM 152PE GASOLINE ENGINE GOVERNING CONTROL PART 19 SYSTEM S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AM 152PE-K1 Governor arm AM 152PE-K8 Positioning plate AM 152PE-K2 Pull-rod, governor AM 152PE-K9 Spring, governor AM 152PE-K3 Lock bolt AM 152PE-K10 Wave washer AM 152PE-K4...
- Page 24 SPARE PARTS DIAGRAM OF AM 152PE GASOLINE ENGINE FLYWHEEL PART 21 S.N. PART NO. DESCRIPTION AM 152PE-L1 Fan,flywheel AM 152PE-L2 Starting flange AM 152PE-L3 Flywheel AM 152PE-L4 Nut M12×1.25...
-
Page 25: Ignition Coil
SPARE PARTS DIAGRAM OF AM 152PE GASOLINE ENGINE IGNITION COIL PART 23 S.N. PART NO. DESCRIPTION AM 152PE-M1 Cap, spark plug AM 152PE-M2 Cable, engine stop AM 152PE-M3 Ignition coil sub-assy AM 152PE-M4 Ignition coil AM 152PE-M5 Bolt M6×25 PART 25 ARTS FRAME PARTS PART 25... -
Page 26: Inspection And Maintenance
INSPECTION & MAINTENANCE For safety use, make sure the machine is cleaned every three-months. Before working, make sure to inspect the filter and the nozzle,and ensure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine needs to be repaired in the guarantee period, please return the machine to the shop. - Page 27 CUSTOMER COPY Purchaser’s Name & Address Date of Delivery Dealer’s Office Seal Product Name AM LS 518 with AM 152PE Gasoline Engine Product Serial No. Dealer Sign Customer Sign. Invoice / DN No. I/We accept the terms and conditions of Warranty as in the Warranty Card.
- Page 28 1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement.
- Page 29 ISO 9001-2008 CERTIFIED COMPANY FREE SERVICE COUPON (30 Days / 20 hrs (Which ever is earlier) Model Serial Number AM LS 518 with AM 152PE Gasoline Engine PDI Date Service No. Operations: • Check and Test the Fuel Mixture. • Check and Clean the Air Filter Purchase bill no.
- Page 30 Small Maintenance. Big Savings. Small Maintenance. Big Savings. Small Maintenance. Big Savings.
- Page 31 Do’s Don’ts • Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. • It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines.
- Page 32 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Customer Care: 1800-425-3036 Email: info@ratnagiriimpex.com www.ratnagiriimpex.com AN ISO 9001:2008 CERTIFIED COMPANY...
