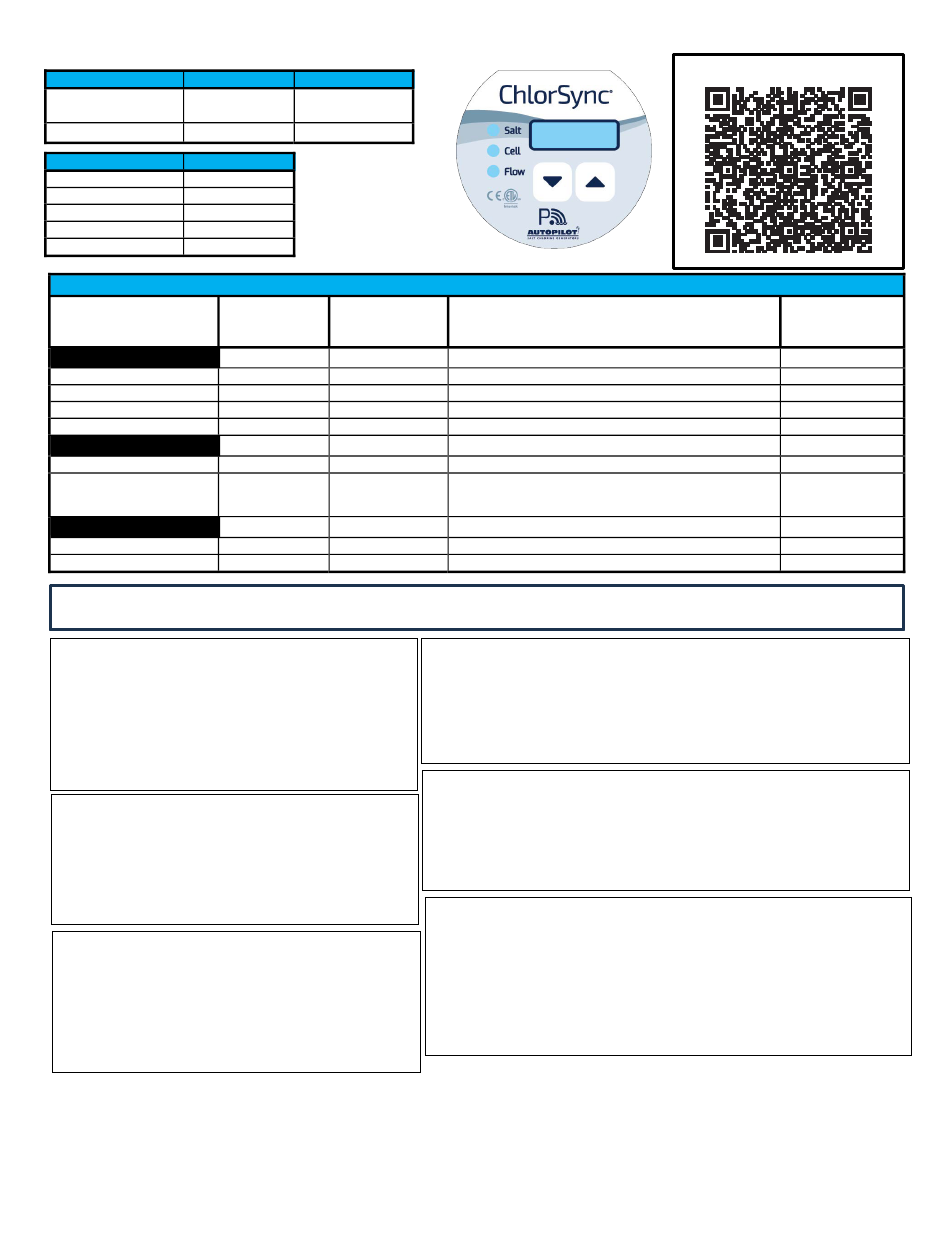

Autopilot ChlorSync Gen II Troubleshooting Manual

Level
Salt
Ideal 4000 ppm (mg/L)
2,700 ppm (mg/L)
20 gpm (4.5 m
Water Flow
Model Output Production/Day
PPC1 1 LB per day
PPC2 1.1 LB per day
PPC3 1.3 LB per day
PPC4 1.5 LB per day
PPC5 2.1 LB per day
Color
Salt LED Indicator:
Green
Green
Red
Red
Cell LED Indicator:
Green
Red
Flow LED Indicator:
Green
Red
Please Note ‐
Before performing any diagnostics or calibration, set the output percentage to 85% or lower.
To ensure a successful test, note the percentage change after each button press.
Calibrate Salt:
Press the
1. Up arrow 3 times.
This will raise salt 100 ppm.
Press the
2. Up arrow 4 times.
This will lower salt 100 ppm.
To reset salt calibration to factory default:
1.
Press up arrrow 10 times,
2.
Then down arrow 10 times.
Salt Check (with PoolSync®):
1. Open the app and select the ChlorSync under the
"EQUIPMENT" options
2. Press the 3‐dot menu on the ChlorSync page
3. Select SALT,
 A pop‐up window will prompt to "REMEASURE SALT".
4. Select Ok.
Self Diagnositcs (from Power Center):
1. Press the up arrow 5 times,
2.
Then press down arrow 5 times.
‐ GEN II ‐ FW Rev
‐ Volts, ‐ Water Temp
‐ Current (Amps) ‐ ATC % offset
Notes:
֎ The salt level is updated every 15 minutes after flow is established.
֎ After the purifier output level is set using the arrow buttons, the unit will automatically make fine output adjustments as the water temperature
fluctuates. This patented temperature compensation feature will adjust output depending on water temperature. Temperature compensation is not
reflected on the display. This is a background process.
ChlorSync Gen II
®
Min. Max.
* 5,000 ppm (mg/L)
3 3
/hr.) 80 gpm (18.2 m /hr.)
* Salt levels above 6000
ppm may experience a
"high current" error.
Status Display
On (solid) Normal
Flashing Normal
On (solid) Lo SALt
Flashing Add SALt
On (solid) Normal
Open Cell,
Flashing
HigH Curr,
Cln CELL
On (solid) Normal
Flashing no FLo
Press the
Down arrow 3 times.
Press the
Down arrow 4 times.
The following will display:
‐ Salt Value
‐ Troubleshooting Guide
INDICATOR LIGHTS
Indication
Salt Level = 2,700 ‐ 5,000 ppm (mg/L) ‐ Recommended
Salt Level > 5,000 ppm (mg/L) ‐ High Salt
Salt Level = 2,300 ‐ 2,700 ppm (mg/L) ‐ Lo Salt, Chlorinator on
Salt Level < 2,300 ppm (mg/L) ‐ Add Salt, Chlorinator off
Normal Operation
Low Conductivity/High Current (Scale formation,
Low Salt, Etc.) or Open Cell
Normal water flow detected
Low or No Water Flow detected
Reverse polarity of self‐cleaning feature:
1. Press the up arrow 7 times, then down arrow 7 times. The indicator for
the direction of current is on the display.
2. The far left digit moves in a clockwise or counter clockwise circle
depending on the which way the current is moving through the cell.
After reversing, the digits will rotate in the opposite direction.
Enable external ORP controller. (Not for use with ChemSync)
1. Press the up arrow 15 times.
2. Press the down arrow 15 times.
3. The display will read: ORP, ctl, and 000 or 100.
4. To disable ORP control press and hold up and the down arrow together
for 10 seconds.
Calibrate Temperature (from Power Center):
1. Press the up arrow 12 times. Press the down arrow 12 times. This will
raise the temperature 1 ° F.
2. Press the up arrow 13 times. Press the down arrow 13 times. This will
lower the temperature 1 ° F.
To reset temperature calibration to factory default:
1. Press up arrow 20 times.
2. Then down arrow 20 times.
For full manual use QR code
Chlorine Generating
Status
ON
ON
ON
OFF
ON
OFF
ON
OFF
LTM1034 rev C (1 of 2)
