FrSky Advanced Engine Suite Instruction Manual

Introduction
Advanced Engine Suite (AES) is a multi-functional management box suitable for application in airplanes
equipped with engines.
Through the VBAT (XT30/PWR) power port, users can use the same battery to power all connected devices,
eliminating the trouble of providing an independent power supply for the ignition control unit. AES also adopts a
safety solution to avoid potential risks caused by interference between the connected ignition and receiver
devices.
The AES module is equipped with a wealth of sensor interfaces, including 2 RPM sensor ports, 1 flowmeter
sensor port, and 5 temperature sensor ports. In addition, AES also provides 2 AD ports, allowing users to flexibly
use different types of AD devices required in your airplane. At the same time, through the FBUS/S.Port feature of
the connected receiver, users can monitor the telemetry data in real-time on the transmitter to know the aircraft's
operating status.

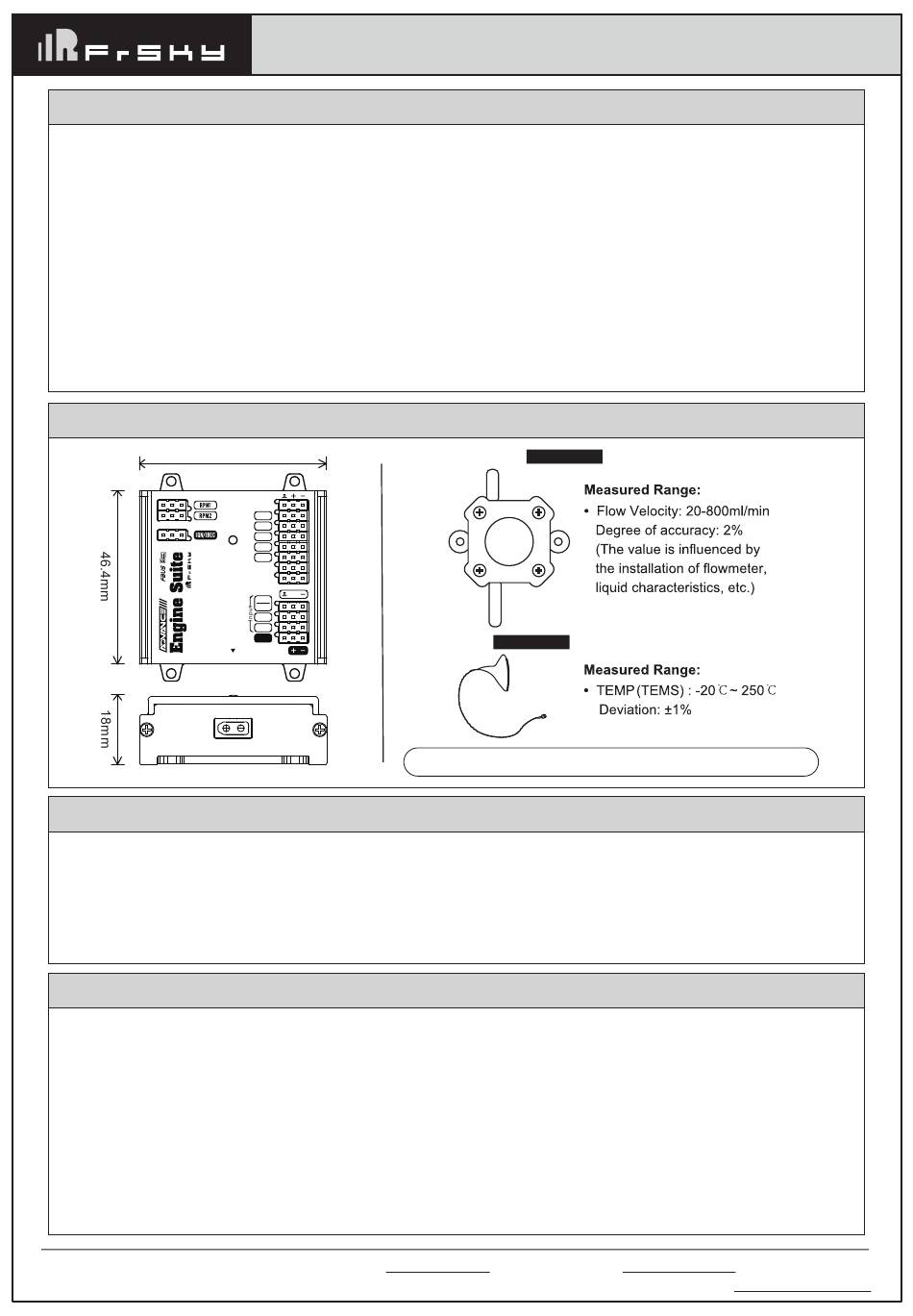

Overview
50mm
Specifications
● Dimension: 50x46.4x18mm (L×W×H)
● Weight: 53.5g
● Battery Voltage Input Range: 4.5-13V
● Battery Input Connector: XT30
● IGN (Ignition Port) Voltage Output Range: 4.5-13V
(Sync with the input voltage settings of VBAT.)
Features
● Battery Eliminator Design for Powering System
● Anti-interference Capability between Ignition & Receiver Parts
● 5 Ports for Temperature Sensors
● 2 Ports for RPM Sensors
● 2 Ports for AD/RPM Sensors
● 1 Port for Flowmeter Sensors
● 1 Powering Port for Receiver
● 1 Powering Port for Ignition Kill Switch Unit
● Signal Input Ports for FBUS/S.Port (Auto Recognization), SBUS, and PWM
● 1 Battery Input Port with XT30 Connector (Input Range: 4.5-13V)
● Real-Time Configuration Capability (by S.Port of ETHOS radio or FBUS capable receivers )
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky Advanced Engine Suite (AES)
FLOW
T1
T2
LED
T3
T4
T5
A1/R3
IGN LED/A2/R4
FBUS
S.Port
SBUS
PWM
PWR
VBAT
www.frsky-rc.com
Flowmeter 03040703
TEMS [04100427]
[Optional Accessory]
Note: Sensors are required to be purchased separately.
● Operating Current: 20mA@5V
● Signal Voltage Level
- RPM1/RPM2 Port: 3V-12V (Requires the
driven current＞5mA)
- Flow Port: 3.3V
- AD1/AD2 Port: 0-3.3V
Contact us : frsky@frsky-rc.com
[Optional Accessory]
